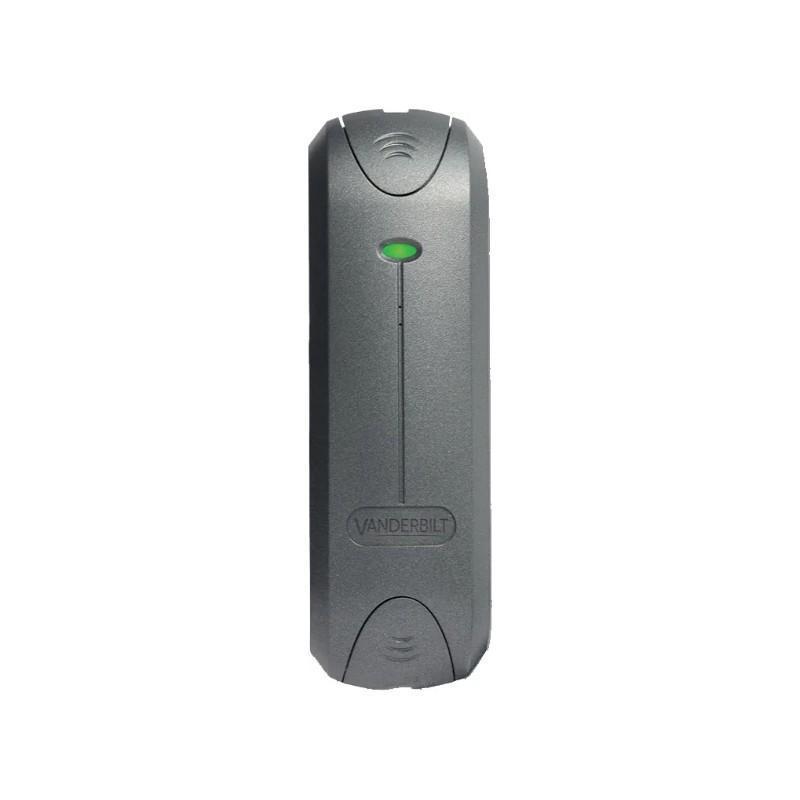

ACTpro EM1030e Mullion Proximity Reader
The ACTpro EM1030e is a compact mullion reader for use with RFID cards and fobs. It forms part of the ACTpro system and works with compatible door controllers and door stations for secure access across your site.
With an IP66 rating, it is suitable for both internal and external doors. The narrow design makes it ideal for installations where space is limited or a discreet reader is required.
Key Product Features:
- MPN: V54504-F141-A100
- Operating voltage: 5–12V DC
- Current consumption: 40mA
- Mullion mounted design for narrow door frames
- Multi-format reader supporting 125kHz RFID credentials
- Compatible with ACTpro access control systems
- IK08 impact rating
- IP66 rated
- Suitable for internal and external use
- Operating temperature: -40°C to +70°C
- Built-in buzzer
- Tri-colour LED indication
- Surface or flush mount
- Polycarbonate housing
- 2m pigtail lead for connection
- Dimensions: 120mm x 37mm x 15mm
- Weight: 189g
Please note that fobs and cards are sold separately.
Discreet Mullion Mounted ACT Proximity Reader
The slim, narrow design makes this ACT 1030 reader ideal for mullion mounting where space is limited and a discreet installation is required. It fits neatly onto door frames without drawing attention, maintaining a clean and unobtrusive appearance.
This makes it well suited to commercial buildings, schools, offices, and residential developments where access control needs to blend with the surrounding environment.
ACTpro 1030e Prox Reader for Controlled Access
Using proximity credentials offers an alternative to PIN-based access. Codes can be shared, forgotten, or misused, while cards and fobs provide a physical method of identification that can be issued and managed per user.
- Issue credentials to authorised users only
- Remove access promptly if a card or fob is lost
- Avoids unauthorised sharing
ACT 125kHz cards and fobs can be used with this reader to provide reliable credential-based access.
Choose the Right Credential for ACT Proximity Card and Fob Reader
This ACT prox reader supports a range of credential types to suit how your building is used:
- Proximity cards can be attached to lanyards
- Key fobs for convenient everyday access are attached to keys
- HID-compatible credentials
For sites where code-based access is preferred, the EM1050e ACT reader with keypad can be used instead and provides both PIN and proximity access.
Integration with ACTpro Access Control Systems
The EM1030e connects to ACTpro controllers such as the 1500 or door stations like the 100.
- Maximum cable distance up to 100m at 12V DC
- Supports parallel connection for entry and exit readers
- Requires a screened cable to connect to the controller or door station
As part of the ACTpro range, this reader is used within a PC-based access control system. For standalone installations, ACT 5 or ACT 10 controllers may be more suitable. For help designing your access control system, whether standalone or networked, contact our technical team for guidance.
