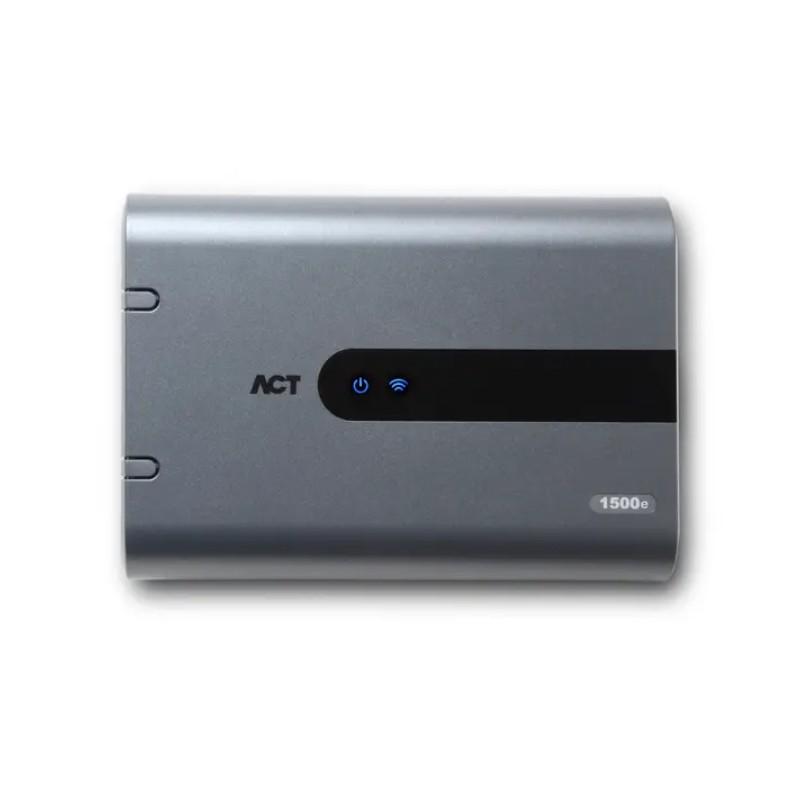

ACTpro-1500 Door Controller

ACTpro 1500 Door Controller for Access Control Systems

The ACTpro-1500 is a single door controller designed for systems where flexibility is essential. It allows you to build an access control system around your site by selecting the right combination of power supply, door stations, readers, and electric locks.

It is ideal for larger installations where multiple doors need to be managed. As a controller-only unit, it gives you greater control over how your system is powered and installed, making it easier to adapt to different buildings. The ACTpro-1520 with integrated PSU is also available as a convenient combined unit.

The ACTpro-1500 runs on ACTpro software, with a free version available for systems of up to 100 doors. A paid version with additional features is available for bigger sites. Contact our team for further information.

Key Product Features:

• MPN: V54502-C111-A100
• ACT pro 1500 single door controller
• Input voltage range: 9-28V DC
• Current consumption: 350mA
• Supports up to 60,000 users
• Supports up to 2,000 user groups
• Dual-port Ethernet switch
• Supports ACTpro-100 and ACTpro-120 door stations
• Expandable up to 32 doors per controller
• Compatible with all ACTpro systems
• Tamper monitoring
• Emergency door release monitoring
• Mains present monitoring
• LED status indicators
• For internal use
• Surface mounted
• Dimensions: 235mm x 165mm x 55mm
• Weight: 0.52kg

Multi-Door Access Control with the ACTpro-1500

The ACTpro-1500 gives you full control over how your access control system is designed. It controls one door directly, and additional doors can be added using ACTpro-100 or ACTpro-120 door stations.

For example, a single door requires one controller, while a two door system would use one controller and one door station. One door controller can manage up to 32 doors in total, making it suitable for both smaller systems and larger multi-door installations.

A wide range of components are compatible, including ACTpro EM1030e prox reader and EM1050e reader with keypad. Electric locking will also need to be incorporated to complete your system.

This approach allows you to create a structured system without being limited by fixed configurations.

Powering the ACTpro-1500 Door Controller

As a controller-only unit, the ACTpro-1500 requires a separate power supply, giving you greater control over how power is distributed across your ACTpro system.

This allows multiple controllers and door stations to be powered from a single, centralised source, helping reduce the number of individual power supplies on site and keeping installations tidy and consistent. It also gives you the flexibility to design your system around your building layout.

When planning your setup, it is important to consider the total current consumption of all connected components to ensure the power supply is correctly specified.

Secure ACTpro Door Controller Placement

The ACTpro-1500 can be installed close to the door or positioned centrally within a secure cabinet or comms room. Positioning the controller on the secure side of the door helps reduce the risk of tampering and keeps critical components protected.

Many sites install one controller per floor or area, with door stations connected to manage the remaining doors. This can simplify wiring, reduce cable runs, and make installation and maintenance easier.

ACTpro 1500 Door Controller for Scalable Access Control

The ACTpro-1500 is an access control door controller that can suit your site. It works well for multi-door systems where installation flexibility is key, by giving you the control to design your system and adapt it as requirements change.

Our expert technical team is available to help you build the right ACTpro access control system for your site. Contact us today.
