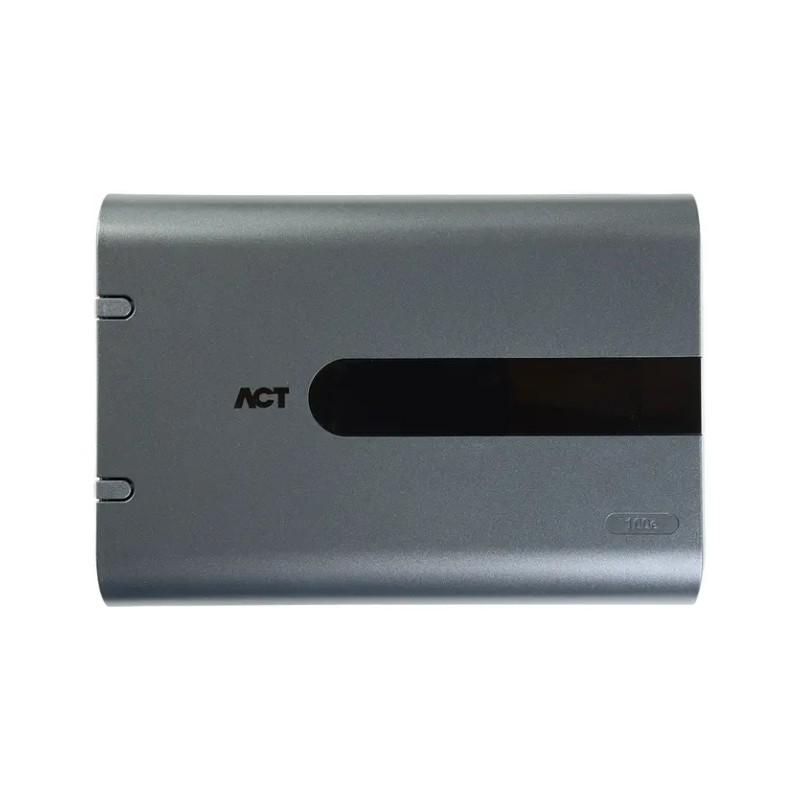

ACTpro 100 Door Station for Multi-Door Access Control
The ACTpro-100 door station is used to add additional doors to an ACTpro access control system. It connects to a door controller such as the 1500 or 1520, allowing you to extend access control across multiple doors using a single software managed system.
This ACT door station does not include a power supply, unlike the ACTpro-120, making it a suitable option for installations where one PSU powers multiple components. It gives you greater control over system design, layout, and long-term planning.
One door station is required per additional door, and a door controller, sold separately, is required for operation.
Key Product Features:
- MPN: V54502-C120-A100
- ACT pro 100 single door station
- Input voltage range: 9-28V DC
- Current consumption: 40-120mA
- Connects to ACTpro controllers via RS485
- Supports system expansion
- Tamper monitoring
- Emergency door release monitoring
- Mains present monitoring
- LED status indicators
- For internal use
- Surface mounted
- Dimensions: 236mm x 165mm x 55mm
- Weight: 0.6kg
Expand Your Access Control System with ACTpro-100 Door Stations
This unit allows you to extend your system beyond the first door. A typical setup uses one controller for the first door, with additional doors connected to it using door stations like the ACTpro-100. One door station is required per additional door, allowing a single controller to manage up to 32 doors in total.
ACT 100 Door Station Installation for Flexible Site Layouts
ACT door stations can be installed at the door or positioned within a central cabinet alongside other system components.
Many setups use one door controller per floor or area, with door stations connected to manage the remaining doors. This can reduce cable runs, simplify installation, and make maintenance easier. This approach works particularly well for larger sites.
Build Your ACTpro Access Control System
The ACTpro-100 must be used with a door controller such as the ACTpro-1500 or ACTpro-1520. The controller manages all access permissions, while the door station enables additional doors to be connected to the system.
It supports a structured system layout, particularly in larger buildings where multiple components may be grouped within a central cupboard.
To complete your ACTpro system, you will typically require:
- Door controllers
- ACTpro software
- Proximity readers such as EM1030e or EM1050e with keypad
- Suitable electric locking hardware for each door
- Power supply units
- Exit buttons and emergency break glass units
- Door closers to ensure doors close securely after each use
ACTpro-100 Door Station for Scalable Access Control
The ACTpro-100 is a reliable choice for access control systems that require flexible expansion and a consistent setup across multiple doors. It allows you to build a system that is organised, scalable, and suited to your building.
For help selecting the right ACTpro door controller and station combination, contact our technical team today.
