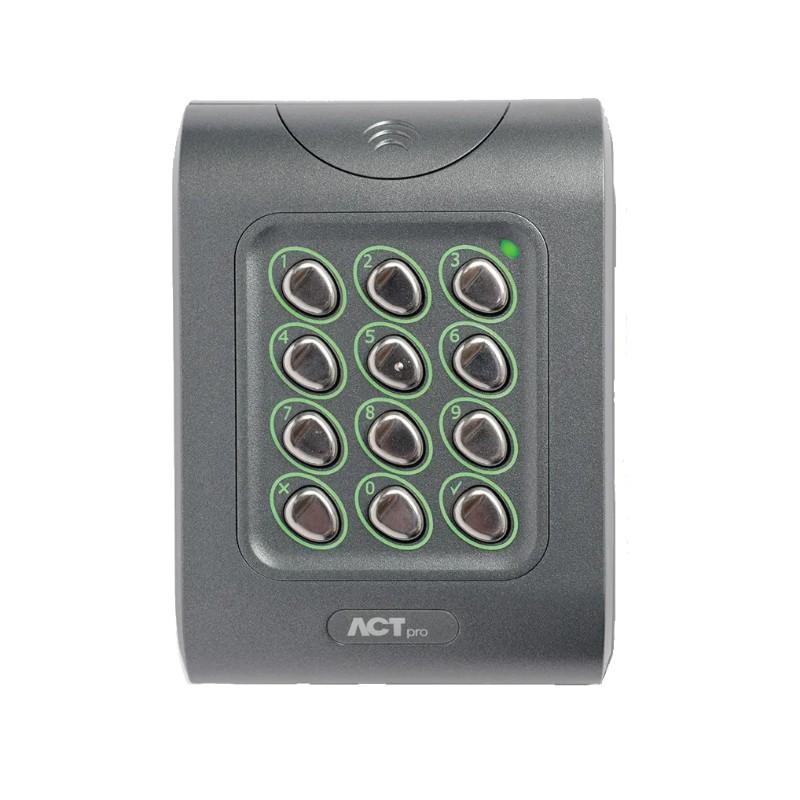

ACTpro EM1050e Keypad with Proximity Reader
The ACTpro EM1050e is a combined proximity reader and keypad designed for secure, flexible access control using RFID credentials, PIN codes, or both. It forms part of the ACTpro system to manage access across your site.
This ACT keypad prox reader is not a standalone unit and requires connection to an ACTpro controller or door station.
With support for both PIN and proximity authentication, the EM1050e allows you to tailor access to suit different users and environments.
Key Product Features:
- MPN: V54504-F143-A100
- Proximity reader with integrated keypad
- Multi-format reader supporting 125kHz RFID credentials
- Supports HID-compatible credentials
- Compatible with ACTpro access control systems
- Operating voltage: 5–12V DC
- Current consumption: 40mA
- IP55 rated
- IK08 impact rating
- Operating temperature: -40°C to +70°C
- Built-in buzzer
- Tri-colour LED indication
- Surface or flush mounting options
- Polycarbonate housing
- Connector block cabling
- Dimensions: 94mm x 130mm x 25mm
- Weight: 225g
Please note that fobs and cards are sold separately.
Access Control to Suit Your Users
The ACTpro 1050e combines keypad and proximity functionality in one unit, allowing you to choose how access is granted depending on your users.
- Proximity cards can be attached to lanyards for easy access
- Key fobs can be attached to keys for convenient everyday use
- PINs avoid a physical credential that can be lost
This flexibility makes it easier to manage access across sites with different user types and changing requirements.
In workplaces, staff can use cards or fobs for fast, reliable entry without needing to remember codes. In schools or shared buildings, proximity credentials help reduce the likelihood of codes being written down or shared.
For areas with changing occupancy, such as multi-use spaces or for contractor access, PIN access can be issued and updated as needed without managing physical credentials.
By offering both access methods within the same reader, the EM1050e allows you to adapt your access control setup to suit the building, the users, and day-to-day operation.
Keypad with Proximity Reader for ACTpro Access Control Systems
This ACT pro keypad with reader connects to a door controller or station as part of a wider access control system.
- Maximum cable distance up to 100m at 12V DC (Up to 30m at 5V DC)
- Requires 8-core screened cable for connection
- Can be paralleled for entry and exit with other readers, including the EM1030e
As part of the ACTpro range, this keypad is used within a software-managed access control system. For standalone installations, ACT offers alternative keypads such as the ACT 5 or ACT 10. For help designing your access control setup, whether standalone or networked, contact our technical team.
