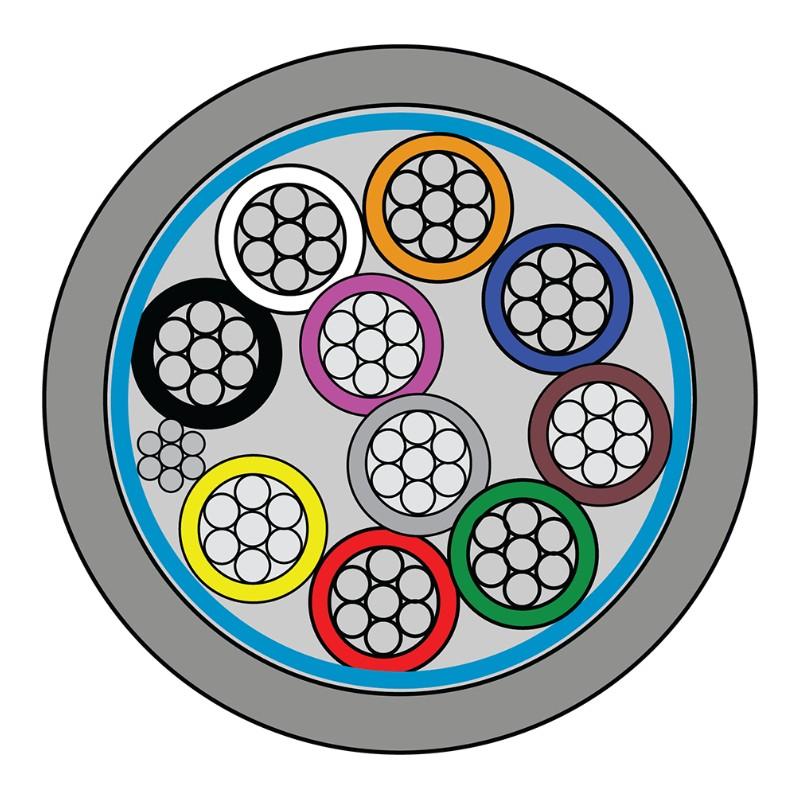

CQR Belden Style 9540 Cable | 10 Core | LSF | Screened |100m
CQR 9540 Belden equivalent cable with 10 copper cores, foil screen and low smoke and fume sheath. Ideal for use with proximity readers.
Read more| Quantity | Discount | You Pay |
|---|---|---|
| 10 | £8.00 | £70.00 VAT excl. |
CQR 9540 Belden Alternative Cable for Access Control Systems
This CQR Belden style cable is an LSF and screened cable with 10 cores, ideal for use with access control proximity readers. It offers a dependable equivalent to the 9540 Belden cable, providing screened protection and extra cores.
Manufactured with 100% copper conductors and an LSF sheath, it delivers consistent performance on long cable runs and in environments where electrical interference or safety is a concern.
Key Product Features:
- CQR Belden style cable
- Equivalent cable to Belden 9540
- MPN: CABS10/GY/LSF/100
- 10 multi core
- BS 4737 Type 2 cable
- Euro class: ECA
- 100% copper cores
- Sheath: low smoke and fumes (LSF)
- Screened: yes
- Screen material: Polyester/Ali foil
- Drain wire material: tinned copper
- Conductor type: tinned copper
- Conductor size: 0.194
- Number of cores: 10
- Number of strands in core: 7
- AWG: 24
- Insulation material: PVC
- Insulation colour: RD -BK-YL-BL-GR-WH-BN-OR-VI-GY
- Insulation resistance @ 20°C: ≈ 96 MΩ/Km
- Nylon ripcord colour: red
- Coloured rip cord meets the requirements of BS 4737 for identification
- Nominal diameter: 5.1mm
- Installation temperature: +5°C to +40°C
- Operating temperature: -10°C to +70°C
- Maximum voltage: 50V
- Maximum current: 1Amp
- Easy to strip
- Plaible in use
- Internal use
- EN 50575 CPR certified
- Grey finish
- Reel of 100m long cable
- Weight: 4.95kgs
LSF Cable for Low Smoke and Fume Installations
The outer sheath is made from low smoke and fume material, helping to meet safety requirements in commercial or public buildings.
In the event of fire, this cable produces significantly less smoke and fewer toxic fumes than standard PVC, making it suitable for evacuation routes, communal areas, and other critical locations where visibility and air quality matter.
Screened Cable to Prevent Signal Interference
This 10 core screened cable includes an aluminium polyester foil and tinned copper drain wire to reduce electrical noise and signal interference. When installed in electrically noisy environments, this shielding helps maintain signal clarity and performance between readers and controllers.
10 Core Belden Equivalent Cable for Flexible Installation
Compared to standard 8 core reader cables, this 10 core Belden cable equivalent gives you more freedom to design around complex access systems with multiple devices. The extra cores could also be used to help reduce voltage drop over longer cable runs.
It is particularly useful when working with proximity readers, including Paxton readers, or door hardware systems where device pre-terminated cables may fall short on distance.
Explore our selection of access control cables, including full copper and CCA alarm cable, plus Cat5e and Cat6 network cable. Some sites have specific compliance requirements, so contact our team to discuss your needs.
