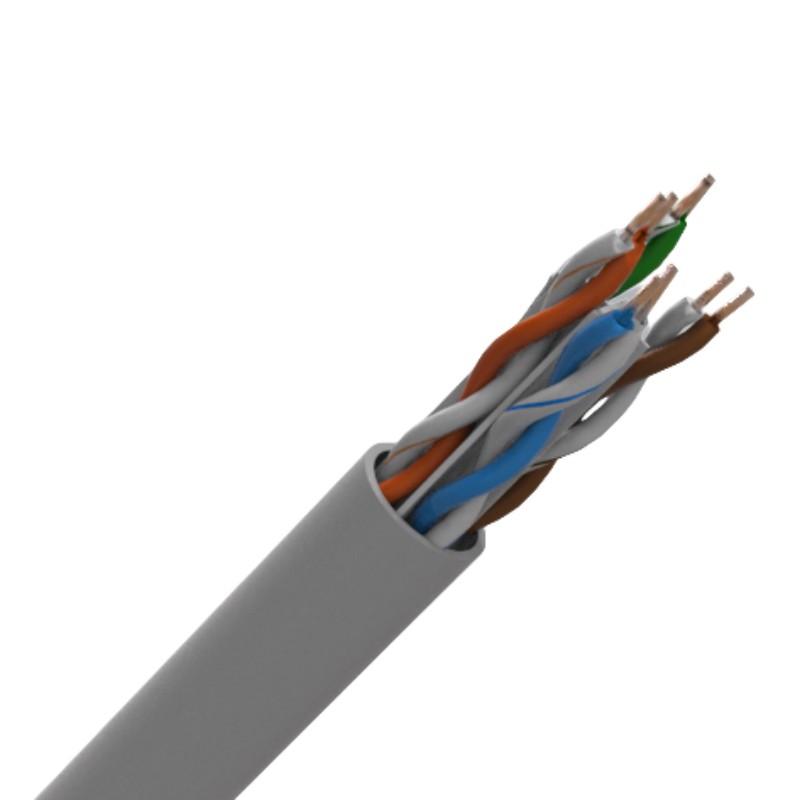

CQR Cat6 Cable | Category Cable | 305m
Category 6 cable with 8 full copper cores for fast data transfer in access control, CCTV, and low-voltage systems. 305m boxed cable.
Read more| Quantity | Discount | You Pay |
|---|---|---|
| 10 | £11.00 | £105.00 VAT excl. |
Category 6 Cable for Low Voltage Systems
This full copper Cat6 is a data cable designed to provide fast, reliable performance for low voltage installations. It’s commonly used in door access control systems to connect controllers to network ports or to link multiple controllers across a site.
If you're looking to futureproof your infrastructure, Cat6 network cable offers more advanced technology and a larger conductor size compared to lower models.
Key Product Features:
- CQR Professional Cat6 cable
- MPN: CAT6UTP/GY/PVC/305
- Unshielded twisted 4 pairs (UTP)
- Solid plain annealed copper
- 100 Mbps transfer speed / 100 MHz frequency at a maximum distance of 90 meters
- Standards: ISO 11801 / EN50575:2014 +A1:2016
- Number of cores: 8 cores
- Full copper cable
- Euro class: ECA
- Length: 305m
- PVC sheath*
- Finish: grey
- Conductor size: 0.53
- Number of stands in core: 1
- Insulation material HDPE

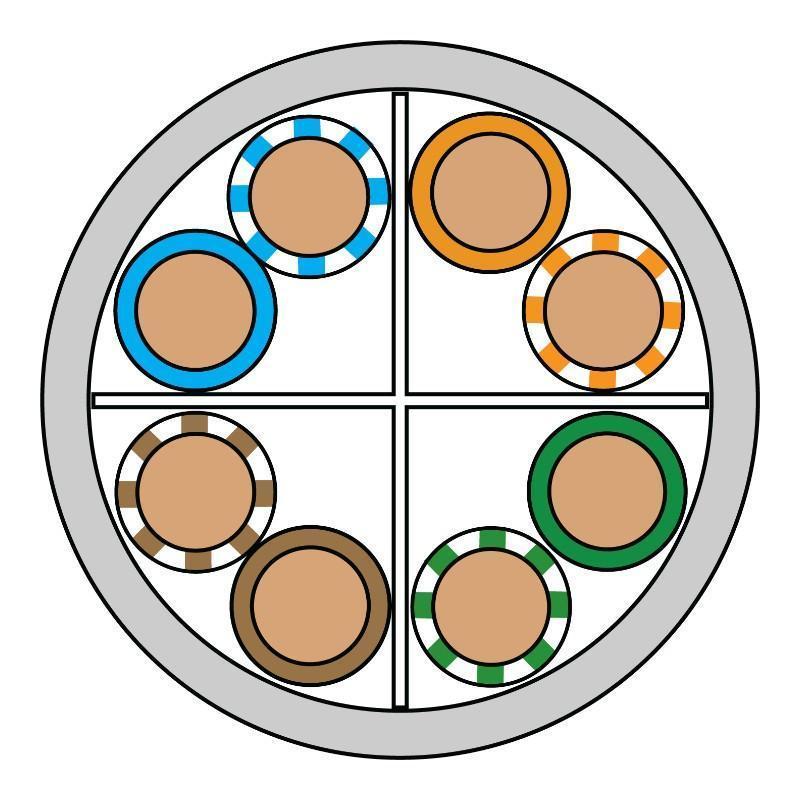

- Insulation colour:
- Blue-blue white
- Orange-orange white
- Green-green white
- Brown-brown white
- Insulation resist at 20°C: 5000
- White nylon rip cord
- Nominal diameter: 6mm
- Operating temperature: -10°C to +80°C
- Maximum voltage: 50V
- Internal use
- Boxed
*If you require an LSF or LSZH variant, please contact our team to enquire.
Professional Cat6 Cable for Access Control and Security Networks
This Cat6 UTP cable is designed for reliable performance across a range of networked low voltage systems.
Use it to connect:
- Door access control
- IP door entry systems
- CCTV and surveillance systems
The nylon ripcord allows the outer sheath to be stripped cleanly without damaging the cores. Each twisted pair is clearly colour coded, making identification straightforward during termination and testing. This cable is easy to work with and dependable once installed.
Why Use Category 6 Cable?
This CQR professional cable has solid copper cores for better signal transfer and lower resistance compared to copper-clad aluminium options. Full copper cable helps maintain performance over longer cable runs.
A full copper Cat5e is also available and ideal for general use; however, for better performance Cat6 is available where futureproofing is important.
For proximity readers that need extra protection from electrical interference, a Belden style screened cable may be more appropriate. Explore our selection of access control cables or contact our team to discuss your needs.
