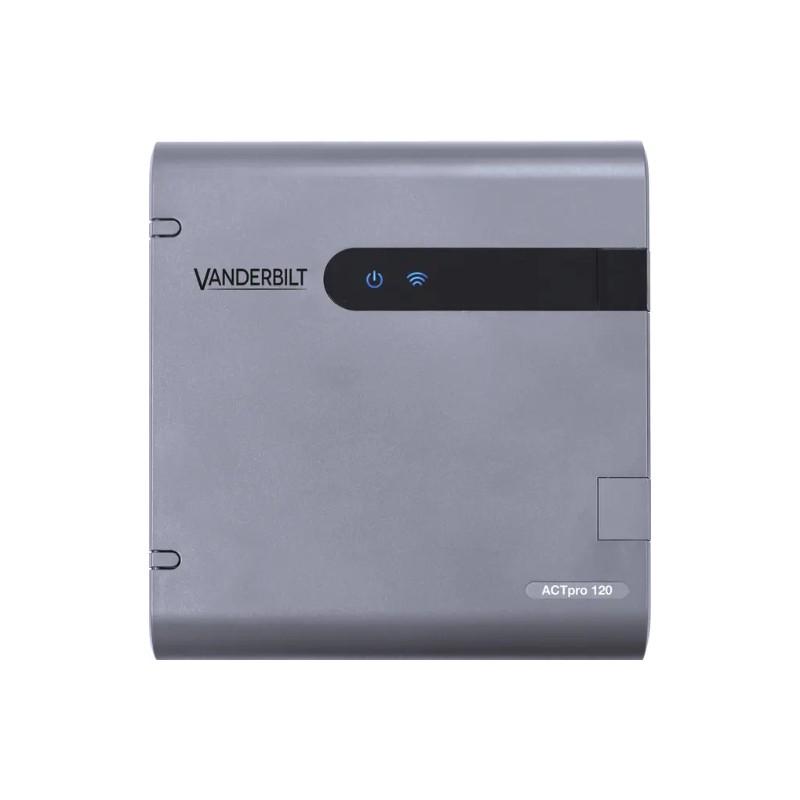

ACTpro 120 Door Station with 12V DC PSU
The ACTpro-120 door station is designed to expand your ACTpro access control system. It connects to an ACTpro controller such as the ACTpro-1500 or ACTpro-1520, allowing you to add additional doors and build a structured multi-door system.
This model includes a 12V DC 2 amp PSU, making it a convenient option where an integrated power supply is preferred to simplify installation at each door. A door controller, sold separately, is required for operation, allowing the ACTpro 120 to function as part of the wider system.
Key Product Features:
- MPN: V54502-C122-A100
- ACT pro 120 single door station
- Integrated 12V DC 2 amp PSU
- Input voltage range: 9-28V DC
- Current consumption: 40-120mA
- Connects to ACTpro controllers via RS485
- Supports system expansion
- Tamper monitoring with lid detection
- Emergency door release monitoring
- Mains present monitoring
- LED status indicators
- For internal use
- Surface mounted
- Dimensions: 236mm x 255mm x 84mm
- Weight: 1.1kg
ACTpro Door Station for Multi-Door Systems
The ACTpro-120 is used to expand your access control set up beyond the first door. A controller manages the first door, with additional doors using door stations.
This allows one controller to manage up to 32 doors in total, with one ACT door station required per additional door. It creates a structured and scalable access control system without the need to install a controller at every door.
It works well in offices, shared buildings, and multi-room environments where access needs to be managed across multiple areas.
How The ACTpro-120 Works Within Your System
This ACT door station must be connected to an ACTpro controller such as the ACTpro-1500 or ACTpro-1520. The door station acts as an extension of the controller rather than a standalone unit.
To complete your system, ACTpro readers such as the EM1030e prox reader or EM1050e reader with keypad can be added, along with suitable electric locking hardware.
Combined Door Station and Power Supply for Simpler Installation
The built-in 12V DC PSU makes the ACTpro-120 a convenient combined unit, bringing the door station and power supply together in one unit. This helps simplify installation at each door, reduces the need for additional components, and keeps the setup organised, particularly where doors are spread across different areas.
For systems where a separate power setup is preferred, the ACTpro-100 door station is also available, allowing you to tailor your system to suit your site.
ACTpro 120 Door Station for Expanding Your System
The ACTpro-120 is a practical choice for adding doors to your ACTpro system, combining a door station and power supply in one unit for a straightforward installation. It provides a simple and effective way to add additional doors to your ACTpro system without overcomplicating your setup.
For system guidance, contact our technical team today.
