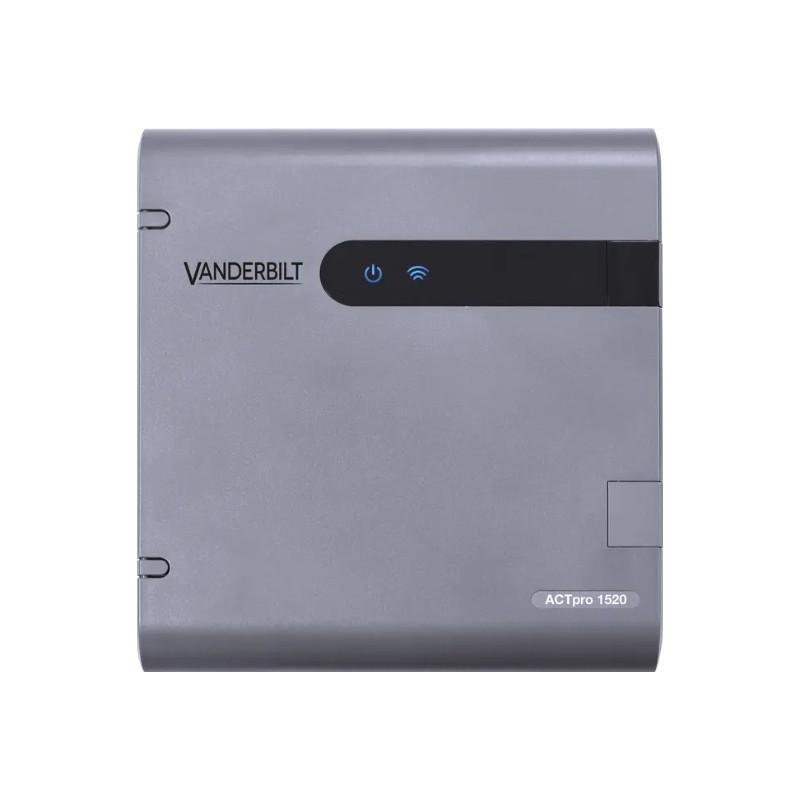

ACTpro-1520 Door Controller with 12V DC Power Supply

ACTpro 1520 Door Controller with 12V DC 2amp PSU

The ACTpro 1520 is a single door controller with an integrated 12V DC 2 amp PSU, designed to give you a starting point for your access control system. It works well where space is limited, combining the door controller and power supply into one unit to keep wiring simple, while still allowing the system to expand with compatible door stations.

Having a door controller like the 1520 allows you to position it on the secure side of the door, helping to prevent tampering and keep critical components out of reach.

The ACTpro-1520 runs on ACTpro software, with a free version available for systems of up to 100 doors. A paid version is also available for larger systems or where additional features are required. Contact our team for further information.

Key Product Features:

• MPN: V54502-C110-A100
• ACT pro 1520 single door controller
• Integrated 12V DC 2 amp PSU
• Input voltage range: 9-28V DC
• Current consumption: 350mA
• Supports up to 60,000 users
• Supports up to 2,000 user groups
• Dual-port Ethernet switch
• Supports ACTpro-100 and ACTpro-120 door stations
• Expandable up to 32 doors per controller
• Compatible with all ACTpro systems
• Tamper monitoring with lid detection
• Emergency door release monitoring
• Mains present monitoring
• LED status indicators
• For internal use
• Surface mounted
• Dimensions: 236mm x 255mm x 84mm
• Weight: 1.14kg

Access Control Door Controller for Single or Multiple Doors

This ACTpro door controller gives you a practical starting point, whether you are securing one door or planning a multi-door system. It works as a single door access controller, but it also forms the foundation of a wider access control system.

Additional doors can then be added using door stations such as the ACTpro-100 or ACTpro-120. This allows one controller to manage up to 32 doors in total. This setup works well for sites that need two, three, or more doors controlled, while still keeping the system structured and easy to expand.

Many sites install one door controller per floor or area, even though one controller can handle up to 32 doors. This approach can simplify wiring, reduce cable runs, and make installation easier.

ACTpro Door Controller With Built-In Power Supply

The built-in 12V DC PSU sets the ACTpro-1520 apart from the ACTpro-1500. It removes the need to source and mount a separate power supply. This simplifies installation as everything sits within one unit, which helps reduce wiring time and keeps the setup neat.

The ACTpro-1500 without PSU is also available. It suits installations where a larger power supply unit is used to support multiple controllers and door stations from a central source.

Choose The Right Reader For Your Access Control Setup

This door controller access control solution adapts well to different environments. It supports a wide range of readers and credentials, so you can tailor access based on how the building is used.

An ACTpro EM1030e prox reader works well where fob or card access is needed to reduce the risk of shared codes. The ACTpro EM1050e prox and keypad gives you more flexibility where temporary users, contractors, or shared spaces are involved.

The ACTpro 1520: A Practical Door Controller You Can Rely On

The ACTpro-1520 is a dependable choice when you need a door controller that is easy to install, simple to manage, and ready to support future expansion. The integrated PSU keeps installation clean, while the wider ACTpro compatibility gives you the flexibility to adapt your system to your site.
