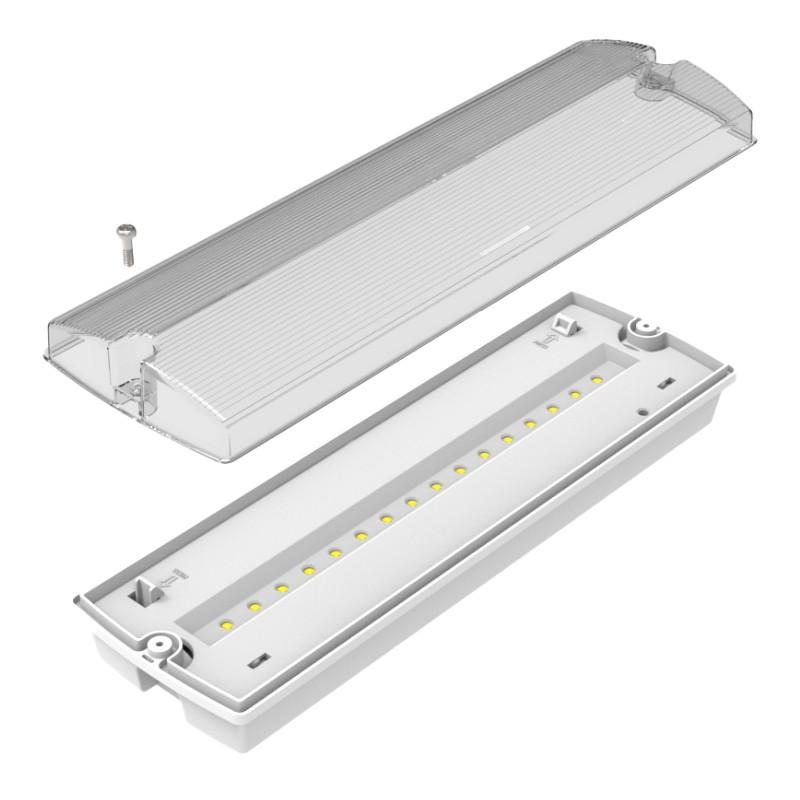

Self Test LED Bulkhead Emergency Light

Self Test Emergency Bulkhead Light for Reliable Compliance

This self test emergency light bulkhead offers automatic testing and reliable illumination during power failures. With selectable maintained or non-maintained operation, it suits a wide range of building types and applications.

Built-in diagnostics help reduce testing time, making it a practical choice for facilities looking to streamline maintenance and support compliance. The IP65 rated polycarbonate housing and 150 lumen output ensure dependable performance in emergency situations.

Key Product Features:

• MPN: BP/351/ST/WH/865
• Bulkhead plus
• Maintained and non-maintained selectable
• Surface mount as standard*
• Test button
• Self test (manual model available)
• Hinged gear tray with push fit terminals
• Voltage: 220-240V AC
• Frequency: 50/60Hz
• Running current: 0.032A
• Charging power: 3.2W
• Emergency power: 1W
• Power factor: 0.4
• Inrush current: 5A
• Electrical class: 2
• Battery: LiFePO4 3.2V 1500mAh
• Emergency duration: 3 hours
• Beam angle: 120°
• Emergency mode lumens: 150
• CCT: 6500K
• CRI: 80
• Lifetime: 50,000 hours
• Lumen maintenance L80: 50,000 hours
• Housing material: polycarbonate
• IP rating: 65
• Maintained mode lumens: 150
• Dimensions: 351mm x 111mm x 63mm

*A recess kit and models with a higher lumen output are available as special orders, so contact our team to discuss the options.

Automatic Emergency Light Testing For Convenient Maintenance

The self test function automatically carries out routine checks and identifies faults without the need for manual testing. Faults are shown via the LED status light, allowing issues to be spotted and resolved quickly. This reduces the burden on maintenance teams and supports ongoing compliance.

Self test emergency lights are ideal for larger facilities, where manual testing would be time-consuming and resource intensive. For smaller buildings, a manual test version of this bulkhead is also available.

In addition to this bulkhead model, we also offer self test versions of the blade exit sign and box light, allowing you to specify consistent solutions across your space.

Maintained or Non-Maintained Bulkhead

This LED emergency bulkhead is supplied in maintained mode but can be configured as non-maintained during installation, giving you flexibility based on the needs of each space.

In maintained mode, the light stays on during normal operation and switches to battery backup when power fails. In non-maintained mode, it remains off under normal conditions and activates only during an outage.

Customisable Exit Signage for Emergency Bulkheads

Every unit is supplied with a green adhesive exit sign sticker. This includes separate arrow segments so you can customise the legend to suit the direction of your escape route. This helps clearly mark the route to safe exit points and reduce confusion during a power cut.

For additional signage, we offer a range of fire exit signs, including photoluminescent options. These support a complete approach to escape route visibility and fire safety.

Emergency Lighting, Signage, and Hardware for Safer Evacuation

Emergency lighting is a critical part of any compliant escape safety strategy. This LED bulkhead helps ensure exit routes remain clearly lit during a power failure, supporting safe evacuation. When combined with the correct signage, door hardware, and intumescent protection, it forms part of a wider system that helps protect occupants.

To build a complete solution, explore our emergency lighting options, including box lights and blade exit signs for different applications and environments. We also stock a wide selection of panic hardware, such as push pads and touch bars, alongside fire door ironmongery. Every component plays a role in ensuring your building stays safe, compliant, and ready.
