Self Testing Emergency Blade Light for Site Convenience
This LED blade exit sign performs automatic checks, making it ideal for larger facilities where regular testing can be time consuming. The three hour battery, directional arrow, and bright LED output help ensure escape routes are clearly marked during a power failure.
With reduced maintenance demands, flexible mounting options, and clear compliance features, this illuminated exit sign offers dependable guidance without adding complexity to day-to-day site management.
Key Product Features:
- MPN: BL/310/ST/WH/865
- LED exit sign with an up arrow legend
- Double sided legend
- Maintained and non-maintained operation
- Wall and surface mount as standard
- Compatible with recessed, flag, and hanging kits (sold separately)
- LED indicator
- Test button
- Self test (manual test version also available)
- Voltage: 220-240V AC
- Frequency: 50/60Hz
- Running current: 0.04A
- Charging power: 0.8W
- Emergency power: 0.7W
- Power factor: 0.35
- Inrush current: 4.5A
- Electrical class: 2
- Battery: LiFePO4 3.2V 1100mAh
- Emergency duration: 3 hours

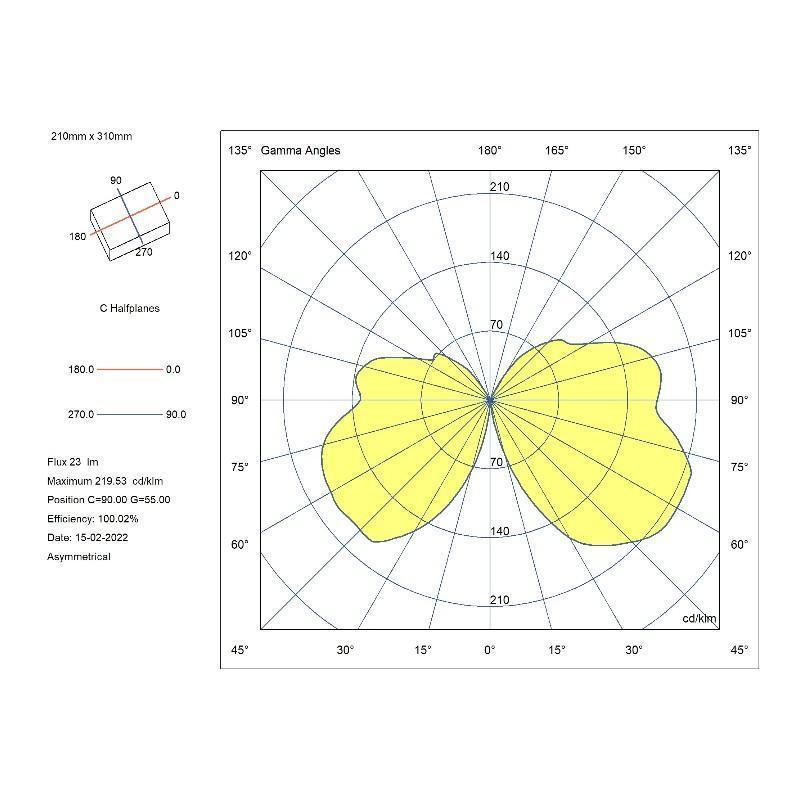

- Beam angle: 235°
- Emergency mode lumens: 24
- CCT: 6500K
- CRI: 80
- Lifetime: 50,000 hours
- Lumen maintenance L80: 50,000 hours
- Housing material: polycarbonate
- IP rating: 20
- Recognition distance: 30m

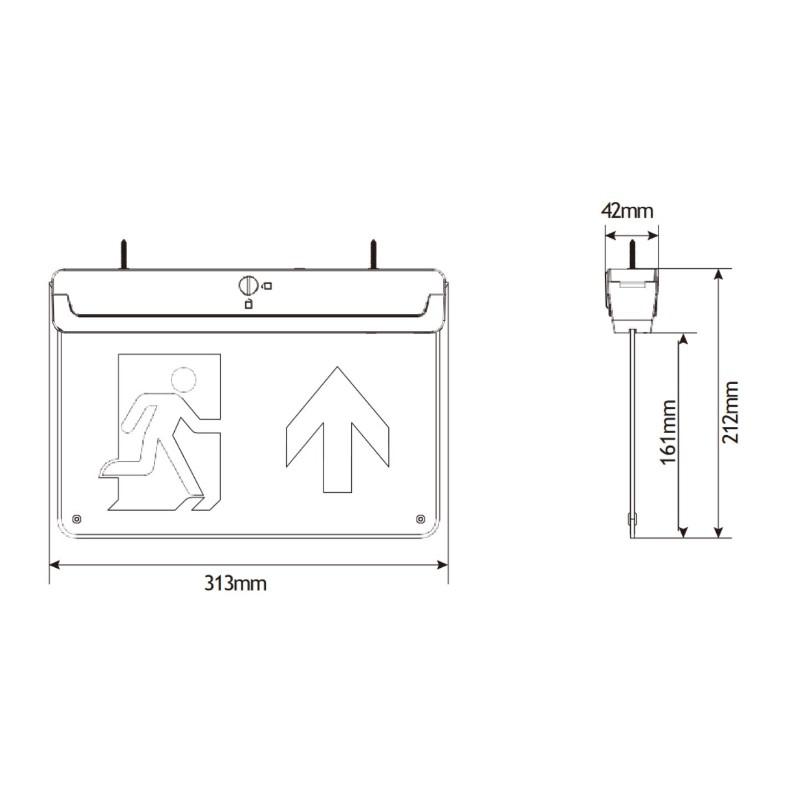

- Dimensions: 313mm x 212mm x 42mm
- Select a black or white finish
Automated Testing for Emergency Lighting Compliance
This self test LED blade light eliminates the need for manual power-down testing. Its built-in system runs routine tests automatically. An LED status indicator provides clear visual feedback, so any faults can be identified and addressed quickly.
This reduces disruption in occupied buildings and saves valuable time, helping you maintain compliance without the need for scheduled manual emergency light testing. Self test models are ideal for larger facilities where manual testing can be resource-intensive. A manual test version is also available for smaller sites.
Select Maintained or Non-Maintained Mode
This illuminated fire exit sign supports both maintained and non-maintained operation. The mode is selected during installation.
Maintained mode keeps the sign illuminated at all times. This suits areas of public access such as corridors, lobbies, and cinemas where constant visibility is expected.
Non-maintained mode activates the lighting only if there is a mains power outage. This suits spaces where permanent illumination is not required, such as non-public areas like offices, but escape route guidance remains essential.
Both options deliver the same three hour battery duration, giving occupants time to follow exit routes safely.
LED Emergency Exit Sign Mounting Options
These illuminated exit signs can be wall or ceiling mounted as standard, making installation straightforward across most internal environments. Although the sign is double sided, the standard wall mounting method positions it against the wall, so only one face is visible.
Additional mounting kits are available to support different installation needs. A flag kit allows the sign to project at 90°, keeping both sides visible when mounted on a wall. A recessed kit provides a more discreet finish by concealing most of the unit within the ceiling. A hanging kit is ideal for high ceilings or open spaces.
These options help you install this safety signage where it will be most visible and effective for your building’s emergency escape route.
Directional Safety Signs for Escape Route Guidance
The sign is supplied with an up arrow legend however, if your escape route layout requires left, right, or down arrows, alternative legends are sold separately. The legend can be changed during installation by following the included instructions.
Clear, consistent fire safety signs helps building users make quick, confident decisions in an emergency. Using the same style of signs across a site supports recognition and reduces confusion during evacuation.
We offer a selection of fire exit signage to clearly identify escape routes. For final exit door operation, explore our range of panic hardware, including push pads and touch bars.
