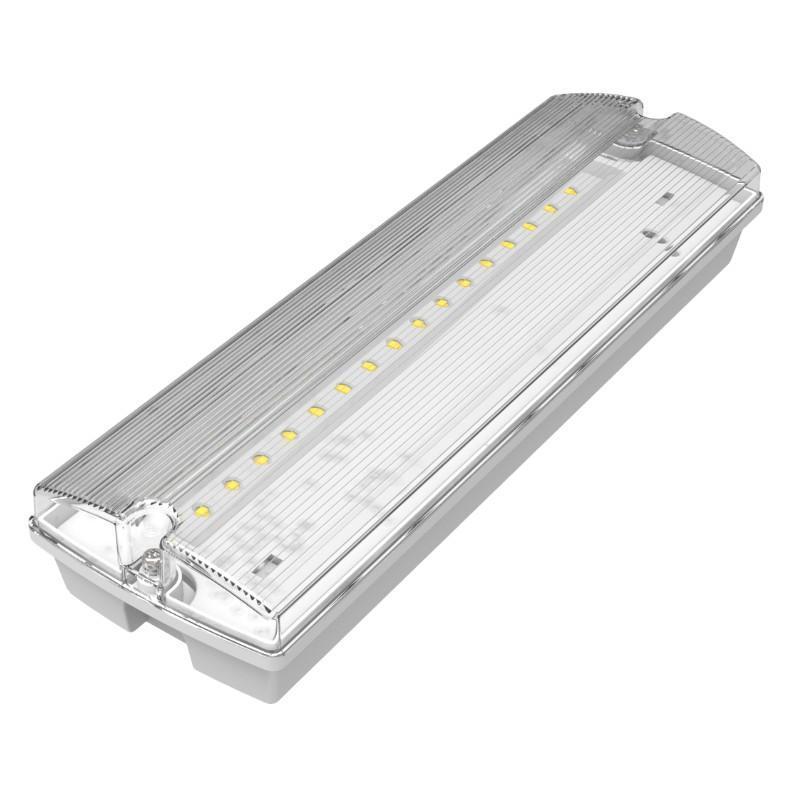

Manual Test LED Bulkhead Emergency Light
The CQR manual test emergency light bulkhead is surface mounted with a 3 hour battery, selectable operation, and a customisable exit sign for clear evacuation routes.
Read more| Quantity | Discount | You Pay |
|---|---|---|
| 10 | £1.35 | £12.15 VAT excl. |
Emergency Bulkhead Light for Escape Routes
This LED emergency bulkhead light delivers reliable illumination during power failures, helping to keep escape routes clearly lit and your building compliant.
Supplied as a maintained light, it can be configured as non-maintained during installation to suit the needs of the space. This model requires manual testing, while a model is also available for sites that require automated testing.
Each unit comes with a green adhesive exit sign sticker. The segmented design allows you to position the directional arrow to match your facility’s layout.
Key Product Features:
- MPN: BP/351/M/WH/865/LI
- Bulkhead plus
- Maintained and non-maintained selectable
- Surface mount as standard*
- Test button
- Manual test (self test model available)

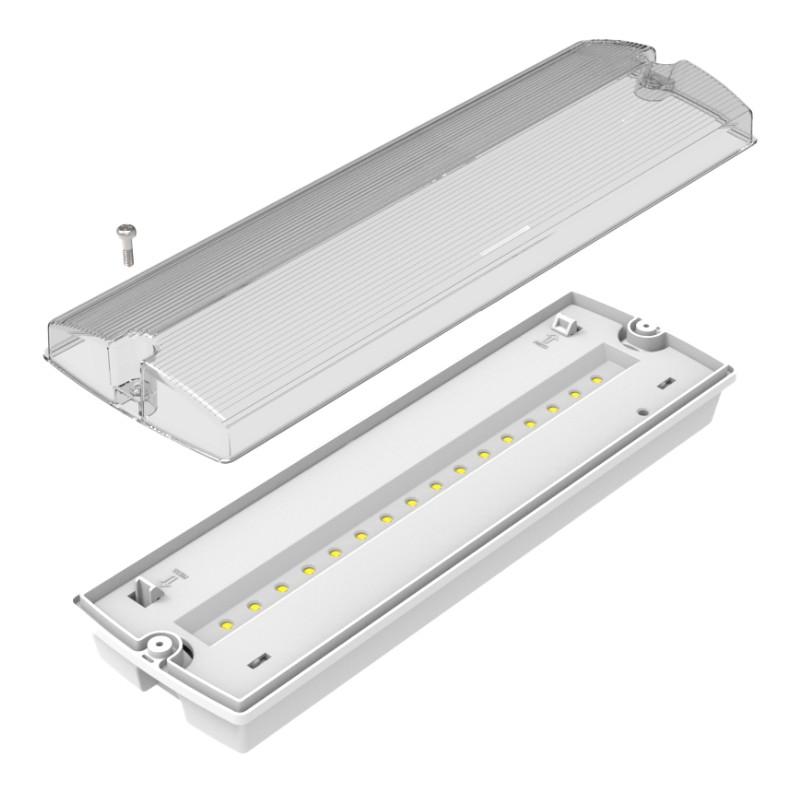

- Hinged gear tray with push fit terminals
- Voltage: 220-240V AC
- Frequency: 50/60Hz
- Running current: 0.032A
- Charging power: 3.2W
- Emergency power: 1W
- Power factor: 0.4
- Inrush current: 5A
- Electrical class: 2
- Battery: LiFePO4 3.2V 1500mAh
- Emergency duration: 3 hours

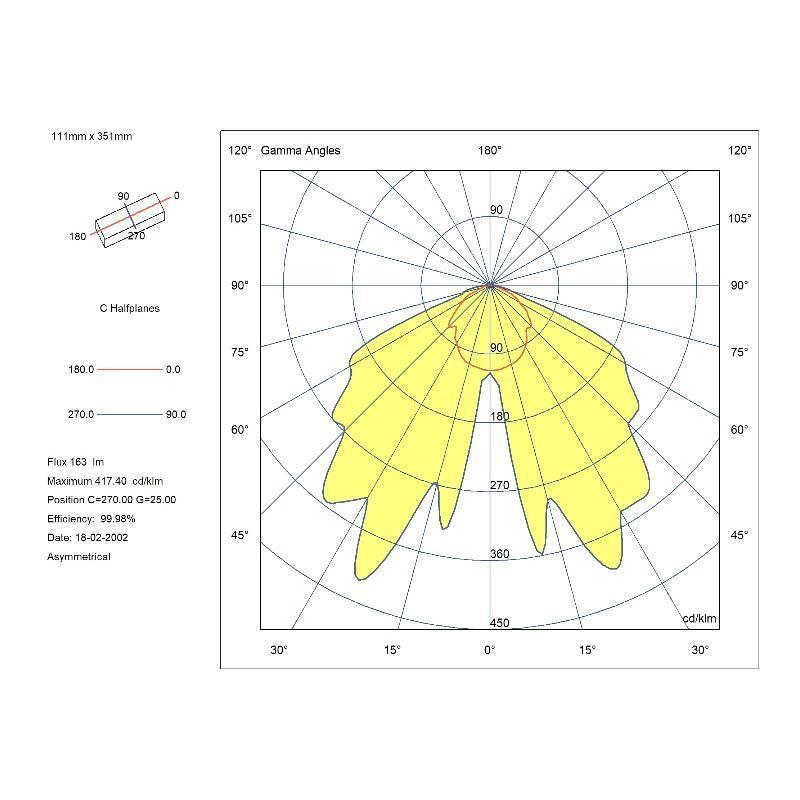

- Beam angle: 120°
- Emergency mode lumens: 150*
- CCT: 6500K
- CRI: 80
- Lifetime: 50,000 hours
- Lumen maintenance L80: 50,000 hours
- Housing material: polycarbonate
- IP rating: 65
- Maintained mode lumens: 150

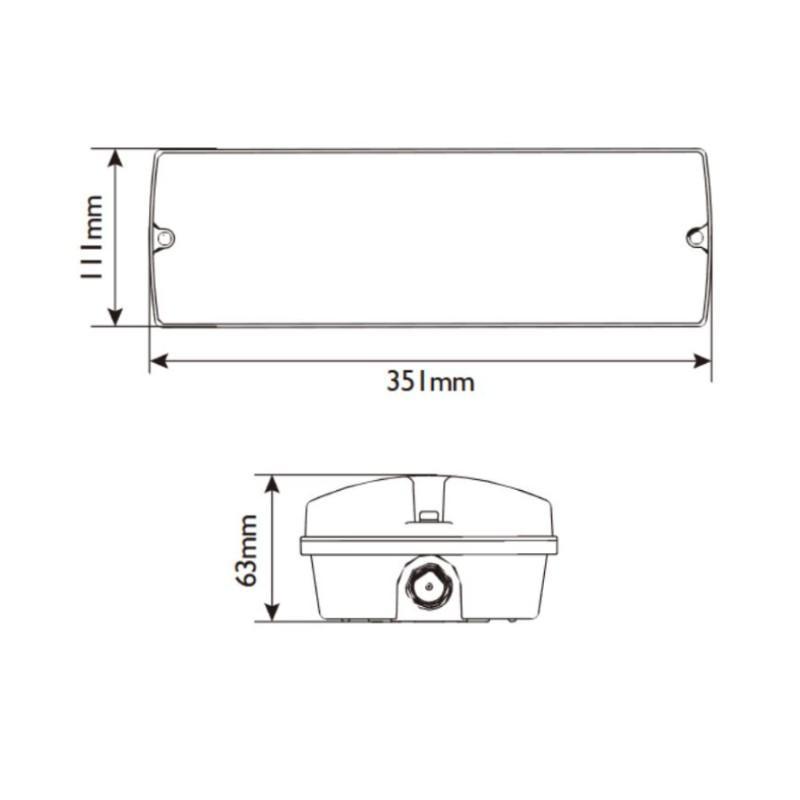

- Dimensions: 351mm x 111mm x 63mm
*A recess kit is available, and higher lumen output models can be supplied as a special order, so contact our team to discuss the options.
Manual Test Emergency Light Bulkhead
Emergency lighting is essential for safe evacuation during a power failure. This bulkhead is ideal for use along exit routes, above final exits, and in circulation spaces where reliable lighting is essential for guiding occupants to safety.
Therefore, regular testing is vital to ensure it performs as expected when it’s needed most. As a manual test unit, this model requires the mains power to be isolated and the unit run for the full 3 hour battery duration. A visual check is then needed to confirm correct operation. Manual testing can be time consuming, so this type is typically better suited to smaller sites.
For larger facilities, the self test version automates routine checks. Only a quick visual inspection of the LED status is needed, easing the pressure on maintenance teams.
Flexible Emergency Light Modes for Different Applications
This emergency bulkhead supports both maintained and non-maintained operation, giving you flexibility based on the area of use:
Maintained Mode
- Light remains on during normal operation and switches from mains to battery during a power failure.
- Ideal for areas requiring constant illumination, such as cinemas, leisure facilities, and theatres.
Non-maintained Mode
- Light stays off during normal operation and activates only when mains power is lost.
- Best suited to well lit spaces that only need emergency illumination, such as offices, warehouses, and non-public areas.
Some models, like this bulkhead and the CQR box emergency lights, allow selection at the time of installation. Others, like downlights, are fixed as non-maintained and require careful placement where ambient lighting is already sufficient.
Combine Emergency Lighting With Fire Door Compliance
This LED bulkhead delivers reliable performance, simple installation, and flexible operation to support your safety strategy. With long life LEDs and customisable signage, it helps keep escape routes visible and your building compliant.
To support a complete fire safety strategy, combine emergency lighting with fire door ironmongery, intumescent seals, and clear fire door signage. While lighting helps guide occupants to safety, tested door hardware and seals help contain smoke and fire, protecting exit routes and slowing the spread.
