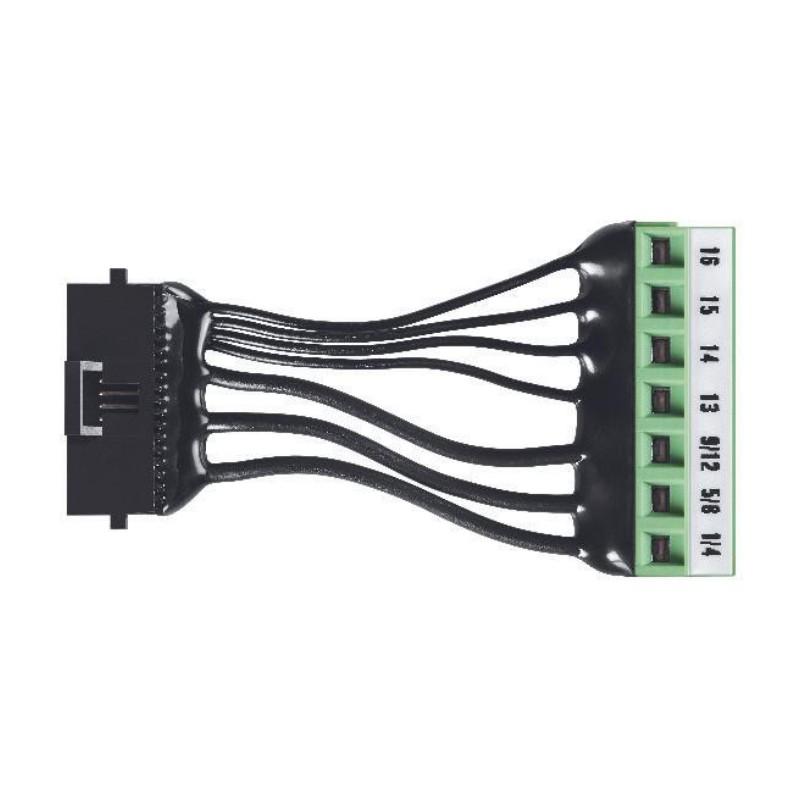

Universal Adapter for Simonswerk TECTUS Energy Hinges
The Simonswerk Universal Adapter enables concealed power transfer for access control components through TECTUS Energy hinges.
Two adapters are needed per hinge.
Read moreSimonswerk Universal Adapter for TECTUS Energy Hinges
The Universal Adapter from Simonswerk is designed for use with the TECTUS Energy concealed hinge system, providing reliable and concealed power transfer to a wide variety of current collectors. This adapter supports the full functionality of electronic locking systems and access control components without the need for external or visible cabling.
Two Simonswerk TECTUS adapters are required per hinge.
Key Product Features:
- Output: 3 x 3.2 A and 4 x 0.8 A
- Maximum voltage: 50 V AC/DC
- Designed for direct connection to a wide range of current collectors
- Plug-and-play connector
- Ideal for access control integration
Suitable for use with TECTUS Energy concealed hinges, including:
Further concealed hinge models are available as special orders. Get in touch for expert guidance on selecting the most suitable option for your installation.
Reliable and Concealed Power Transfer
TECTUS Energy hinge systems enable power transfer between the door frame and leaf, making it a core component in integrated access control systems. They support applications requiring electrical connectivity for components such as door status contacts and electric locks.
Two adapters are required to ensure complete system functionality. An adapter is needed for both the frame and the door leaf side.
With an output of 3 x 3.2 A and 4 x 0.8 A, it provides sufficient power for most commercially specified door electronics. The plug-and-play design eliminates the need for custom wiring at the hinge.
The concealed hinge system not only supports the operation of the door but also acts as the channel for energy transfer. They enable power delivery across the hinge axis with no visible components or cable disruption.
This adapter offers discreet and dependable functionality for demanding, high-traffic environments where performance, durability, and design integrity are essential.
Choose the Right Adapter for Your Application
Simonswerk offers three adapter options within the TECTUS Energy system. Selecting the correct one ensures compatibility with the locking and monitoring systems in use:
- Universal Adapter: Designed for a broad range of current collectors. Output: 3 x 3.2 A and 4 x 0.8 A.
- Adapter 1: Dedicated to FUHR motor locks.
- Round Cable (3m or 10m): Offers open cable ends for maximum flexibility. Output: 16 x 0.8 A.
A Flexible Power Solution for Modern Door Systems
Whether you're managing access control in new builds or retrofitting intelligent locking systems, the TECTUS Energy universal adapter delivers dependable power connectivity with minimal aesthetic compromise. Designed by Simonswerk to support complex, design-led door systems, it ensures long-term reliability, reduced installation times, and a professional finish.
Engineered for performance and built for versatility, this adapter is essential for projects that demand both function and finish.
