Adapter 1 for Simonswerk TECTUS Energy Concealed Hinges

Adapter 1 for Simonswerk TECTUS Energy Concealed Hinges

Simonswerk logo

Connect Simonswerk TECTUS Energy hinges to FUHR motor locks with Adapter 1. A tidy and high-performance solution for concealed power transfer.

Each hinge requires two adapters.

Read more
£115.00 VAT excl.
£138.00 VAT incl.
Code: TE-EN/A1
Phone Icon
Special Order Item Please call us for availability
Description
Product Documents
Reviews

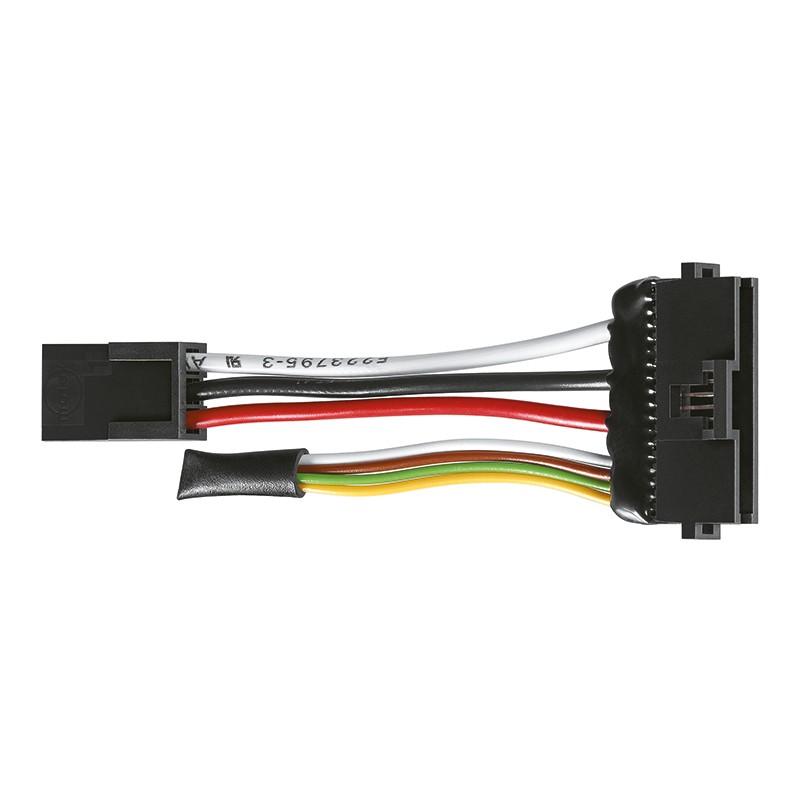

Simonswerk Adapter 1 for TECTUS Energy Hinges and FUHR Motor Locks

The Adapter 1 TECTUS Energy from Simonswerk is a dedicated solution designed for use with the TECTUS Energy hinge system. Together, they ensure reliable, concealed power transfer to FUHR motor locks.

This adapter features a plug-and-go connector for the TECTUS Energy hinge and a tailored connection for FUHR locks. Two adapters are required to complete a TECTUS Energy installation: one attached to the frame side and one to the door leaf side.

Key Product Features:

  • For use with FUHR motor locks
  • Output:  3 x 3.2 A and 4 x 0.8 A
  • Maximum voltage: 50V AC/DC
  • Plug-and-play connector
  • Ideal for access control integration

Compatible with TECTUS Energy hinges, including:

The wider TECTUS Energy range includes solutions for a variety of doors. Not sure which concealed hinge suits your project? Contact us for tailored advice.

Dedicated Power Transfer for FUHR Lock Integration

Simonswerk TECTUS Energy hinges allow concealed and efficient power transfer from the building’s infrastructure to the door’s electronic locking mechanism. This enables the functionality of advanced locking systems without the need for external or surface-mounted cabling, preserving the aesthetic appeal of the door. It's an ideal choice for access control in high end projects.

The Simonswerk Adapter 1 is specifically designed for use with TECTUS Energy conductor hinges when integrating FUHR motor locks, providing a reliable and discreet connection.

Comparing All Simonswerk Adapter Options

While Adapter 1 is engineered specifically for FUHR motor locks, it’s one of three key adapter solutions within the Simonswerk TECTUS Energy range:

  • Adapter 1: Output of 3 x 3.2 A and 4 x 0.8 A. Tailored for FUHR motor locks.
  • Universal Adapter: Same output as Adapter 1, but offers the broader compatibility of a universal connector.
  • Round Cable (3m or 10m): Open ended cable for ultimate flexibility. Suitable for diverse applications with an output of 16 x 0.8 A at 50V.

Choosing the right adapter depends on the access control components in your system. Adapter 1 is the recommended solution for projects specifying FUHR systems with TECTUS Energy hinges.
