The Simonswerk TECTUS TE 340 3D Energy hinges provide concealed permanent energy transfer for doors up to 80kg adjusted door weight. Choose from a range of finishes.
Hinges are sold as single units, not pairs.
Read moreTECTUS TE 340 3D Energy Concealed Conductor Hinges

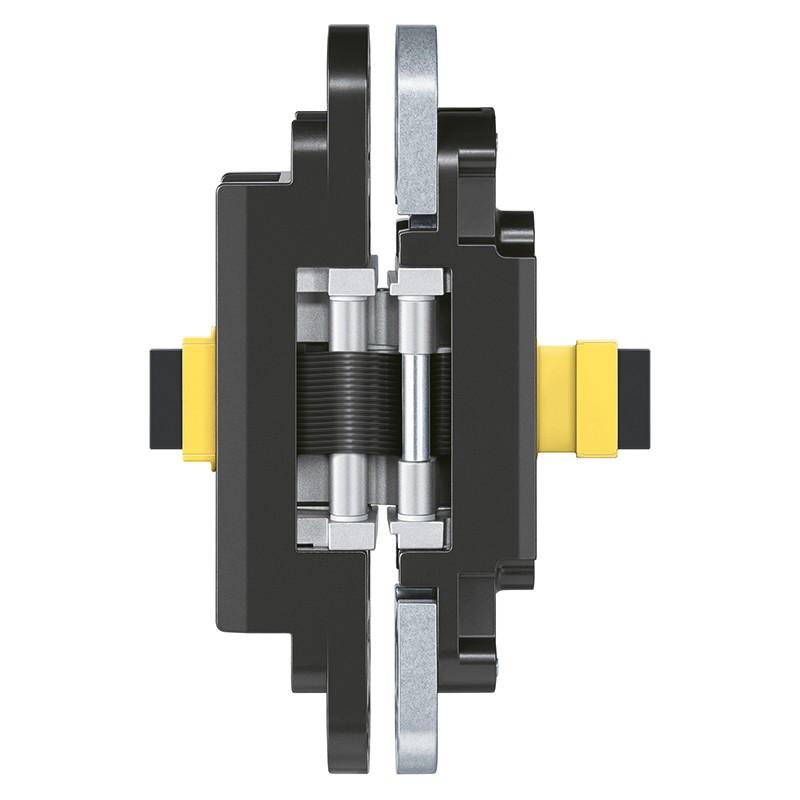

Simonswerk TECTUS TE 340 3D Energy concealed hinges deliver innovative hinge technology combined with permanent energy transfer, ideal for modern access control projects. Specifically engineered for heavy-duty doors, these hinges integrate into timber and metal doors and frames. They offer high performance and completely concealed energy transfer to locks and fittings.
Key Product Features:
- Choice of 3 finishes
- 3D adjustment
- Maximum load capacity: 80kg
- Fully concealed hinge system
- Permanent energy transfer
- Maximum voltage: 50V
- Maximum current: 0.8A
- 16-wire ribbon cable
- 3 different plug connection options
- Suitable for timber and metal doors
- Suitable for timber, steel, and aluminium frames
- 30-minute fire rating*
- Non-handed
- Burglar resistant
- Maintenance-free slide bearings
- Suitable for unrebated doors
- Maximum opening angle: 180°
- Heavy-duty use
- Zinc body with aluminium arm
- CE, UL, and IFT quality marked
- Certifire approved CF 5810
- Overall dimensions: 160mm x 73.5mm
*A separate intumescent kit is available when installing these conductor hinges to 30 minute fire rated doors. Timber and mineral-based door assemblies should be a minimum of 44mm thick.
Concealed Conductor Hinge Technology
The TECTUS TE 340 3D Energy hinge system provides a clean finish, completely concealed when doors are closed. This discreet integration makes these invisible hinges perfect for high-specification residential and commercial environments, allowing door designs and finishes to remain uninterrupted and visually impactful.
These conductor hinges are visible when the door is open, so they are sold in a range of finishes to match other items of door hardware. Choose from F1 satin chrome, F2 satin nickel, or SW126 satin stainless steel, with other finishes available as a special order.
Easy Energy Transfer Integration
Standard concealed door hinges provide smooth and easy opening to a variety of doors, but on top of this, the TECTUS Energy hinges feature energy transfer capabilities. They enable the reliable powering of doors for security systems and electric locking. This streamlines electric hardware installations and enhances the functionality of modern door access systems.
This hinge has 16 wires that have a 0.14mm2 cross section. The maximum current per wire is 0.8A with a 50V maximum. Two connection adaptors are required per hinge, and the round cabling is available in 3m and 10m lengths. For heavier doors, the TE 540 3D Energy has a 120kg load capacity, and the TE 640 3D Energy has a substantial 200kg load capacity - both with the same energy transfer capability.
Precision 3D Adjustability
Equipped with advanced 3D adjustability, the TECTUS TE 340 3D Energy hinges offer accurate alignment in all three dimensions - height, depth, and lateral position - even post-installation. This feature guarantees consistently smooth door operation, significantly reducing future maintenance and adjustment requirements.
Precise adjustments ensure long-term reliability and optimal performance. Compression is +/- 1mm, with height and side adjustment of +/- 3mm. For doors requiring adjustable hinges but without the energy transfer function, Simonwerk produces a standard TE 340 3D hinge.
Robust Fire Door Safety Compliance
Fully tested and certified for 30-minute fire doors, these TECTUS fire rated hinges deliver vital passive fire protection, essential for compliance with safety regulations. An intumescent kit specifically designed for the TE 340 3D Energy hinge is available separately, ensuring complete fire-rated compliance for user and building safety.
This comprehensive solution provides essential peace of mind and regulatory assurance. Always ensure your fire door ironmongery is suitable for use on your type of door, it complies with the test evidence, and is installed with intumescent protection where required.
Simple Installation for Multiple Applications
Designed for heavy-duty door installation, these concealed hinges are compatible with timber, metal, and aluminium door frames. Clear fitting instructions allow for efficient installations, reducing downtime and labour costs. Their versatility makes them a practical and effective solution for new build and refurbishment projects.

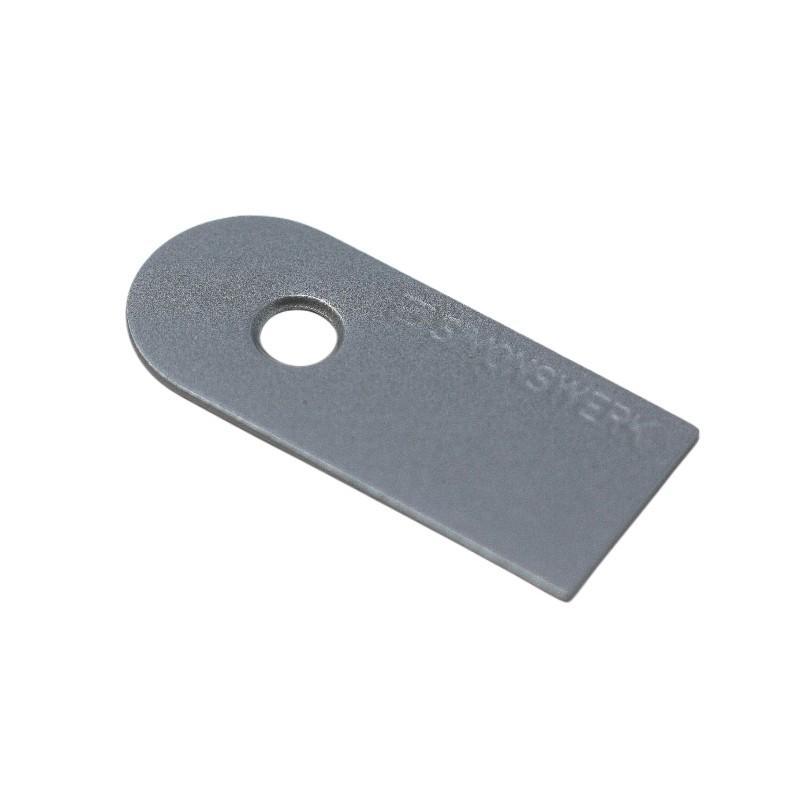

Templates and a milling frame are available for these hinges, plus routing data for steel, casing, and block frames. Once installed and the plug connections have been made on each side, make sure to fix the warning sticker to the centre of the small hinge cover plates. These hinges are suitable for left and right handed single swing side hung doors.
Understated Doors with Innovative Design
Choose Simonswerk TECTUS TE 340 3D Energy concealed hinges when your project requires advanced functionality, clean aesthetics, and essential fire safety. Perfect for new builds and refurbishments, these concealed hinges provide superior performance and a discreet high-end finish, ensuring your project delivers on both form and function.
