Simonswerk TECTUS TE 540 3D Energy Concealed Hinges

Simonswerk TECTUS Power Transfer Hinges for Access Controlled Doors

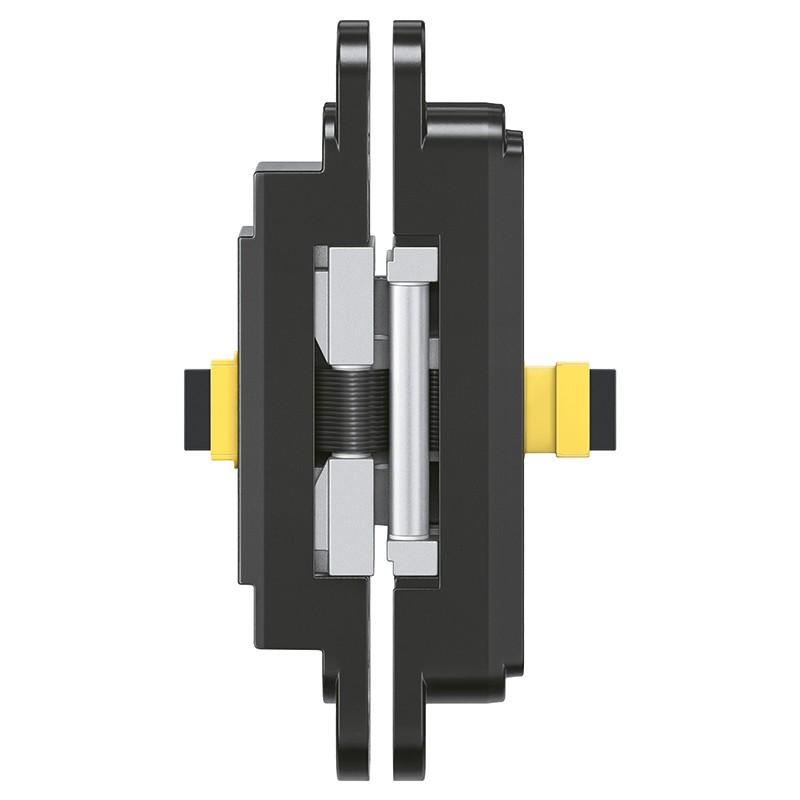

The Simonswerk TECTUS TE 540 3D Energy hinge is a concealed hinge solution with integrated power transfer, engineered for demanding heavy-duty doors. It offers precise 3D adjustability and a clean, flush finish, making it ideal for modern commercial buildings where uninterrupted design meets advanced functionality.

Designed for both timber and steel frames, this hinge allows for electrical components in the door leaf, such as electronic locks and other access control system components, to be powered safely and invisibly.

These hinges are sold as singles.

Key Product Features:

• Choice of 3 finishes
• 3D adjustment
• Maximum load capacity: 120kg
• Fully concealed hinge system
• Permanent energy transfer
• Maximum voltage: 50V
• Maximum current: 0.8A
• 16-wire ribbon cable
• 3 different plug connection options
• Suitable for timber and metal doors
• Suitable for timber, steel, and aluminium frames
• 30-minute fire rating*
• Non-handed
• Burglar resistant
• Soundproof
• Maintenance-free slide bearings
• Suitable for unrebated doors
• Maximum opening angle: 180°
• Heavy-duty use
• Zinc body with aluminium arm
• CE, UL, and IFT  quality marked
• Certifire approved CF 5810
• Overall dimensions: 200mm x 80.5mm

*When installing the TE 540 3D Energy to FD30 doors, a separate intumescent kit is required.

Concealed Hinge with Energy Transfer Built-In

Simonswerk TECTUS Energy hinges enable secure and discreet power transmission between the door frame and door leaf using an enclosed 16-wire ribbon cable. Each wire delivers up to 0.8A at 50V, providing a reliable concealed solution for powered locks, electric strikes, and access control components.

The ribbon cable is not visible or accessible, even when the door is open, providing a closed system that maintains clean, uninterrupted door lines. This makes the hinge ideal for high-end commercial environments such as office developments, healthcare settings, and education facilities, where visual consistency and functionality are a priority.

To complete the installation, two Simonswerk connectors are required per hinge. One fitted to the frame side and one to the door leaf. These use a clip-and-connect system for simple, secure connection and are sold separately in the following options:

• Round cable: choose from 3m or 10m lengths
• Universal adapter connector
• Adapter 1: designed specifically for use with FUHR motor locks

Always choose connectors that match the requirements for your access control system.

High Load Capacity for Heavier Doors with 3D Adjustability

These TECTUS Energy hinges support a door weight of up to 120kg when two hinges are used.

Once installed, the hinge offers full 3D adjustment without removing the door. Height, depth, and lateral position adjustments are achieved quickly. This allows for fine-tuning the hinge during installation. See the product document section for the downloadable adjustment instructions.

Certifire Approved TECTUS Energy Fire Door Hinge

The Simonswerk TECTUS Energy TE 540 3D hinge is Certifire Approved for use on 30 minute timber fire doors with timber frames when installed with the 8823 intumescent kit, sold separately. The 2mm thick intumescent pack is self-adhesive and has been designed specifically to suit this TECTUS energy hinge. It should be applied to the hinge body and behind the forends.

The Certifire certificate is available to download from the product document section. The suitability of these conductor hinges for fire doors depends on the construction of the door. Always follow the fire test evidence for your door to ensure compliance.

We stock a wide range of fire door solutions, including door closers, intumescent seals, and compliant door hardware. Explore our complete range today.

Finish Your Door in Style with Simonswerk TECTUS

The Simonswerk TECTUS TE 540 3D Energy hinge meets both the functional and visual expectations of contemporary architectural design. Behind the minimalist aesthetic is a robust, high-performance hinge that offers precise adjustability and integrated power transfer.

This model is available in satin stainless steel, satin chrome, and satin nickel finishes as standard. We also offer a wide range of complementary door hardware in matching finishes, allowing for a consistent and coordinated look across the door.

For alternative finishes, including matt black, bronze, and brass, explore the wider Simonswerk TECTUS range. The TECTUS TE 540 3D is available in additional finishes and provides the same concealed design without the power transfer functionality. Contact our technical team to discuss the options to find the right finish for your door.
