Simonswerk TECTUS TE 340 3D Concealed Hinges

TE 340 3D Concealed Door Hinges for On-Door Adjustment

Simonswerk TECTUS TE 340 3D concealed hinges provide superior performance, specifically engineered for residential doors and heavy-duty doors. Combining precision, strength, and a considered design, these invisible hinges ensure ease of integration and reliable functionality. They are ideal for projects requiring attention to detail at all levels.

Key Product Features:

• Choice of 6 finishes
• 3D adjustment
• Maximum load capacity: 80kg
• Fully concealed hinge system
• Burglar resistance
• Suitable for timber and steel doors
• Suitable for timber, steel, and aluminium frames
• Non-handed
• Maintenance-free slide bearings
• Suitable for unrebated doors
• Maximum opening angle: 180°
• Residential and heavy-duty use
• CE, UL, IFT,  and UKCA quality marked
• Warrington Fire certification

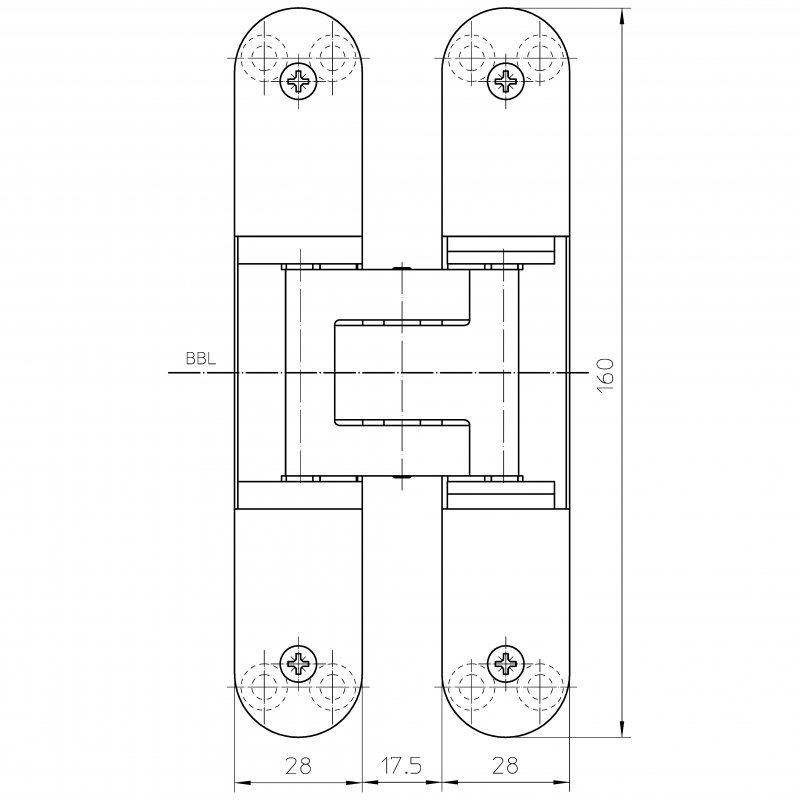

• Overall dimensions: 160mm x 73.5mm

Invisible on Closed Doors

The TECTUS TE 340 3D hinge remains entirely invisible when the door is closed. They deliver an uninterrupted appearance that highlights the visual appeal of doors and surface-mounted ironmongery. By removing visible door hinges, interiors achieve a minimalist aesthetic. This allows the artisanship and materials of the doors and frames to be brought to the forefront.

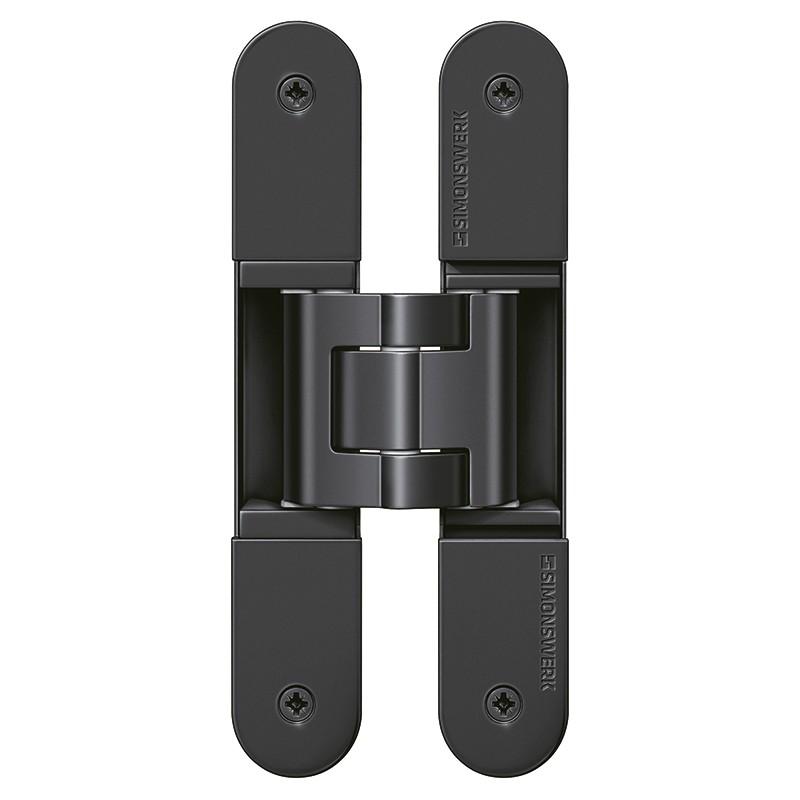

The hinge forends and mechanism can be seen when the door is used, so they’re available in a wide range of finishes, including stainless steel, matt black, and bronze. Select a finish to match existing door hardware. Four small hinge cover plates are provided to conceal the main screw fixing, to provide a neat overall look.

As there is no visible hinge knuckle when doors are closed, these hinges provide a level of burglar resistance. The mechanism cannot be accessed or tampered with when the door is shut. So, these hinges offer increased security alongside a flush finish.

Exceptional 3D Hinge Adjustability

With full 3D adjustment capabilities, the Simonswerk TE 340 3D hinges offer precise alignment in height, side, and depth. This ensures consistently smooth operation and perfect fit throughout the life of the door, simplifying both installation and maintenance.

Accurate adjustments are critical, especially in heavy-duty door installations, where precise operation is a necessity. The adjustments have the following range: compression +/- 1mm, side +/- 3mm, and height +/- 3mm.

Engineered for Robust Durability

Constructed from high-quality materials, these concealed door hinges are built to withstand heavy usage. Supporting adjusted door weights of up to 80kg per pair, the TECTUS 340 3D hinge delivers robust performance suitable for both residential and commercial environments. A fire rated version is available in the TE 340 3D-FR concealed hinge, which has an integrated intumescent kit. For heavier doors, consider the TE 540 3D hinge with a load capacity of 120kg.

Maintenance-free bearings further enhance reliability and reduce operational costs, providing a dependable solution for long-term installations. Do not oil these hinges, as it can damage them. Instead, as part of your regular door maintenance routine, check that the door opens and closes without obstruction and adjust hinges as necessary.

Versatile Installation Across Door Types

Versatility is a huge benefit of using the TECTUS TE 340 3D hinge. It can be installed on timber or metal doors and is compatible with timber, metal, and aluminium frames. Detailed installation instructions allow installers to achieve professional, consistent results every time. The cutter size required is 24mm, with a 30mm collar ring diameter.

Ideal for use in private residences, luxury flats, hotels, and public buildings, these hinges simplify concealed hinge installations and ensure reliable functionality. Templates, a universal milling frame, and a drilling jig are available. Contact us for more details if these are required for your project.

Simonswerk for Quality and Functionality

Invest in Simonswerk TECTUS hinges for exceptional quality, aesthetics, and proven performance. Perfect for new installations or refurbishment projects, these hinges blend elegance, durability, and functionality in one unit. Trust Simonswerk to provide concealed hinge systems that meet the highest standards.
