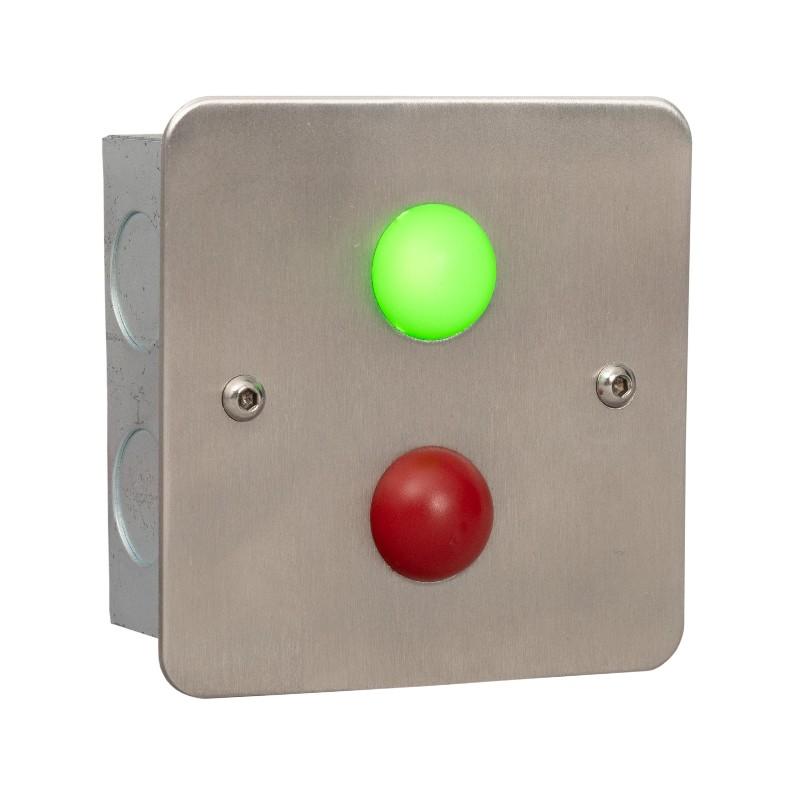

LED Door Traffic Light for Access Control Systems
This LED traffic light indicator is a flush-mounted unit designed to visually signal door status as part of an access control system. Whether you're managing interlocking doors, securing sensitive areas, or simply need a clear signal to show whether a door is locked or unlocked, this traffic light for doors delivers practical, visible results. It’s ideal for locations where sightlines to the door are blocked or where instant clarity is essential.
Key Product Features:
- TLI-85: Traffic light indicator
- Operating voltage: 12 - 24V DC
- Current: 20mA
- Red or green LED indicator
- The red or green operation can be switched
- Security screws (allen key type)
- Comes flush mounted as standard
Convert to surface mounted with EXTR03 aluminium extrusion, sold separately
- Easy clean surface
- Ideal for both general and sensitive areas
- Supplied complete with flush box, screws, and instructions
- Distance between fixing holes: 60mm
- Dimensions: 85mm x 85mm x 15mm
- Boxed weight: 200g
Traffic Light Door Status Indicator with Clean Design
The TLI-85 is supplied flush-mounted for a low-profile installation, offering a modern and discreet finish suited to commercial interiors, healthcare settings, and education environments. It's particularly effective when installed alongside concealed door closers and flush-mounted push to exit buttons, maintaining a consistent aesthetic across the door.
Security fixings deter tampering and make it a reliable solution for unsupervised locations or areas with high public traffic. It also supports high hygiene standards with an easy wipe surface.
The EXTR03 aluminium extrusion is sold separately and can be used where surface mounting is required. Alternatively, an architrave traffic light unit is surface mounted and ideal for narrow door stiles or where space is limited.
Clear Visual Feedback for Access-Controlled Doors
The TLI-85 door access control traffic light indicator gives a clear visual signal to show the status of a door. Either the red or green LED will be active at any given time, and you can configure which colour represents which status based on your specific site requirements.
Standard Access Control Systems
In general setups, the light can be set to match your security procedures. For example, green can show the door is secure and locked, while red signals it’s unlocked or unsecured. Or this can be reversed, depending on how you want to communicate status. The flexibility means it can support user expectations.
Timed Door Schedules
For doors that follow a timed schedule, such as those locked overnight and unlocked during the day, the TLI-85 helps show when access is available. In this case, red could indicate the door is locked outside of working hours, while green shows it’s unlocked during operational times. This setup is ideal for commercial buildings, offices, warehouses, or other facilities with scheduled access.
Interlocked Door Systems
In interlock configurations where only one door can be opened at a time, the indicator helps manage traffic flow and prevent both doors from being open at once. Red might show that another door in the sequence is open, meaning access is temporarily restricted. Green could then indicate that all other doors are secure, allowing the next door to be opened safely. This setup is ideal for use in children's nurseries, schools, or controlled healthcare environments.
The door lock interface module is available if you require a two-door interlock setup.
Remote Door Status Monitoring
The TLI-85 is especially useful when the person managing access doesn't have direct sight of the door. It can be installed in a nearby office, reception desk, nurse station, or control room to provide a clear door status update. This allows staff or security teams to instantly see whether a door is locked or unlocked, without needing to check in person. Again, the choice of whether red or green represents secured or unsecured can be tailored to match site preferences.
Traffic Light Indicator for Door Access Control
Add the convenience of a traffic light door entry system to your facility today. Complete your setup with our full range of access control and electric locking components, or get in touch with our technical team for expert guidance tailored to your site’s specific requirements.
