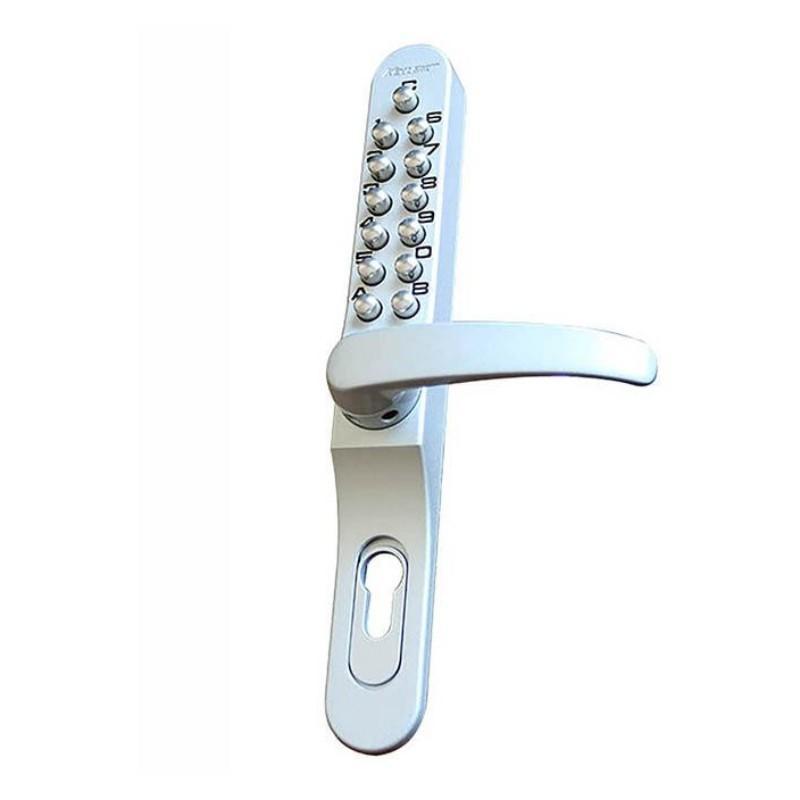

Keylex K700L Digital Lock
The Keylex K700L mechanical digital lock offers secure code access with key override.
Read moreKeylex K700 Mechanical Digital Lock with Lever Handle
The Keylex K700L is a high security mechanical digital lock designed for standard duty use. Built for doors that see regular daily use, it provides secure code based access control without the need for wiring, or batteries.
It has a key override function (euro profile cylinder and lockcase not supplied), giving building managers or other authorised personnel guaranteed access at all times, even if the code has been changed.
Key Product Features:
- Standard duty
- High security
- 12 button mechanical digital lock
- Lever handle operation
- Non handed
- Euro profile key override function (lock and cylinder not included)
- Over 4,000 selectable codes
- Code combination of up to 12 buttons
- Recommended 3 to 6 digits
- Code scramble to enter the code in any order
- Slipping clutch mechanism to protect against forced attacks and vandalism
- Satin stainless steel buttons to prevent indication of button usage
- Free exit without code entry from the inside
- Passage function*
- Removable mounting pillar to suit common DIN cylinder lockcases
- Suits 65mm thick doors
- Suits stiles at least 45mm wide
- Ideal for external aluminium and hollow metal door
- Tested to BS 8607: 2014 Grade 3
- Tested to BS EN 1634-1 on timber/mineral based doors*
If a key override facility is not required, blank escutcheons are available to order as a special. Fixings for doors thicker than 65 mm can also be specially ordered.
*The passage function may be disabled if it is not required, but it must be used when installed on a fire door. The Keylex 700 also requires a compatible lockcase and intumescent protection (not included). Contact us for further information.
Code Based Access With Key Override
The Keylex 700 Series delivers secure, code based access for everyday users, removing the hassle of key management. There are no batteries, wiring, or electronics to maintain, making the Keylex 700 digital lock both cost-effective and straightforward to install.
It also includes a Euro profile key override facility (cylinder and lockcase are not supplied). This makes sure building managers and authorised personnel can always gain entry via key. This is especially useful in sites where codes are updated regularly for security reasons. The override provides an additional layer of security back-up, combining the convenience of a digital lock with the reassurance of controlled key access.
The K700 keypad also offers a passage function, which allows free access from both sides when enabled, ideal for busy daytime use or during deliveries. Free egress from the inside lever is maintained at all times to support safe exit.
Keylex 700 Mechanical Digital Codelock For Security
The K700 digital lock uses a 12 button stainless steel keypad that supports more than 4,000 possible codes. Non-sequential entry means the digits can be pressed in any order.
The manufacturer recommended code length is 3 to 6 digits, making it easier to remember while maintaining strong security. The satin stainless steel buttons resist visible wear, helping to prevent unauthorised users from identifying the code through frequently pressed keys.
The slipping clutch mechanism helps protect the internal working of the lock even under forced attack.
See the product documents section for the downloadable Keylex 700 instructions manual, including code change guidance.
Fire Door Compliance
The Keylex 700 lock, when fitted with the appropriate lockcase and intumescent protection (not supplied), has been assessed to BS EN 1634-1 for 30 minutes of fire resistance on timber doors. Contact our team to enquire if you need the lockcase and intumescent to suit this digital lock.
Although the passage function can be disabled, it must remain in use on fire rated doors to achieve certification. Always consult the fire test evidence for your specific doorset.
Discover our full range of fire door ironmongery to complete your fire door installation.
Choosing The Right Setup For Your Door
If you require a cylinder and lockcase to suit this digital lock, explore our range of euro profile cylinders and lockcases, or contact our team for expert guidance.
For different levels of security, the wider Keylex range offers:
- K500L is suitable for low security applications
- K800L is designed for medium security
- K2100K is built for high security environments
This way, you can match the lock and supporting components to the exact needs of your project with confidence.
