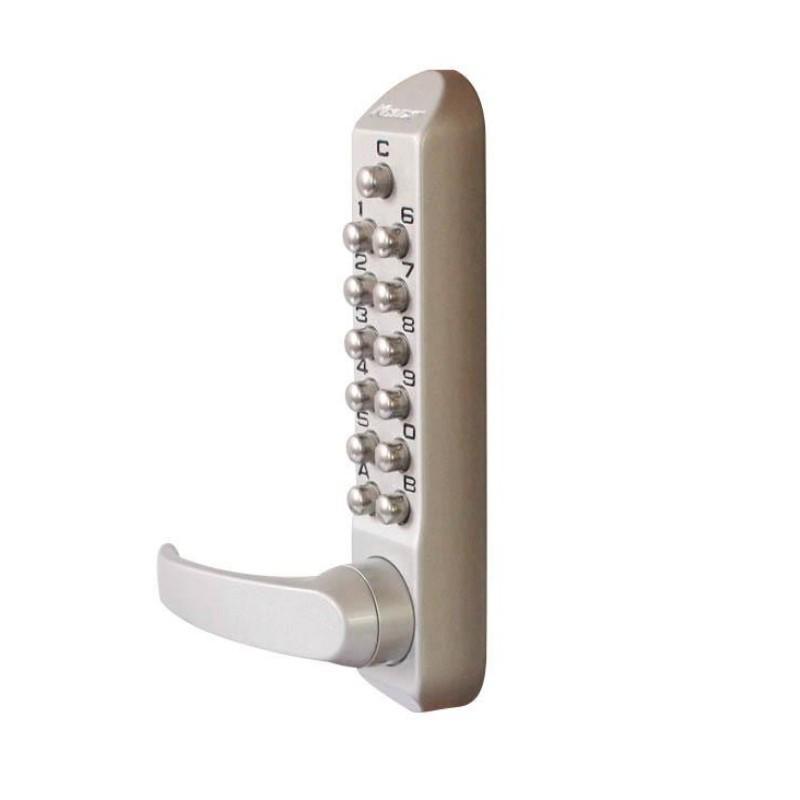

Keylex K500L Digital Lock
The Keylex 500 is a mechanical digital lock for internal low security doors. No keys, batteries or wiring. Code entry, free exit, and passage mode.
Read moreKeylex 500 Digital Lock for Internal Doors
The Keylex K500 is a mechanical push button door lock with lever handle operation, designed for internal doors that need secure but convenient access control. With no wiring, batteries or keys required, it offers a cost effective way to manage entry for multiple users. Ideal for offices, separating public and staff only areas, and other standard duty applications, the Kylex 500 provides code based entry, free exit from the inside, and a passage function when unrestricted access is needed.
Key Product Features:
- Standard duty
- Low security
- 12 button mechanical digital lock
- Lever handle operation
- Non handed
- Latch with adjustable 60/70mm backset
- Over 4,000 selectable codes
- Code combination of up to 12 buttons
- Recommended 3 to 6 digits
- Code scramble to enter the code in any order
- Slipping clutch mechanism to protect against forced attacks and vandalism
- Satin stainless steel buttons to prevent indication of button usage
- Free exit without code entry from the inside
- Passage function
- Suits 45mm thick doors*
- Suits stiles at least 80mm wide
- Ideal for internal timber and composite doors
*Contact our team if you require an extended fixing kit, available by special order for thicker doors
Mechanical Code Lock for Internal Doors
The Keylex K500L is ideal for internal doors that need controlled access without the complexity of wiring or electronic locking. That means no downtime, no wiring, and no maintenance tied to power supplies.

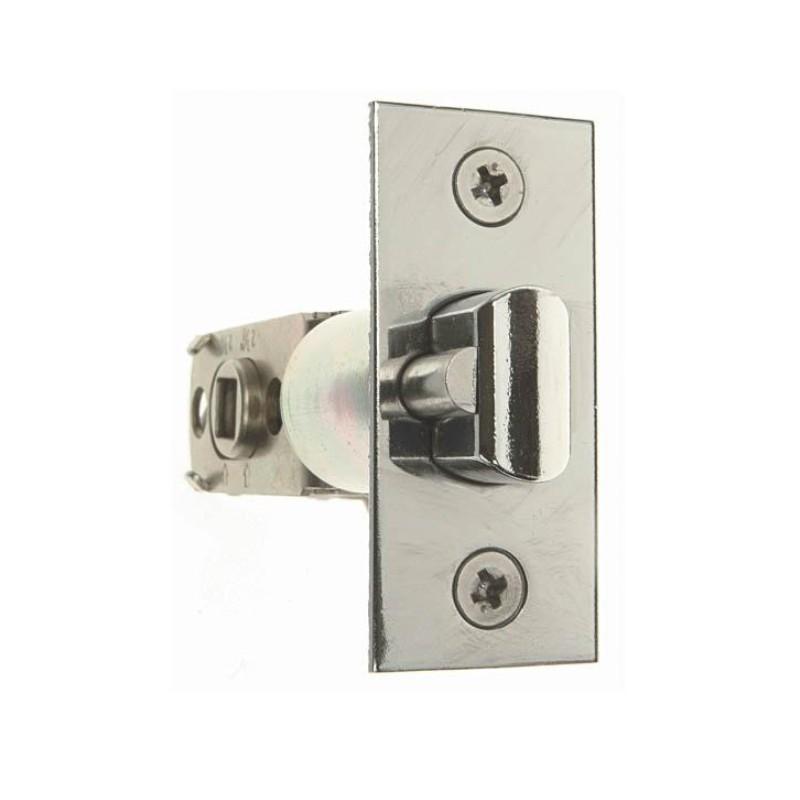

This mechanical digital lock features a 12 button keypad, lever handles, and a deadlocking tubular latch with an adjustable backset of 60mm or 70mm. The slim body design allows installation on stiles as narrow as 80 mm, and the supplied fixings suit doors up to 45mm thick.
Code Options
The keypad offers more than 4,000 possible code combinations. Keylex recommends using codes between three to six digits. Thanks to the code scramble feature, users can press digits in any order, making codes easier to input. Stainless steel buttons prevent wear marks that could otherwise reveal the most-used digits.
For a Keylex 500 code change, remove the external unit from the door and use a slotted screwdriver to adjust the reverse side of the buttons. Once the new code has been set, refit the lock and test it to confirm correct operation.
Download the Keylex 500 instructions as a PDF from the product document section.
Ideal Applications for the Keylex K500 Digital Lock
- Retail: Separate stockrooms or staff zones from public areas
- Education: Secure staffrooms while allowing quick escape
- Commercial: Manage access to internal restricted areas
Where high security or external door use is needed, consider moving up to the Keylex K700L with key override or the Keylex 2100K for heavy duty performance.
Discover our full range of digital keypad door locks, including the Keylex K800L for medium security internal doors, as well as models designed for multipoint locking systems, external gates, and fire rated doors.
