Keylex K800L Digital Lock

Keylex K800L Digital Lock with Lever Handle

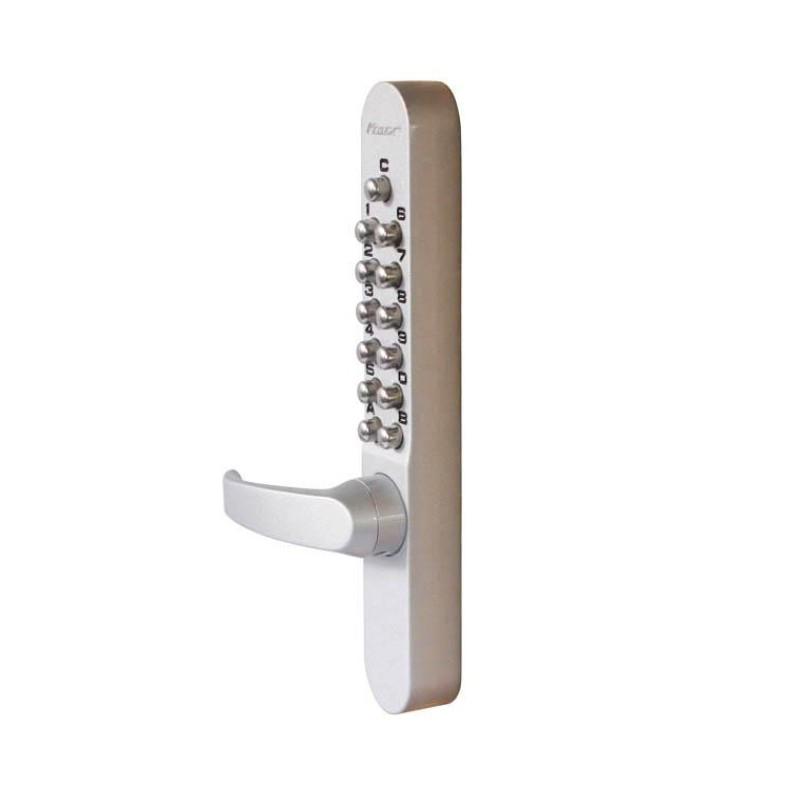

The Keylex K800L is a mechanical digital door lock designed for medium security and standard duty applications. It removes the need for keys, batteries, or wiring, making it a reliable, low-maintenance, and cost-effective solution. With over 4,000 code combinations, free egress from inside, and a passage mode for busy periods, the K800L delivers practical mechanical access control for timber and composite doors.

Key Product Features:

• Standard duty
• Medium security
• 12 button mechanical digital lock
• Lever handle operation
• Non handed
• Latch with 60mm backset
• Over 4,000 selectable codes
• Code combination of up to 12 buttons
• Recommended 3 to 6 digits
• Code scramble to enter the code in any order
• Slipping clutch mechanism to protect against forced attacks and vandalism
• Satin stainless steel buttons to prevent indication of button usage
• Free exit without code entry from the inside
• Passage function
• Suits 45mm thick doors*
• Suits stiles at least 80mm wide
• Ideal for timber and composite doors
• Tested to BS 8607: 2014 Grade 3

*Extension kits to suit doors up to 58mm thick or over are available as special orders. Please contact our team to enquire.

Keylex K800 for Practical Security

The Keylex K800 delivers controlled access without the hassle of keys. Users simply enter the programmed code and operate the lever handle. The free exit function makes sure that doors can always be opened quickly and safely from the inside, which is critical for both safety and everyday practicality.

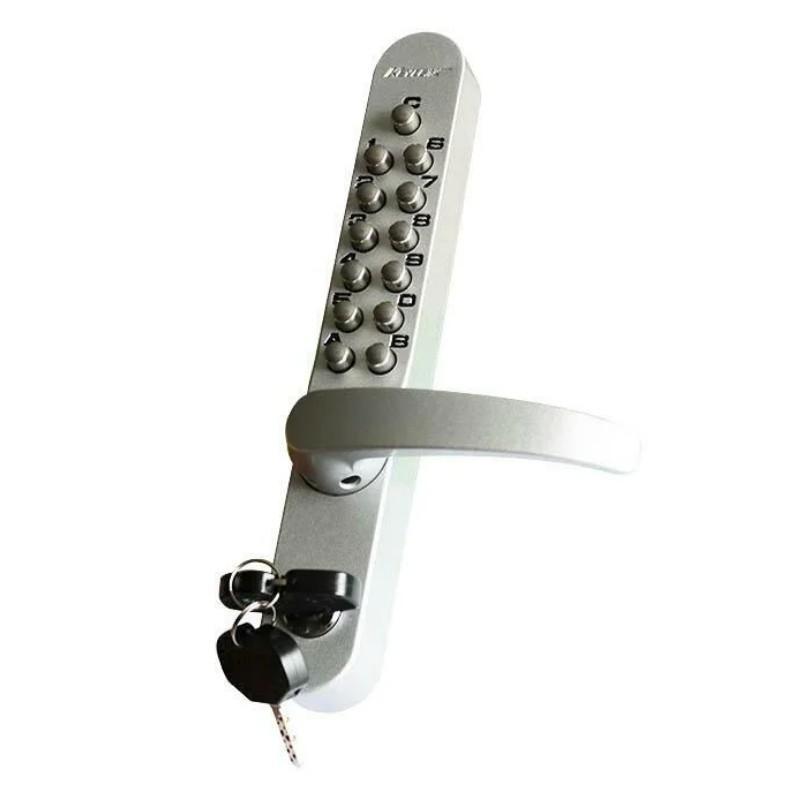

If you need a digital lock with key override, consider the Keylex K700. This model ensures authorised key holders always retain access.

Keylex 800: Medium Security for Busy Doorways

Engineered for many hundreds of operations per day, this lock is suited to medium security applications such as offices, stockrooms, staff areas, and service doors. Its stainless steel buttons resist visible wear, protecting code secrecy, while the slipping clutch mechanism shields the internal lock components from forced attack.

If your door is low security, then the Keylex K500L may be more appropriate. For higher security requirements, the Keylex K2100K  heavy-duty model with knob operation provides increased protection for demanding environments.

Keylex K800 Digital Lock: Installation and Door Suitability

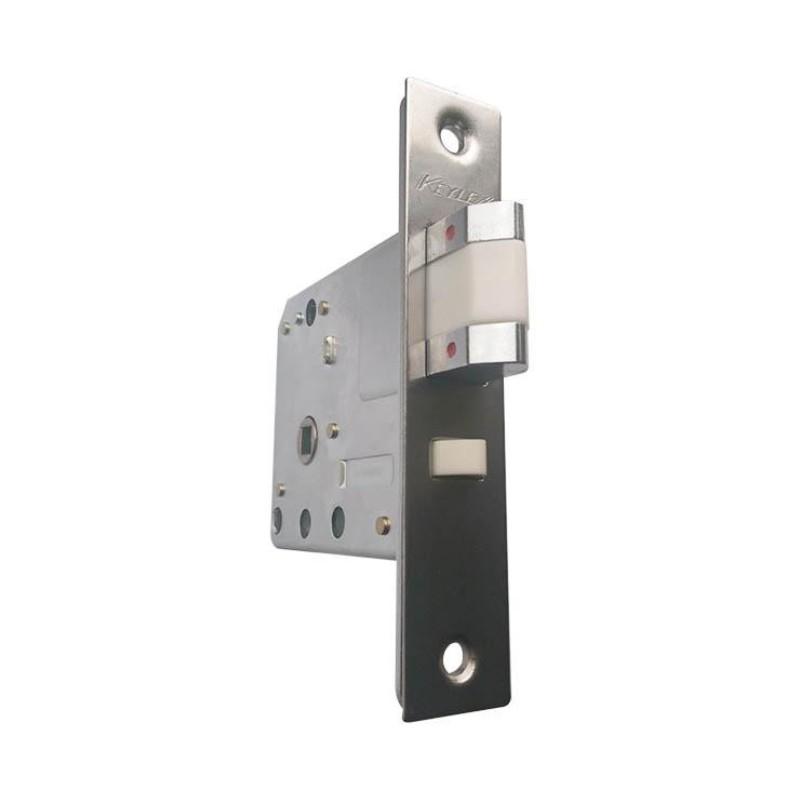

The K800L digital lock is supplied with a 60mm backset latch and an installation template. Its non-handed design means it can be adapted on site to fit both left and right hung doors.

This Keylex digital lock is designed for timber and composite doors. It is supplied with a standard fixing pack for doors up to 45mm thick. Extended fixing kits are available for thicker doors if needed so contact our team to enquire.

Flexible Access Options with the Keylex K800L

The Keylex K800L supports daily use by multiple authorised users using the same code. Codes of three to six digits are recommended by Keylex, but it can support up to 12-digit codes if required.

The scramble feature allows digits to be entered in any order, reducing delays caused by input errors.

How to Set and Change the Code on a Keylex K800L

The procedure for changing codes requires the removal of the lock body from the door and a slotted screwdriver to adjust the buttons.

Each button is marked with a line at right angles to the screwdriver slot, with corresponding marks on the back plate. Rotating a button aligns the marks, which sets that button as part of the new code.

For installation and code-change guidance with diagrams, see the product documents section, where the Keylex K800L instructions are available as a downloadable PDF.

Using the Keylex K800L Passage Function

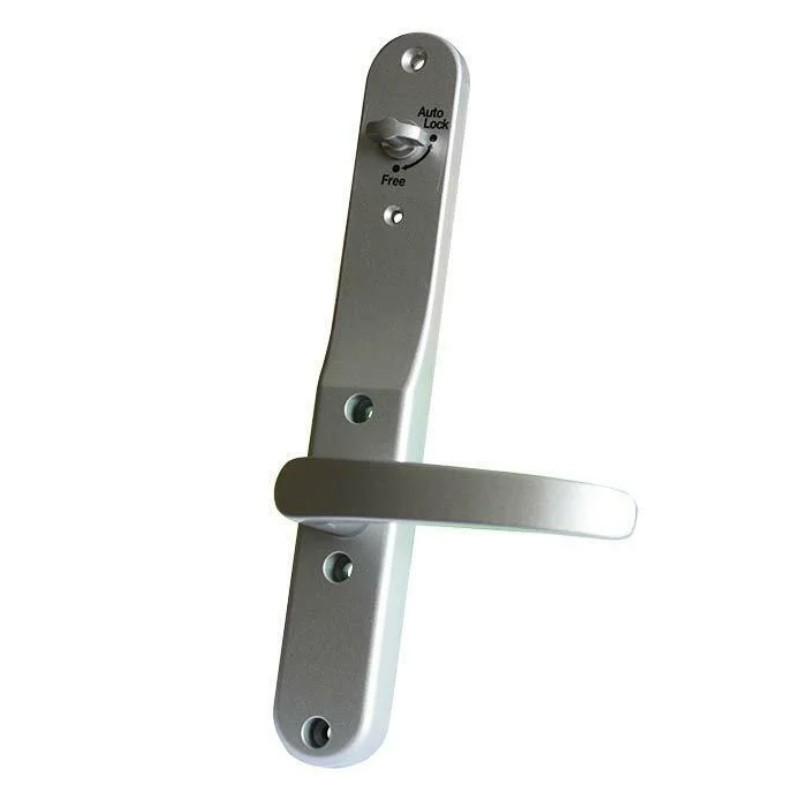

The inside backplate contains a turn control that engages the passage function. This allows the door to be opened without code entry, making it useful during high traffic periods or when receiving deliveries. Resetting the control returns the lock to coded entry mode.

Choosing the Right Keylex Digital Lock

The Keylex 800 series is designed for standard duty and medium security applications. Selecting the right digital lock depends on factors such as security risk level, expected door traffic, operational requirements, and door location.

Explore our full range of mechanical digital locks, including:

• Fire rated models for use on fire doors
• Back to back digital lock keypads
• Digital locks with knob or lever operation
• Marine grade options for external use
• Multipoint lock compatible solutions
• Gate suitable digital locks for outdoor access control

If your project requires an electronic access control system, we also supply a wide selection of electronic locking solutions.

Our technical team is on hand to provide guidance tailored to your door type and security needs, making sure you have the most appropriate security solution for your door.
