Intumescent Kit for Simonswerk TECTUS TE 540 3D Energy Hinge

Intumescent Pack to Suit The TECTUS TE 540 3D Energy Hinge

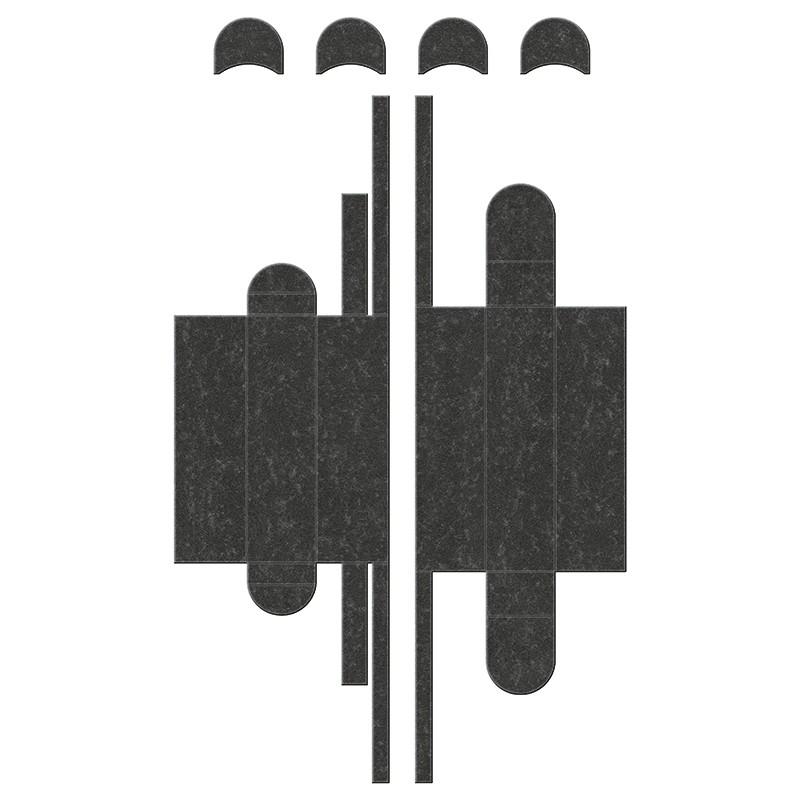

The 8823 intumescent kit is designed for use with the Simonswerk TECTUS TE 540 3D Energy concealed hinges. It provides essential passive fire protection for  the aesthetic and functional concealed hinge systems with integrated power transfer.

Key Product Features:

• Black finish
• 2mm thick
• Suitable for 30 minute fire doors
• Tested to BS EN 1634-1:2014
• 6-piece kit
• Mono-ammonium phosphate
• Self-adhesive backing

Fire Safety for Powered Concealed Hinges

When installing concealed door hinges, material must be removed from both the door and frame to accommodate the hinge mechanism. If the door is a fire-rated door, it is essential that its fire integrity is maintained in the event of an emergency to slow the spread of fire throughout the building.

To preserve this integrity, intumescent protection is required around the hinge area. Intumescent materials expand when exposed to heat, sealing any gaps created during hinge installation and helping to contain the fire.

Where TECTUS fire rated hinges are installed on timber fire doors, the appropriate intumescent should also be installed. This helps to seal the hinge cut-out area and maintain the door’s fire resistance.

The TE 540 3D concealed hinge and 8823 intumescent pack have been fire tested to BS EN 1634 and are Certifire Approved for use on 30 minute timber fire doors. The Certifire certificate is available to download from the product documentation section. Always follow the specific test evidence and guidance for your chosen fire door system to ensure compliance.

Accurate Fit for Reliable Performance

This kit is self-adhesive and pre-cut for convenience and to aid quick, consistent, and compliant installation. It should be applied to both the door and frame sides of the hinge body and behind the forends.

Each set includes all parts needed for one hinge.

For Conductor Concealed Hinges

The TECTUS TE 540 3D Energy is a powered concealed hinge designed to discreetly transfer power for use with electronic locks and access control systems. This hinge maintains a clean architectural aesthetic while supporting modern access technologies.

We have the TE 540 3D Energy hinge available to order in satin chrome, satin stainless, and satin nickel.

The wider Simonswerk TECTUS hinge range is available in a variety of finishes to suit different specifications. If you're looking for a fire rated concealed hinge in satin brass, bronze, or matt black, we recommend the TECTUS TE 540 3D FR.

We offer a broad range of door closers and hardware in finishes to complement the TECTUS range. Explore our range today including concealed door closers, lever handles, and door stops

Need help with hinge selection or finish matching? Our team is on hand to offer expert guidance.
