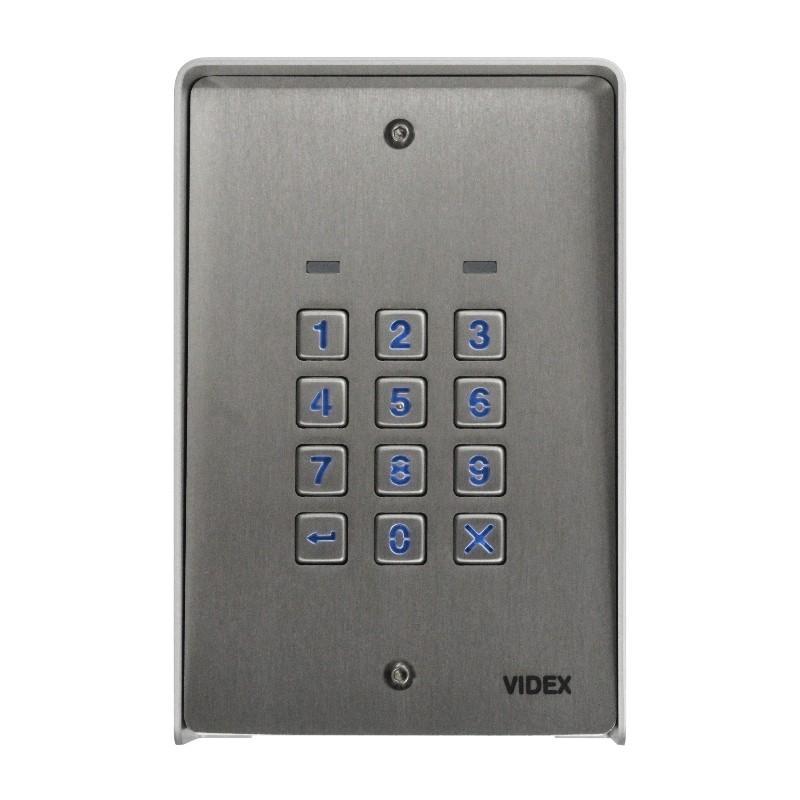

Videx 8901 Keypad for Access Control
The 8901 Videx standalone keypad provides a simple and reliable way to control access using PIN codes. This surface mounted keypad allows authorised users to unlock a door by entering a programmed code, removing the need for keys or fobs.
Designed as a self contained unit, the keypad includes integrated relays so it can operate directly with electronic locks and other access control components. The vandal resistant stainless steel construction makes it suitable for external entrances and areas where durability is important.
Key Product Features:
- MPN: 8901/S
- Standalone keypad
- Surface mounted with rainshield
- Vandal resistant construction
- Input voltage: 12-24V AC or DC
- Low current operation
- Maximum current: 70mA
- Relay Contacts: 24V AC/DC at 3A
- 3 programmable access codes
- Code length: 4-8 digits
- 3 relay outputs (1 code per relay)
- Programmable relay time (1-99 seconds) or latching mode
- 2 switched 0V push to exit inputs (relays 1 and 2)
- Blue backlit keypad buttons with adjustable brightness
- Visual and acoustic programming feedback
- Material: 316 stainless steel
- Operating temperature: -10°C to +50°C
- Dimensions: 108mm × 165mm × 60mm
8901 Videx Standalone Codelock Keypad for PIN Access
The Videx 8901/S keypad provides a secure access control solution. Authorised users can unlock the connected door or gate by entering their programmed PIN code on the keypad. Up to three access codes can be stored, with each code linked to its own relay output.
Relay activation times can be programmed between 1 and 99 seconds, or set to a latching mode. This gives you the flexibility to suit your security needs when setting up the keypad.
If you require a keypad with a higher number of user codes, explore our wider range of keypads. A variant of this Videx keypad is also available that supports up to 1000 user codes with two relay outputs. Contact our team for guidance on selecting the right option for your installation.
Durable Videx Keypad for External Use
The 8901 keypad is made from brushed 316 grade stainless steel, giving it a durable and vandal resistant construction that suits external doors and busy entrances.
Blue backlit buttons help make the keypad easy to see in darker environments, such as poorly lit entry points. The brightness of the backlighting can also be adjusted to suit the surrounding area.
During use and programming, the keypad provides visual and acoustic feedback so installers and users can clearly see when a code has been entered or a setting has been accepted.
This combination of durable construction and clear feedback makes the keypad suitable for a wide range of buildings.
8901 Videx Keypad for Door Entry Systems
The Videx 8901/S offers a simple and dependable way to control access using keypad entry. Its anti-vandal design, backlit buttons, and flexible operating voltage make it easy to integrate with a wide range of door access systems.
Videx also offer combined intercom and keypad systems, such as the DK4K audio intercom. For installations where video is preferred, the Videx ERA intercom system also provides camera and proximity reader functionality.
