CQR 8 Core Copper Cable | Alarm Cable | 100m

CQR 8 Core Full Copper Alarm Cable

This CQR alarm cable is designed for low voltage systems such as access control and intruder alarms, where performance and reliability are essential. Its solid copper conductors reduce voltage drop across longer cable runs, making it ideal for professional installations where consistency matters.

Key Product Features:

• CQR intruder cable
• MPN: CAB8/WH/100/PR
• 8 multi core
• BS 4737 Type 2 cable
• Euro class: ECA
• 100% copper cores
• Conductor type: tinned copper
• Conductor size: 0.182
• CAS: 0.182 mm²
• Number of cores: 8
• Number of strands in core: 7
• AWG: 25
• Insulation material: PVC*

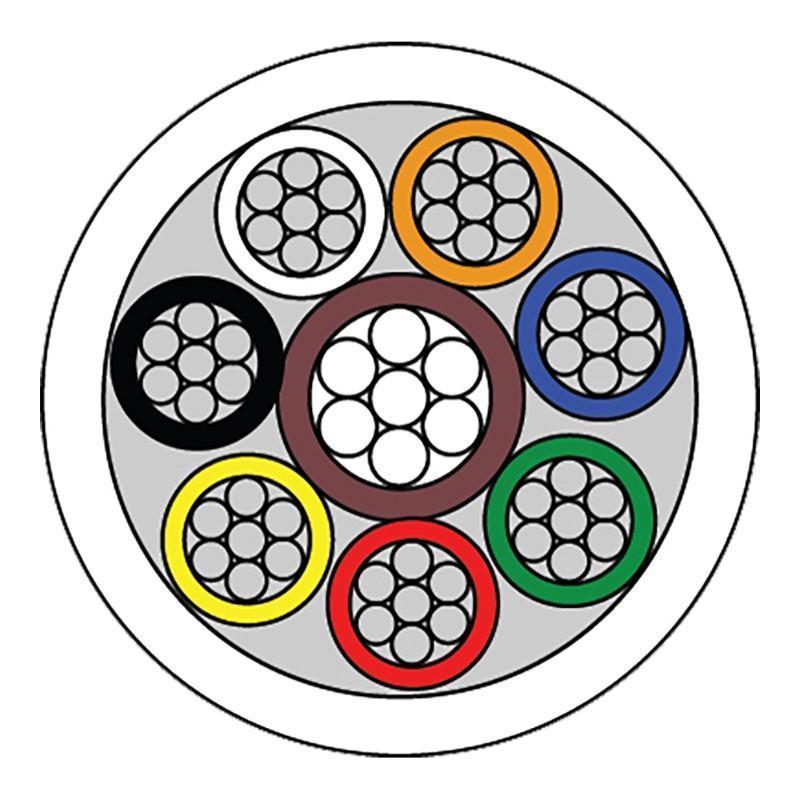

• Insulation colour: RD-BK-YL-BL-WH-GN-OR-BN
• Insulation resistance @ 20°C: ≈ 96 MΩ/Km
• Resistance (Ω/km): 94.6
• Nylon ripcord colour: red
• Coloured rip cord meets the requirements of BS 4737 for identification
• Nominal diameter: 4.2mm
• Installation temperature: +5°C to +40°C
• Operating temperature: -10°C to +70°C
• Maximum voltage: 50V
• Maximum current: 1Amp
• Easy to strip
• Pliable in use
• Internal use
• EN 50575 CPR certified
• White PVC sheath
• 100m reel
• Weight: 3.195kgs

*If you require an LSF or LSZH variant, please contact our team to enquire.

Copper Cable for Access Control and Security Systems

This CQR 8 core cable is built specifically for low voltage applications like door access systems where you could be wiring maglocks, break glass units and exit buttons. The full copper construction provides better conductivity, helping prevent voltage loss and unreliable connections.

For networked access control systems, we also have a Cat5e and Cat6 cables available.

Why Choose a Full Copper Access Control Cable?

Using a full copper cable is critical in systems where reliable signal and power transmission is non-negotiable. Copper offers lower resistance than copper-clad aluminium, so this alarm system cable performs better over distance.

If you're looking for a more economical option, consider the 8 core CCA alarm cable, which has copper clad aluminium cores instead of solid copper. It offers good performance for standard applications at a lower cost.

Professional CQR 8 Core Alarm Cable

This professional security alarm cable is designed for efficient, reliable installation across a wide range of access control and security systems. The PVC sheath strips back easily with the red nylon ripcord without damaging the copper conductors and remains flexible during use, reducing the risk of core breakage during handling or termination.

Each core is colour coded for fast identification, helping to minimise connection errors during installation. The red nylon ripcord is included for identification in accordance with BS 4737.

Some sites may have specific requirements around cable construction. Alternative cables are available, such as LSF, LSZH, external, and screened cables to minimise electromagnetic interference or meet fire safety specifications. Always check the needs of the site when selecting your cable.

8 Core Cable for Access Control to Complete Your System

This 8 core copper cable is the ideal choice for connecting components within our access control kits. We offer a curated selection of standalone kits featuring the essential hardware required for secure door entry and exit control.

Explore our full range of access control kits. Additional items may be required depending on your setup, such as maglock brackets, backup batteries, and relays.

Visit our access control section to find the right combination for your project.
