ABLOY effeff 351M80 Electric Lock | 12/24V DC | Monitored

Assa Abloy 351M80 Motor Lock for Controlled Access and Fire Door Compliance

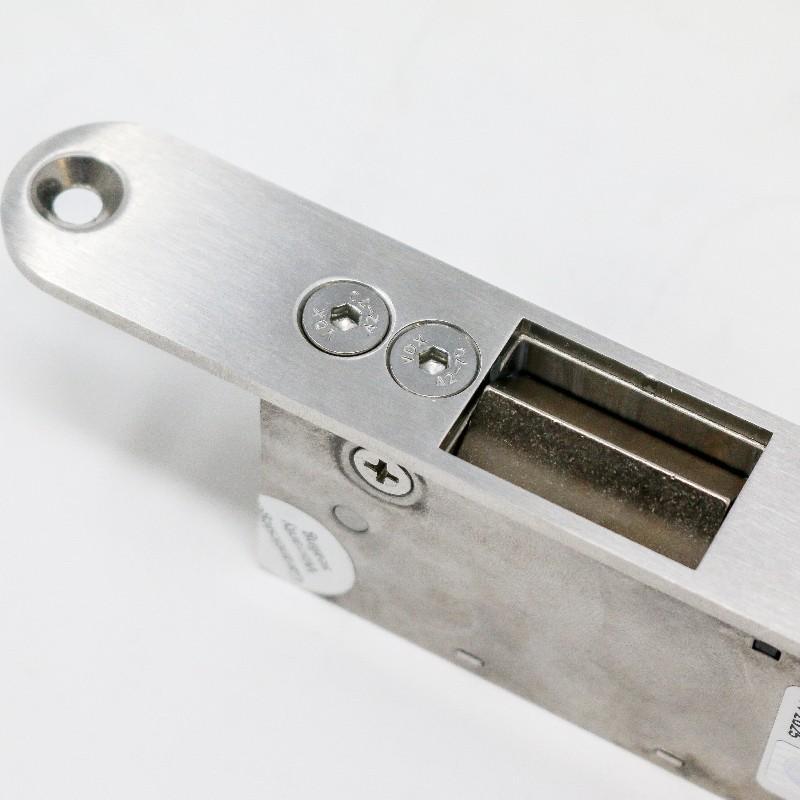

The ABLOY 351M80 is a fail safe electric motor lock designed for high performance locking on single or double swing doors. It can be installed horizontally or vertically, concealed in either the door leaf or frame.

This Assa Abloy electric lock offers quiet motor driven operation, unlocks under high preload pressure, and includes built-in monitoring contacts. It’s well suited for commercial buildings, healthcare facilities, and other controlled access environments, especially where fire safety and compliance are essential.

Select yes to fire rated using the drop down menu to include the intumescent kit for fire doors.

Key Product Features:

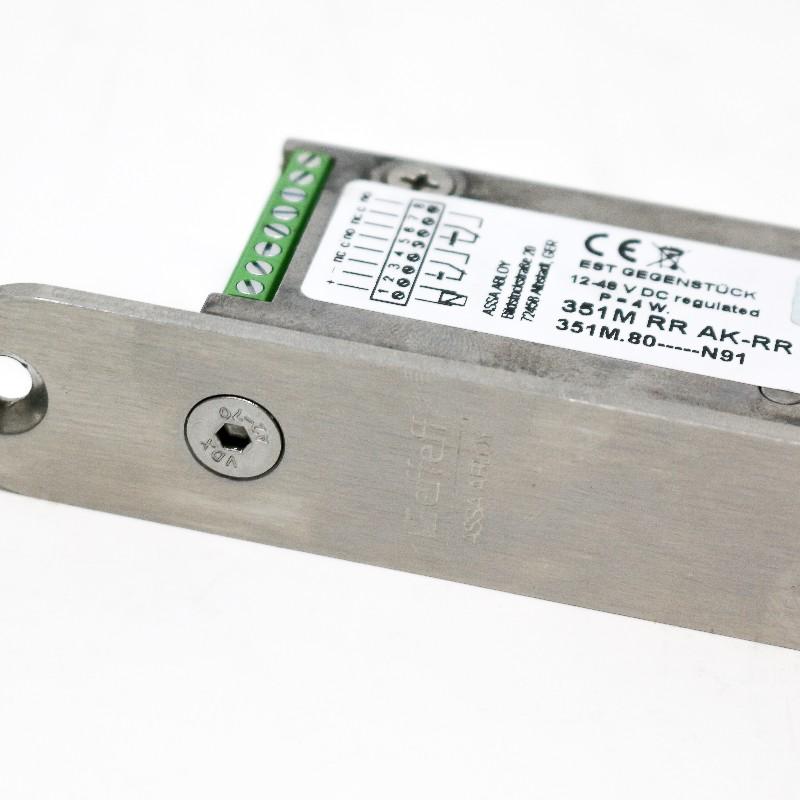

Operating voltage: 12V-48V DC ± 10 %

• Current consumption with motor operation (approx. 1second):

          12V DC: 880mA

          24V DC: 520 mA

          48V DC: 270 mA

• Current consumption with continuous operation:

          12V DC: 480mA

          24V DC: 270mA

          48V DC: 150 mA

• Designed for single and double action swing doors
• Motorised locking
• Fail safe
• Quiet operation
• Vertical or horizontal mounting in the door frame or leaf*
• 5000N holding force
• Unlocks under preload of up to 5000N
• 10mm bolt throw

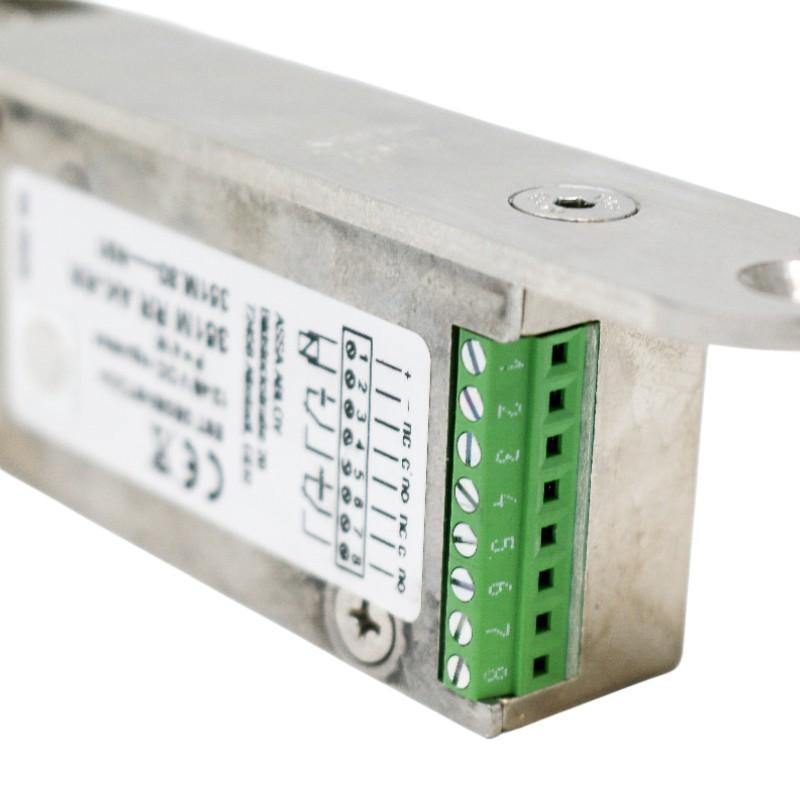

• Monitoring:

          Door contact (reed contact)

          Armature contact (relay contact)

• Dimensions compatible with 351U80 for upgrading
• Tested to BS 476 for FD30 and FD60 fire doors (when fitted with intumescent)
• EN 13637
• Stainless steel finish

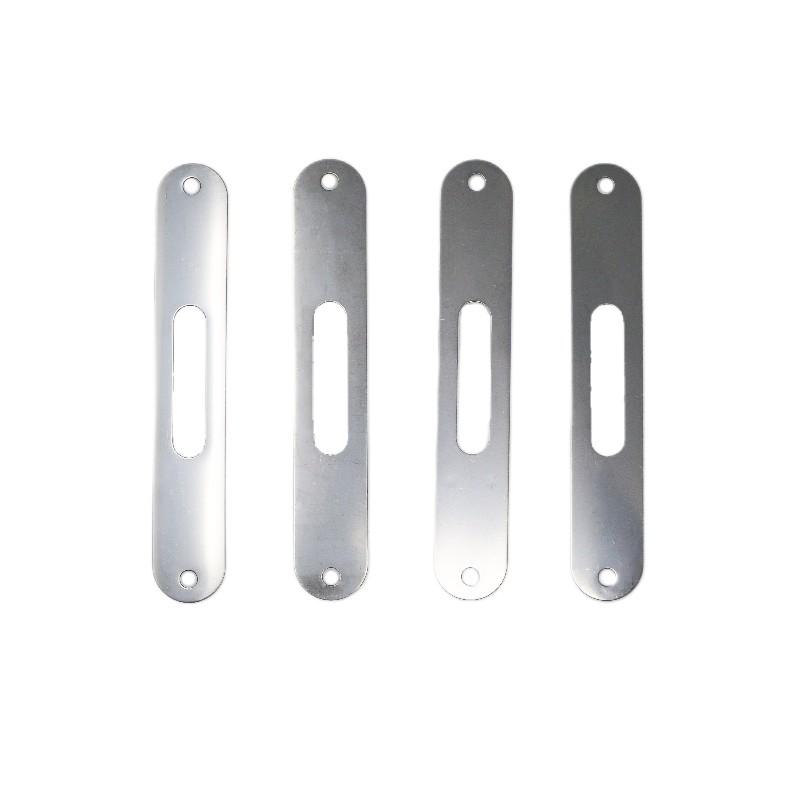

• Supplied with face and counter plate
• Dimensions: 200mm x 25mm x 42mm
• Rebate clearance 3mm (2mm-4.5mm)

*The 351M80 Assa Abloy motor lock is not suitable for mounting in the floor.

Assa Abloy eff eff 351M80: Product Update (Effective April 2025)

The 351M80 from Assa Abloy has been updated to feature a milled solid steel housing (previously laser-welded), enhancing strength and dimensional accuracy. The sensor system and internal magnets have also been improved.

While external dimensions and mounting hole positions remain unchanged, please note the following when using for repair or replacement:

• 351M units from April 2025 onwards must not be used with older counterparts (pre-April 2025).
• The counterpart must be replaced when updating an existing 351M installation.
• New 351M units are not compatible with surface mounted housing A08 and A09 brackets produced before April 2025. In these cases, both the mounting bracket and counterpart must be replaced.

For assistance with replacements or compatibility, please contact our team before ordering.

Quiet Electric Motor Lock for Access Controlled Doors

The ABLOY 351M80 provides secure, low noise locking. A controlled motor activates the bolt only when the door is in position, allowing the lock to engage smoothly into the strike plate. Unlocking happens instantly when power is cut, making it ideal for life safety and emergency exit applications.

Access control doors should be fitted with a reliable door closer to close the door securely after each use. This helps maintain both security and system integrity.

Assa Abloy offer a trusted range of closers to suit different applications:

• DC140A-1: Template adjustable door closer, power size EN 2–5
• DC300A: Valve adjustable closer, power size EN 3–6
• DC135: Fixed power EN 3 door closer with guide rail arm

351M80 ABLOY Lock for Fire Doors

When fitted with the correct intumescent materials, the 351M80 can be used on FD30 and FD60 fire doors as it has been tested to BS 476. Always check the fire test evidence for your specific door to confirm compliance.

The intumescent kit for the 351 electric lock is included when you select the fire rated option from the drop down menu. It is also available to purchase as a separate item.

Motor Lock Built for Security, Fire Safety, and Flexibility

The ABLOY 351M80 electric lock balances security, safety, and day-to-day practicality. It’s a solid solution whether you’re fitting out a new access control system or upgrading existing doors. With flexible voltage input options, quiet motorised locking, and the ability to unlock under high preload, it performs reliably even in challenging conditions.
