ABLOY EL560 Solenoid Lock 12/24V DC - 65mm Backset

ABLOY EL560 Solenoid Lock 12/24V DC - 65mm Backset

The Abloy EL560 Solenoid Lock 12/24V DC with a 65mm backset. Fire rated and non-fire rated versions available.



EL560

The Abloy EL560 Solenoid Lock 12/24V DC with a 65mm backset. Fire rated and non-fire rated versions available.

Read more
9 IN STOCK
NEXT WORKING DAY DELIVERY Order before 3:30pm
£545.00 VAT excl.
£654.00 VAT incl.

Accessories
Reference
Availability
Price
Quantity
Description Product Documents
Ask us a question
Ask us a question about this product
ABLOY EL560 Solenoid Lock 12/24V DC - 65mm Backset

ABLOY EL560 Solenoid Lock 12/24V DC - 65mm Backset

The Abloy EL560 Solenoid Lock 12/24V DC with a 65mm backset. Fire rated and non-fire rated versions available.



ABLOY EL560 Electromagnetic Solenoid Lock

The ABLOY EL560 solenoid lock is versatile making it the perfect solution for a variety of facilities. It is non-handed, suitable for use on wooden or metal doors and fail lockable/fail unlocked reversible. This ABLOY lock has 12/24V DC operating voltage.

Key Product Features:

  • Suitable for metal and wooden doors
  • Double action latch
  • High security
  • 2 points of security
  • Non-handed
  • Reversible trigger bolts to suit door handing
  • 65mm backset
  • 10mm double action latch bolt throw
  • 20mm dead bolt throw
  • Burglary-resistant
  • 12/24V DC operating voltage
  • Euro profile
  • Mechanical key override function
  • Reversible fail safe/fail secure
  • Split spindle function
  • Egress from inside at all times
  • Outside handle electrically controlled
  • Monitoring outputs:

          Door status
          Handle down
          Bolt deadlocked
          Bolt in
          Key cylinder used
          Sabotage loop

  • Tested to EN 12209
  • Meets the requirements of EN 1125 or EN 179 when installed with appropriate ABLOY door furniture
  • Fire rated version includes 2mm intumescent kit for FD60 fire rating
  • DIN standard
  • Lockcase dimensions: 168.5mm x 98mm
  • Forend dimensions: 235mm x 24mm

Key Features

Suitable for Metal and Wooden Doors: Ensure a seamless fit for various applications with compatibility across different door materials.

DIN Standard: Built to meet DIN standards, guaranteeing consistency, quality and reliability in accordance with industry benchmarks.

High Security: Prioritise security with a lock designed to withstand intrusion attempts. The 20mm dead bolt throw makes this electric door lock burglary-resistant.

2 Points of Security: The dead bolt is thrown when the door closes and the dual security points offer enhanced protection for your premises.

Mechanical Key Override Function: In situations requiring manual intervention the key override function offers a fail-proof solution. This allows authorised personnel to bypass electronic controls effortlessly.

EN 179 Compliance: The ABLOY EL560 is the perfect choice for access control systems for doors on escape routes. The requirements of EN 179 are met when this lock is fitted with the ABLOY Futura lever handle set and intumescent.

EN 1125 Compliance: Meet regulatory standards with confidence as the ABLOY EL560 fulfils the requirements of EN 1125 when installed with the appropriate ABLOY door furniture and intumescent. Please contact us to enquire as it is available as a special order.

Fire Rating: Opt for the fire-rated version which comes complete with a 2mm intumescent pack for use on FD60 fire rated doors.

Security and Compliance

Crafted by the renowned ABLOY, a trusted name in security solutions, this lock is meticulously designed to fortify your facility with robust protection as it is tested to EN 12209 for mechanical resistance. Electric locking as part of an access control system is the perfect security solution for managing access in your building.

Safety is uncompromised as this solenoid door lock has a split spindle. This ensures smooth egress from the inside at all times while the electrically controlled outside handle offers enhanced security. This solenoid lock prioritises occupant wellbeing without sacrificing security.

Versatility and Reliability

At the heart of the ABLOY EL560 lies versatility, making it suitable for a wide array of applications. It can operate on 12V or 24V DC and is suitable for installation on wooden or metal doors. This electromagnetic solenoid lock seamlessly integrates into your existing infrastructure, offering compatibility across diverse environments.

This electric door lock is easy to install and tailor to the needs of your door by selecting the functions required. The exit side handle and the handing of the trigger bolt can both be set with a 2.5mm Allen key. Our stock size has a 65mm backset although other sizes are available as special orders.

This solenoid lock is supplied in the fail locked mode so that when the power is off, the handle will not open the lock. When the power is on, the handle will open the lock. This can easily be changed at installation so that it is in the fail unlocked mode if required.

Elevate Your Security

Invest in the ABLOY EL560 electromagnetic solenoid lock today. It offers a robust solution backed by ABLOY's legacy of excellence. Upgrade your security infrastructure with this ABLOY lock which is designed to meet the rigorous demands of modern facilities.

Read More

Thumbnail of document
Abloy EL560 & EL561 - Technical Sheet
Thumbnail of document
Abloy EL560 & EL561 - Installation Instructions
Thumbnail of document

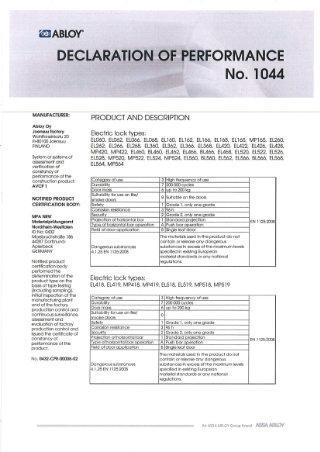

Abloy EL500 Series EN1125 - DOP
Thumbnail of document
Abloy EL500 Series EN179 - DOP
Thumbnail of document
Abloy EL560, EL561 & EL520 UKCA DOP
