The Ultimate Solution for Pivoting Doors
The Royde & Tucker H131-402 double action pivot set offers a robust, maintenance-free solution for internal doors. Designed for double action pivot doors, this HI-LOAD set delivers smooth and reliable performance, making it ideal for doors in commercial and public buildings. Crafted from Grade 304 stainless steel, it provides durability and corrosion resistance, ensuring long-term functionality.
Key Product Features:
- Grade 304 stainless steel
- Suitable for FD30/E30 fire rated doors
- Tested to EN 1634-1 for single and double doors
- Suitable for 44mm-54mm thick doors
- Maintenance free for 25 years
- Suitable for internal doors
- R12.5 radiused corners
- Suitable for single and double doors
- Maximum door weight: 80kg load
- Maximum door width: 1100mm

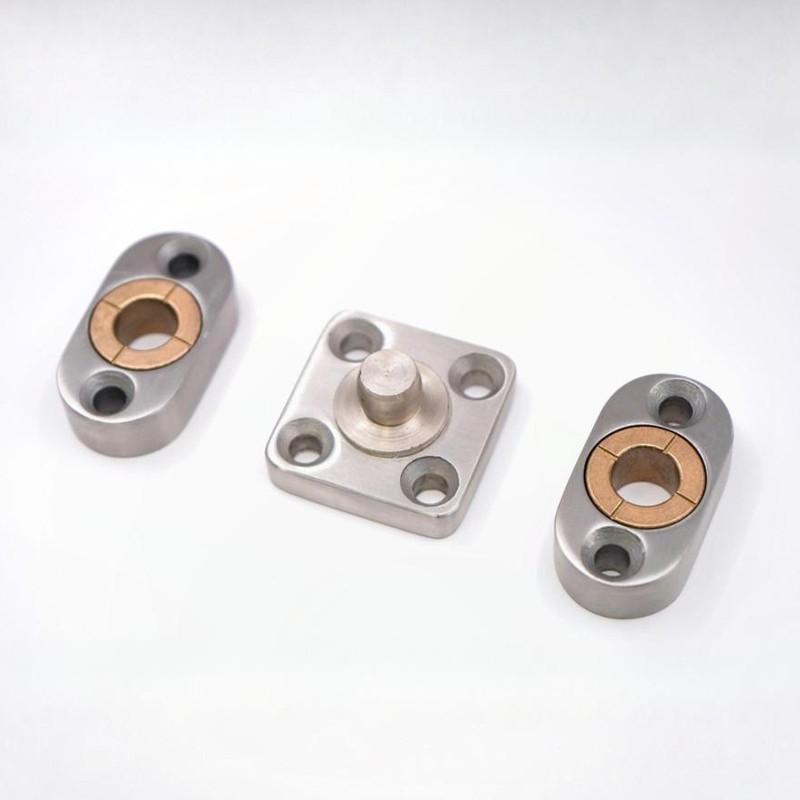

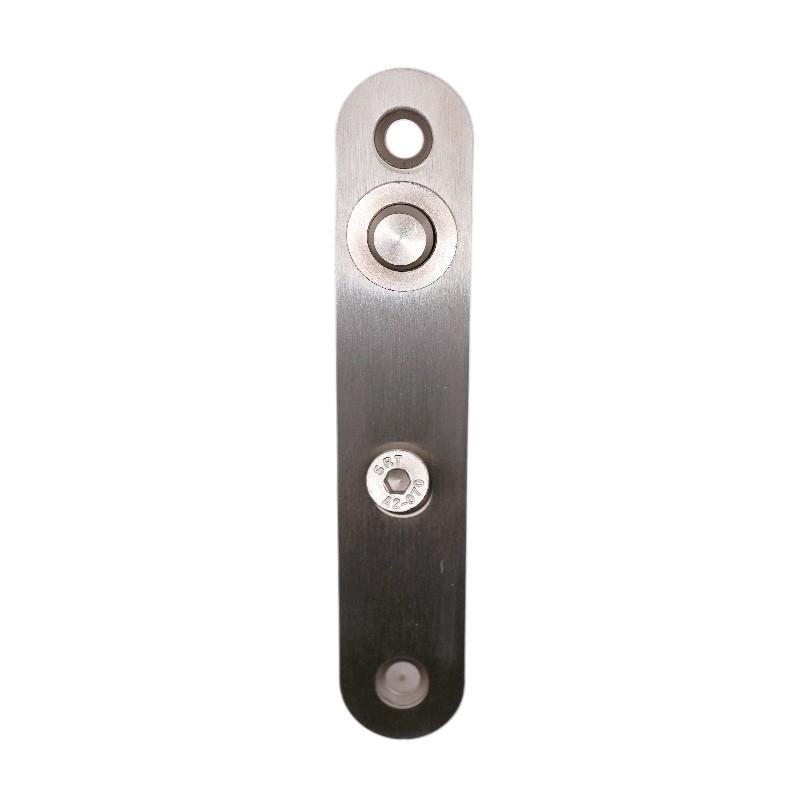

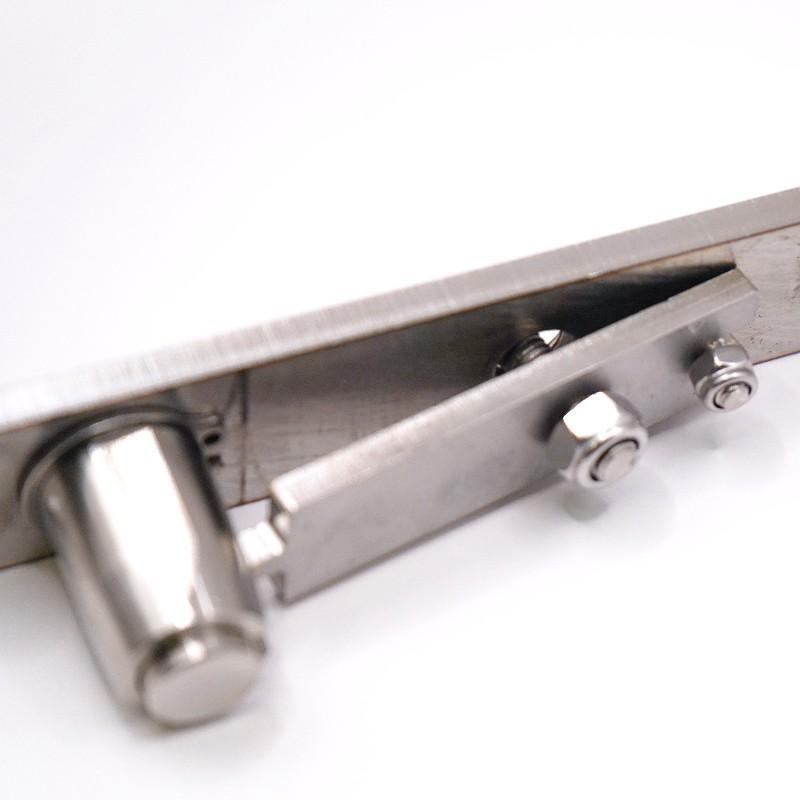

This HI-LOAD door pivot set includes:
- Bottom pivot
- Top centre
- Door brackets
- M5x30mm screws
An adjustable version is available as a special order so contact us today to find out more.
Radiused Pivot Doors: On the pivot edge of the door, an R9 radius is required for 44mm doors and an R15 radius for 54mm doors. A square corner version is available in the H131-100 pivot set.
HI-LOAD Pivot Set: Designed to support heavy internal doors, ensuring consistent and reliable operation in medium duty environments.
Double Action Design: Enables doors to swing smoothly in both directions. Fit a double action pivot set and emergency release to accessible bathroom doors for the ultimate door safety solution.
Grade 304 Stainless Steel: Offers excellent corrosion resistance and ensures long-lasting performance.
Maintenance-Free: The top and bottom plates feature oil-impregnated bronze bearings for effortless operation, and are maintenance free.
Fire Door Compatibility: Certified for use on E30 fire doors, enhancing safety and meeting stringent regulatory requirements.
Versatile Application: Suitable for a range of pivot door setups, including double action pivot sets and heavy doors up to 80kg.
Discreet Design: With a floor mounted bottom bracket, the mechanism remains concealed as it does not protrude beyond the face of the door.
Reliable and Maintenance-Free Performance
One of the standout features of this double action pivot hinge set is its maintenance-free design. The self-lubricating mechanism eliminates the need for regular adjustments or servicing, saving time and reducing costs over the product’s lifetime. This makes it a practical and economical choice for facilities management teams and contractors aiming to minimise maintenance schedules.
Enhance Your Doors with the H131-402
The Royde & Tucker H131-402 pivot set is a go-to solution for facilities and site managers who value quality, reliability, and performance. Its high load capacity, fire door compatibility, and sleek design make it the perfect choice for modern pivot door systems.
With its ability to support a 54mm maximum door thickness and provide maintenance-free operation, this hinge set is a smart investment for any commercial or public building project.
Upgrade your door hardware today with the H131-402 and experience industry-leading durability and functionality. This pivot set is more than just a hinge; it’s a commitment to superior design and performance for every installation.
