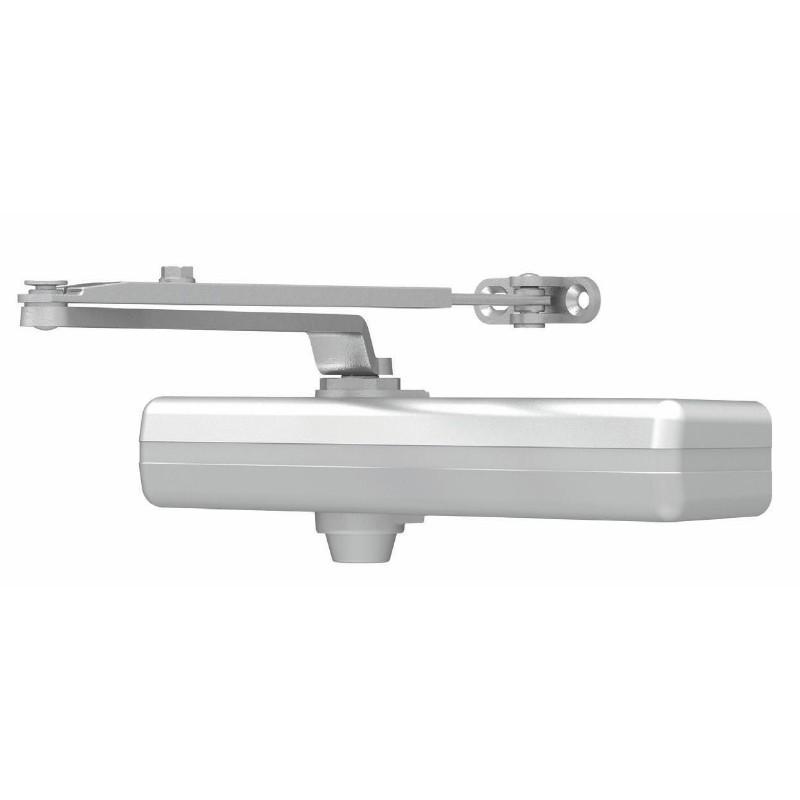

LCN 1461 Overhead Door Closer | EN 2-5

Medium Duty LCN Door Closer for Commercial Doors

The LCN 1461 closer is a medium duty, commercial grade solution designed to support building compliance and provide consistent door control in demanding environments. With a spring adjustable power size range of EN 2–5 and a universal, non-handed design, it suits a wide range of internal and perimeter doors, including fire rated timber doors up to 120 minutes.

Built around a cast iron body with precise hydraulic regulation and all-weather fluid, this closer is engineered for long term performance, reducing maintenance needs over time. Independently tested to BS EN 1154 and BS EN 1634-1:2014, and both UKCA and CE marked, the LCN 1461 helps support fire door compliance.

Key Product Features:

• LCN 1461.US28 door closer
• Medium duty
• Spring adjustable power size EN 2-5 (ANSI 1-6)
• Suitable for internal and perimeter doors
• Universal unit installation:

          Fig. 1/61 – Pull side mounting/transom mounting
          Fig. 66 – Push side mounting

• Adjustable hydraulic backcheck
• Adjustable closing and latching speed
• Non-handed
• Cast iron body
• Slimline plastic cover
• Scissor arm
• Tested to BS EN 1154
• Tested to BS EN 1634-1:2014 for timber fire doors up to 120 minutes
• UKCA marked
• CE marked
• Adapts to uneven trim
• All weather fluid
• Peel and stick installation template
• Suits doors under 102kg
• Common footprint
• Silver finish

If you require delayed action, the LCN 1461 door closer is available with this function as a special order. Contact us to enquire about lead times and availability.

Designed for Versatility

The 1461 LCN closer is well suited to doors subject to frequent use, such as in schools, offices, healthcare, and public buildings. With adjustable EN 2–5 power, it covers a wide door size and weight range, helping you meet the varied requirements of multiple door types across a building.

The universal mounting design supports pull side, transom and push side installations, giving you flexibility during retrofit or new fit-out projects. The non-handed construction also helps reduce stockholding and simplifies site specification.

Reliable Door Control with Adjustable Speed

The LCN closer 1461 allows separate adjustment of closing and latch speeds, so you can set closing behaviour that meets your door’s needs.

The hydraulic backcheck slows the door before it reaches full open, reducing wear on hinges and protecting surrounding walls and fixings, ideal in high traffic areas and schools. A door stop should be installed alongside the backcheck feature to provide additional protection and prevent damage to the door and surrounding surfaces.

The closer’s all-weather hydraulic fluid maintains reliable performance across temperature fluctuations, making it suitable for both internal doors and external exit points.

LCN 1461 Fire Door Closer

Tested to BS EN 1634-1:2014, the LCN 1461 closer is suitable for timber fire doors rated up to 120 minutes of protection. It also meets BS EN 1154 for controlled door closing devices and carries both CE and UKCA markings, providing compliance with UK fire safety standards.

It’s important to adjust the door closer to the EN power sizes in line with BS EN 1154, the relevant British Standard, as ANSI power sizes do not apply for UK installations. Always check the fire test evidence for your door, as using non-compatible ironmongery can invalidate certification and result in non-compliance.

Quality Construction from the LCN 1460 Series

Part of the trusted LCN 1460 door closer series, the LCN 1461 combines robust internal components with a cast iron body and precision adjustment valves. The scissor arm incorporates joints to adapt to irregular trim and frame surfaces, giving a smooth closing action on a range of door types.

The silver finish provides a clean, professional look that complements other door hardware for a consistent and coordinated appearance.

Alternative Options for Other Applications

If you need a lighter duty closer for internal doors, the LCN 1261 offers EN 1–4 power size range. For heavy duty projects requiring maximum durability and resistance, the LCN 4040XP delivers performance with strength and longevity for both timber and metal doors.

Discover our full range of door closers today or contact our team for expert guidance on selecting the right solution.
