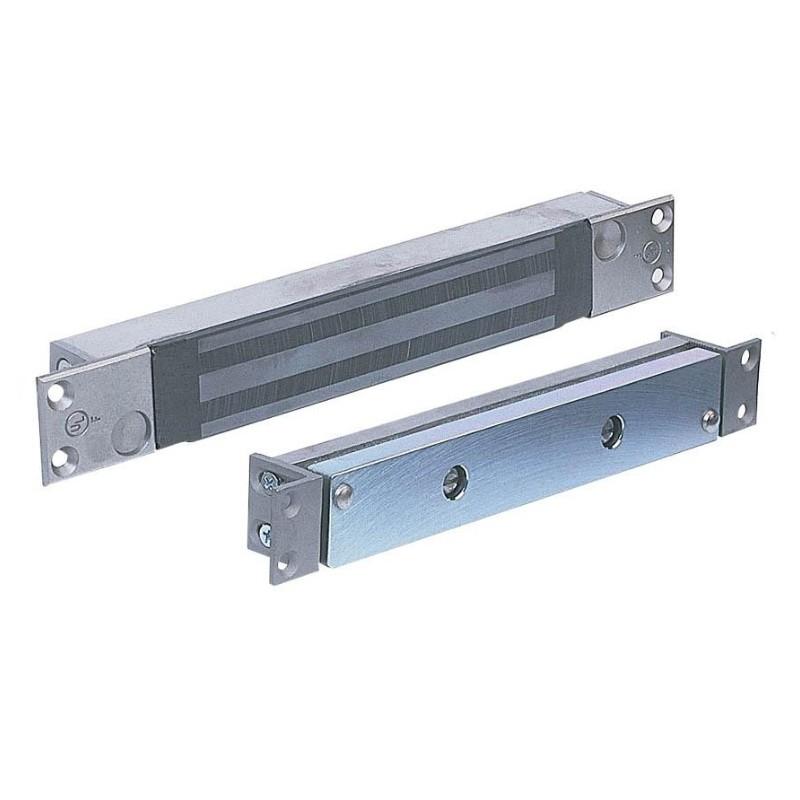

Securitron SAMB Shear Aligning Magnalock with BondSTAT Sensor

The Securitron SAM maglock provides high strength, concealed electric locking for doors where security cannot compromise aesthetics. Designed for flush mounting within the door or frame, it delivers 544kg of holding force while remaining completely hidden from view when the door is closed. The BondSTAT monitoring allows real time lock status reporting to your system.

This electromagnetic lock is suitable for sliding or swinging doors made from wood, aluminium, or steel, and can be mounted in the header, door edge, jamb, or threshold.

Key Product Features:

• Auto-detect dual voltage: 12V/24V DC
• Low power usage
• Current consumption: 300 mA at 12V DC and 150 mA at 24V DC
• Monitored: Patented BondSTAT magnetic bond sensor
• Holding force: 544kg (1200lbs)
• Medium security
• Fail safe
• Internal use
• Operating temperature: -40 to +60 °C
• Weather resistant
• Rust resistant: ferrous surfaces are coated for durability
• Concealed mount in head, door edge or threshold
• Suitable for sliding or swing doors
• For metal, wood or aluminium doors
• No residual magnetism for instant unlocking
• Lock dimensions: 275mm x 38mm x 30mm
• Strike plate dimensions: 275mm x 37mm x 36mm
• Shipping weight: 2.72kg

Please note: The Securitron SAM is not suitable for use in open channel doors.

Fully Concealed SAM Maglock for Design Led Spaces

Unlike traditional surface mounted maglocks, the Securitron SAMB installs entirely within the door and frame. With no exposed housings or hardware, it’s the ideal choice for projects where visual impact needs to be minimised. Its concealed fitting helps maintain a clean aesthetic, particularly important in healthcare, education, or premium spaces.

Securitron SAM Mortice Maglock for Flexible Mounting Across Multiple Door Types

This shear aligning magnalock can be fitted in several positions depending on door and frame construction, including in the head, door edge, or threshold. This flexibility allows it to integrate with other concealed door components, such as concealed door closers and acoustic drop seals.

Suitable for use on sliding or swing doors made from wood, steel, or aluminium, the SAMB offers versatile locking across a wide range of door types.

Where a concealed mortice maglock cannot be installed due to door limitations, consider alternative options within the Securitron range:

• M62 maglock: Surface mounted with the same 544kg holding force
• M32 maglock: 272kg holding force for lighter duty doors
• GL1 gate lock: For external gates, available in fail safe or fail secure variants

These models offer the same trusted performance across a range of access control projects. Discover our complete electric locking range or contact our technical team for advice.

Integrated Bond Monitoring For Maglock Status Feedback

The built in BondSTAT sensor continuously monitors the strength of the magnetic connection between the lock and armature plate. It provides real time feedback to the security system, confirming whether the door is fully secured or not. This improves system visibility and supports building security.

Support your installation with our full range of access control components, including power supply units, relays, and exit devices. Browse online or contact our technical team for expert guidance on the best solution for your project.
