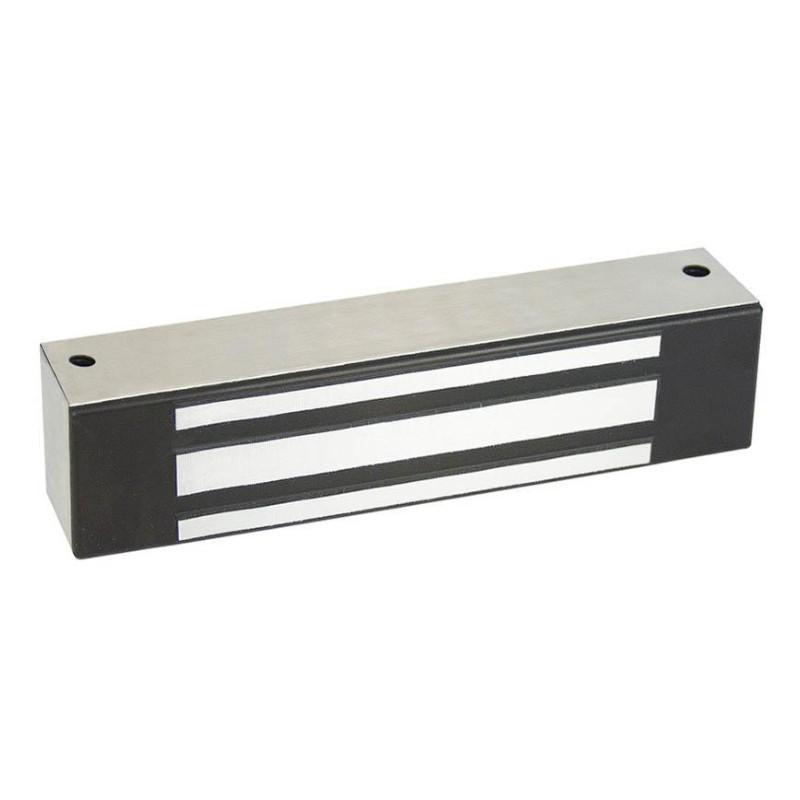

Securitron M32 Magnalock Maglock | Monitored

The Securitron M32 Maglock

The Securitron M32 Magnalock provides 272kg of holding force and is suitable for internal doors and sheltered external installations. The ferrous surfaces are treated with a rust resistant coating for durability.

This Securitron M32 maglock combines reliable electromagnetic locking with low power consumption and status monitoring. Choose between standard fix (M32BM) or face fix (M32FBM) mounting options using the drop down menu.

Key Product Features:

• Mounting options: M32B standard fix or M32FB face fix
• Auto-detect dual voltage: 12V/24V DC
• Low power usage
• Current consumption: 300 mA at 12V DC and 150 mA at 24V DC
• Monitored: Patented BondSTAT magnetic bond sensor
• Holding force: 272kg (600lbs)
• Fail safe
• Internal and sheltered external use
• Operating temperature: -40 to +60 °C
• Weather resistant
• Rust resistant: ferrous surfaces are coated for durability
• No residual magnetism for instant unlocking
• Noise suppression
• Size optimised for use with door closers
• Satin stainless steel finish
• Body dimensions: 203mm x 47mm x 41mm
• Strike plate dimensions: 153mm x 41mm x 12mm
• Shipping weight: 2.72kg

Securitron Maglock M32 For Access Control Doors

This maglock has 272kg holding force and is designed to secure doors in medium security settings. If you need a stronger option, the Securitron M62 offers 544kg holding force and is also available in both standard fix and face fix models.

This Securitron M32 maglock includes the patented BondSTAT monitor, which checks that the lock is fully engaged and reports the status for real time feedback.

Maglocks are fail safe so the M32 unlocks immediately if power is lost without any residual magnetism to cause sticking. If the door must stay locked during a power cut, consider adding a battery backup to keep the system powered.

The Securitron magnalock M32 fits alongside common overhead door closers. Door closers are important in any access controlled setup as they make sure the door shuts after someone goes through allowing the maglock to re-engage and keep the door secure.

We also supply a wide range of solutions for a complete access control setup, including:

• Keypads, like the Securitron DK-26
• Power supply units and back up batteries
• Exit buttons for safe and easy door release
• Emergency release units
• Relays

Explore our full access control range or contact our team for guidance.

Choose a Standard Or Face Fix Mounting M32 Maglock

The Securitron M32 is stocked in two models:

• M32BM: Standard fix
• M32FBM: face fix

Both versions are surface mounted and each unit includes an installation template to help with positioning. You can download a copy from the product documents section for reference. Please note that there are two different templates depending on the method of mounting for your model.

If you need a concealed electromagnetic lock, the Securitron SAM shear lock is a great alternative. It offers a 544kg holding force with the same BondSTAT monitoring.

Other versions of the M32 Securitron are available as special order, including models with different monitoring options and strike plate configurations. Contact our technical team to discuss the options.
