Simonswerk TECTUS TE 540 3D FR Fire Rated Concealed Hinges

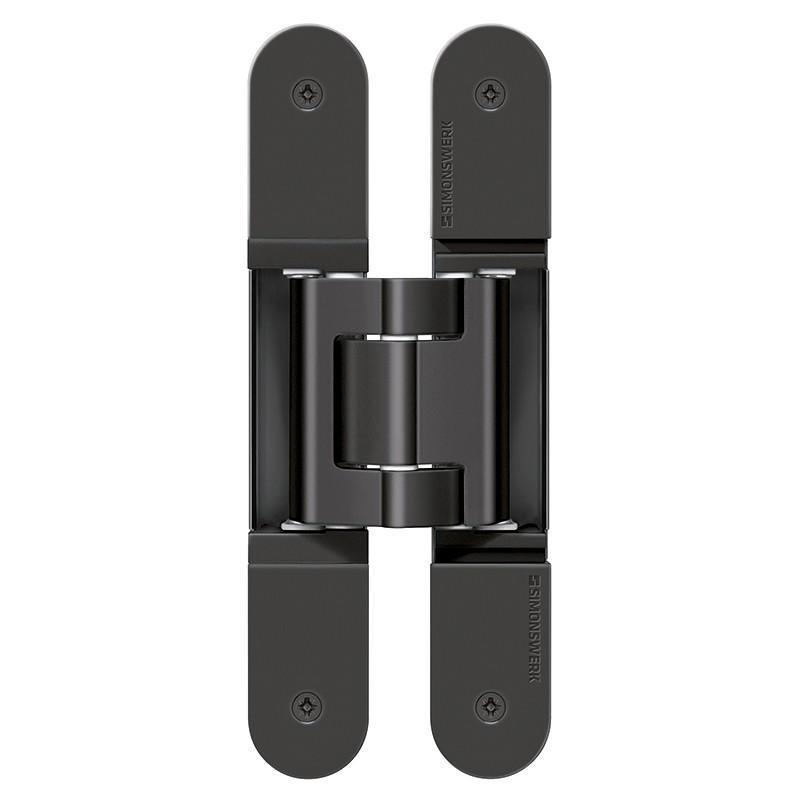

The Simonswerk TECTUS TE 540 3D FR hinge is a concealed hinge system designed for use on fire rated timber doors. Engineered for clean aesthetics and lasting performance, this heavy-duty hinge delivers reliable operation in demanding commercial settings where certified fire protection is essential.

With 3D adjustability and integrated intumescent technology, this hinge ensures precise door alignment and compliance without compromising on the visual integrity of your door.

Key Product Features:

• Choice of 6 finishes
• 3D adjustment
• Integral intumescent kit
• Maximum load capacity: 120kg
• Concealed hinge
• Fire tested for 30 minute doors
• Suitable for timber and metal doors
• Compatible with timber, steel, and aluminium frames
• Non-handed
• Maintenance-free slide bearings
• Suitable for unrebated doors
• Burglar resistant
• Soundproof
• Maximum opening angle: 180°
• Zinc body with aluminium arm
• Certified to CE, UKCA, and IFT standards
• Warrington Fire certification
• Certifire Approved
• Overall dimensions: 200mm x 80.5mm

Simonswerk Fire Rated TECTUS Hinges

The TE 540 3D FR is specifically tested and certified for 30 minute timber fire doors fitted with timber frames. This Simonswerk TECTUS hinge comes complete with an integrated intumescent kit, designed to activate when exposed to high heat, expanding to seal the hinge cut-out and slow the spread of fire through the building.

This concealed door hinge and intumescent pack support critical passive fire protection. It’s a dependable choice for projects where certified performance is essential such as in schools, offices, and public buildings.

Pair this hinge with our full range of passive fire solutions to support fire door compliance. We stock certified fire rated ironmongery, intumescent kits, and fire door signage. Always refer to your door’s fire test evidence to confirm compatibility and maintain certification.

The Range of Finishes for Simonswerk TECTUS

When the door is closed, the TECTUS hinge system is fully concealed, maintaining a clean appearance. This makes it the preferred choice for projects where minimalist design and architectural detailing are a priority, without sacrificing performance or fire compliance.

When the door is open the hinge forends are visible so the TE 540 3D FR is available in six high quality finishes including matt black, satin brass, and satin nickel. These options allow you to match or contrast with other door hardware and supports contemporary design.

For an even cleaner finish, consider pairing these hinges with a concealed door closer. By removing the need for surface mounted closers, they help maintain the door’s visual integrity. Fire rated concealed closers are available with compatible intumescent kits. Always refer to your door’s fire test evidence to confirm suitability and maintain compliance.

High Load Capacity and Adjustable Installation

Engineered to support doors up to 120kg, the TECTUS TE 540 3D FR is a robust solution for demanding, high-traffic environments. Its strength and reliability make it well suited to public buildings, healthcare settings, educational facilities, and commercial spaces where long-term durability is essential.

Three-dimensional adjustability on both the door leaf and frame sides allows for accurate alignment during installation. Once fitted, the hinge can be finely adjusted without removing the door.

The TECTUS concealed hinge range offers options to suit a range of door weights. The TE 340 3D FR supports doors up to 80kg, while the TE 640 3D FR can handle heavier doors up to 200kg. For non fire rated doors, the TE 540 3D provides the same concealed design without the intumescent kit. For doors incorporating access control, the TE 540 3D Energy hinge features integrated cable transfer to support powered locking systems.
