Illuminated Emergency Door Release | Triple Pole

EDR-IL-TP Illuminated Emergency Door Release

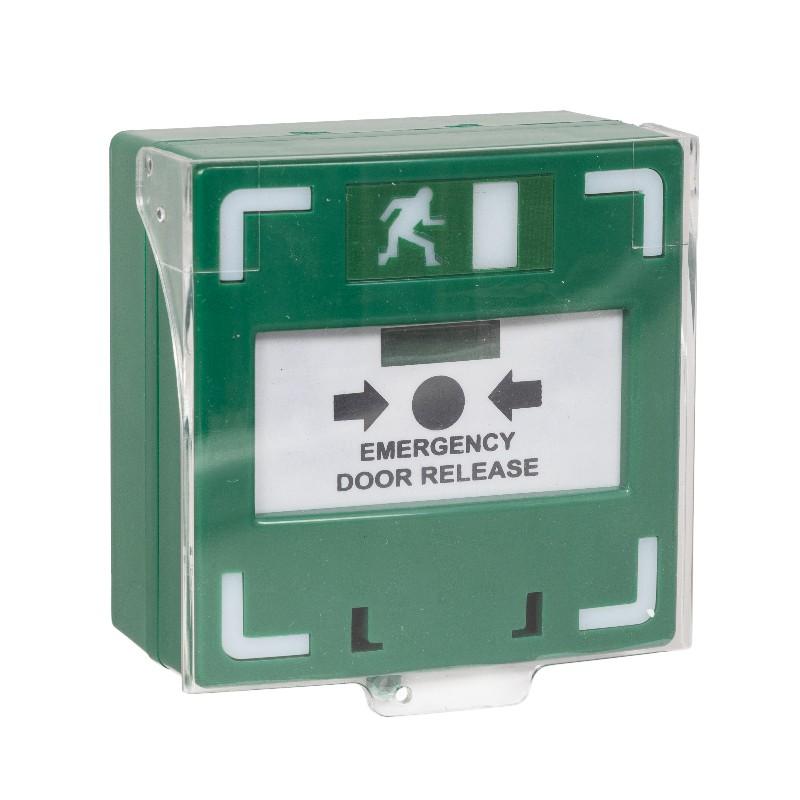

A reliable, resettable triple pole emergency break glass unit designed for access controlled escape routes. The EDR-IL-TP features an always-lit LED for clear visibility in an emergency, changing from green to red on activation for instant status recognition. It includes an integrated sounder for audible alert and a running person symbol to provide clear direction of escape, supporting safe and efficient evacuation.

Key Product Features:

• EDR-IL-TP
• Triple pole
• Includes audible sounder and LED illumination
• Permanently lit
• Green light changes to red on activation/alarm
• Operating voltage: 12/24V DC
• Contact load: 125V/3A
• Active current: 75mA
• Standby current: 41mA
• Operating temperature: -10° to 55°C
• Internal use
• IP24 rated
• Cover and 2 keys included*
• Resettable
• Reset achieved with key, not replacement glass
• Plastic front cover lifts for operation
• Easy clean surface
• Cable entry from rear or sides
• Footprint suits standard back boxes
• Dimensions (excluding cover): 85mm x 85mm x 42mm
• Boxed weight: 200g

*Replacement covers are available separately as special orders, so contact our team to enquire.

Easy To See In An Emergency

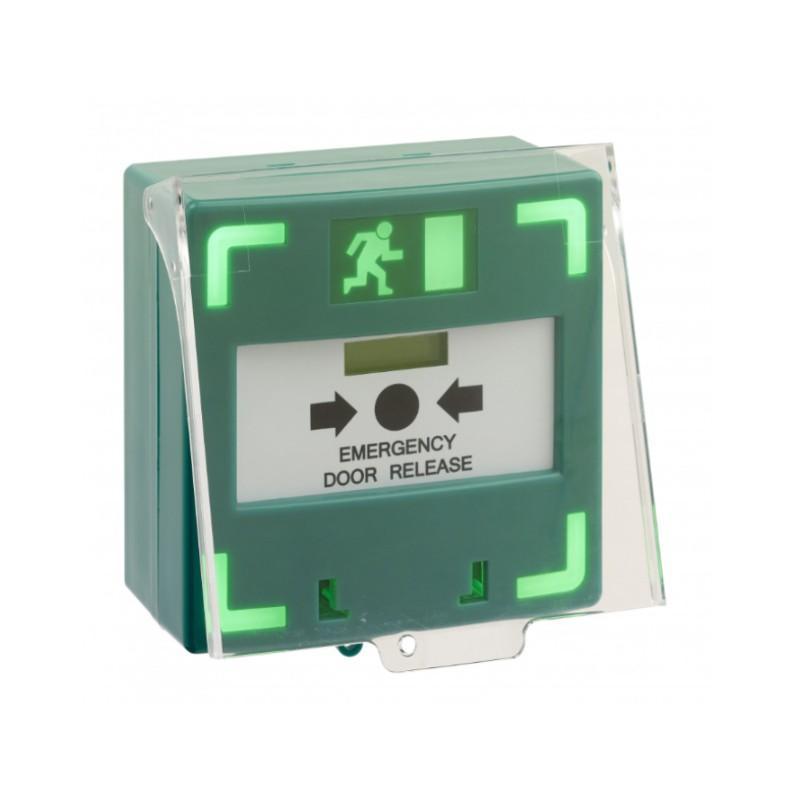

In standby mode the EDR-IL-TP remains illuminated green, making it easy for building occupants to locate during an emergency. When pressed, the LED switches to red and the integrated sounder activates, giving clear confirmation that the door has been released and the direction of the escape route.

For building teams, the change in colour and local sounder also makes the activated point easy to identify. This speeds up investigation after accidental operation and helps reduce unnecessary engineer call-outs and security downtime.

For compliance, the unit should be installed in line with the building’s fire safety strategy. To support safe evacuation, photoluminescent fire exit signs with directional arrows or “push bar to open” signage for final exit doors with panic hardware are also available. Explore our full signage range to clearly label your escape routes.

A red fire document box provides secure storage for logs, maintenance records, and emergency contact details, ideally placed near a fire alarm panel or along the escape route for quick access.

Quick And Simple Reset

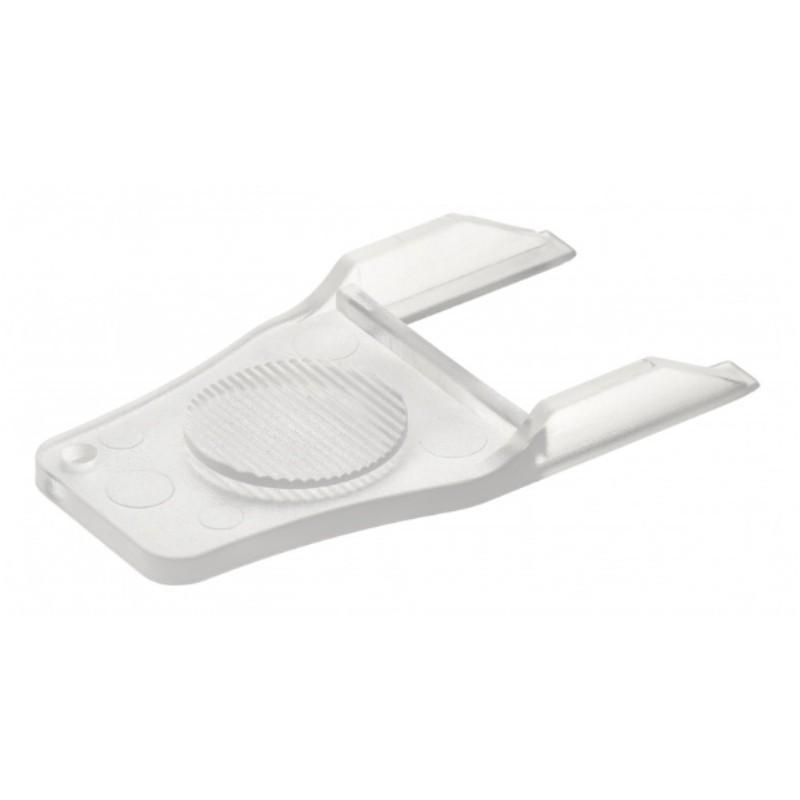

The unit uses the familiar “In Case of Emergency Break Glass” format, but resets with a key rather than replacing glass. After activation, the mechanism is restored by key without the need for consumables.

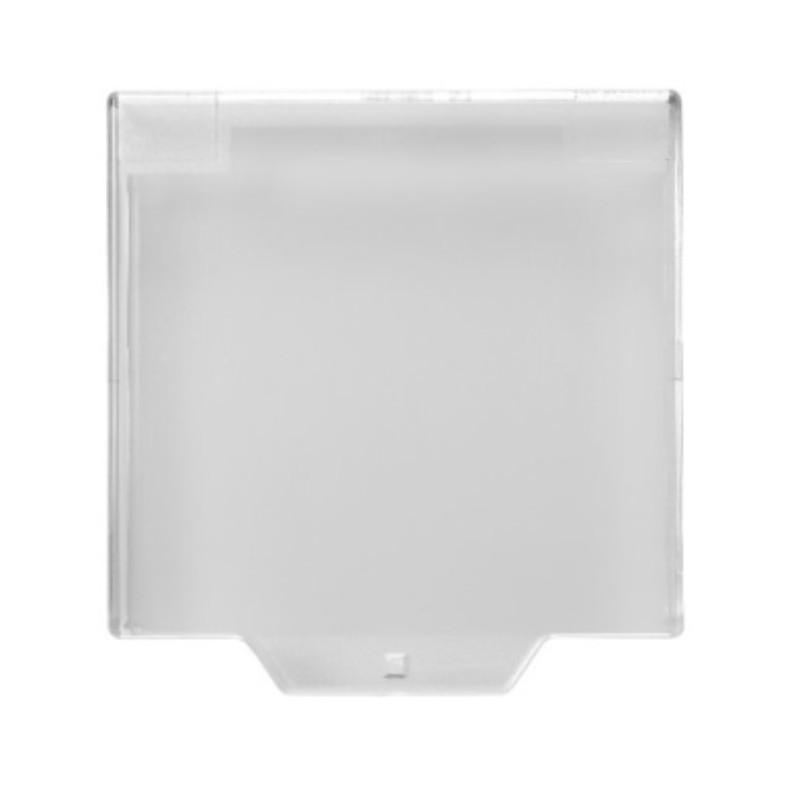

Two keys are supplied as standard, and replacement covers can be ordered if they become worn or damaged. The cover does not need replacing after use.

Triple Pole Illuminated Emergency Break Glass

With three separate relays, the EDR-IL-TP offers greater flexibility than single or double pole units. When pressed, it can simultaneously activate multiple devices such as an electric lock, an alarm, and an automatic door, or any other components required on site. This makes it a versatile emergency door release unit, supporting varied safety solutions.

RGL offer single or double pole units in a different design or dual units that combine release with exit button, touch free sensor, or key switch are also available for sites that want combined control. Explore our complete break glass and exit device ranges.
