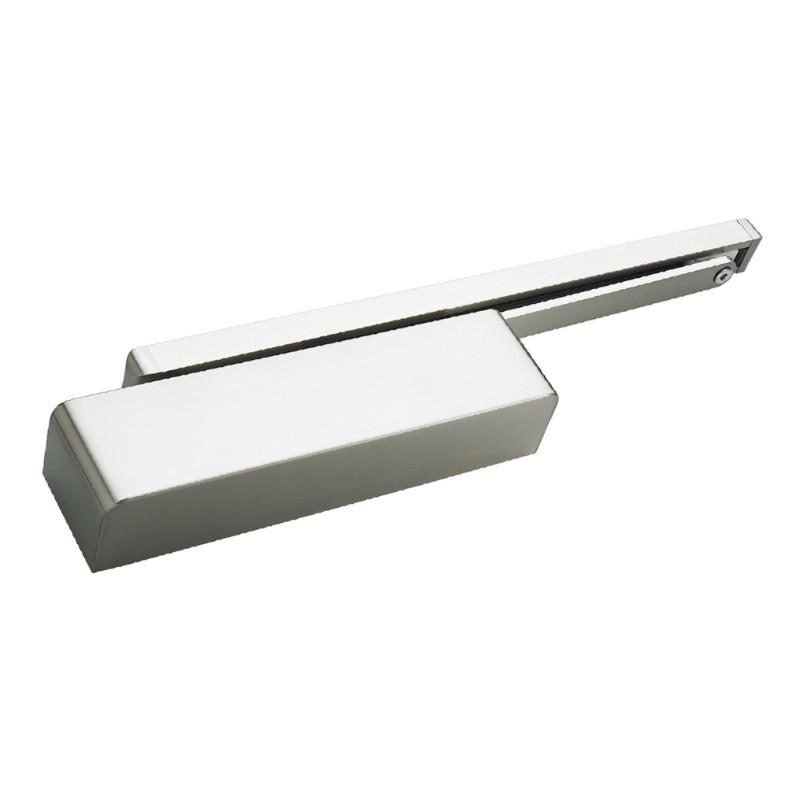

Boss TS6.SA Electromagnetic Fire Door Closer with Hold Open
The Boss TS6.SA-EMF electromagnetic door closer allows fire doors to be held open safely during normal use and ensures controlled closing when the fire alarm activates, or power fails. It uses cam action technology to reduce opening force and meets BS 8300 accessibility requirements, making it suitable for high traffic environments where both access and compliance are critical.
A range of variants are available to suit different door sizes, mounting positions, and installation requirements.
Key Product Features:
- TS6.25BCDA series and TS6.24BC series
- Adjustable closing speed
- Adjustable latching action
- Cam action door closer
- EMF guide rail arm
- Electromagnetic hold open
- 24V DC operating voltage, 1.4W, 58mA
- Tested to EN 1154 and EN 1155
- CE marked
- Certifire Approved
- Timber fire doors rated up to 120 minutes
- Steel fire doors rated up to 60 minutes
- Meets the opening force requirements for BS 8300 for accessibility
- Adjustable manual release force 40Nm - 120Nm
- Non handed
- Semi-radius cover
- Silver or satin stainless finish
Choose The Right TS6.SA-EMF Door Closer for Your Door
There are several options available to ensure you select the correct version and finish for your door.
Mounting Options:
Fig. 1:
- Door mounted on the pull side
- Maximum opening angle of 180°
Fig. 66:
- Door mounted on the push side
- Maximum opening angle of 120°
- Vertical fixings remove the need for an L bracket
Power Size Options:
EN 2-4:
- Suitable for doors up to 1100mm wide and 80kg
- Includes backcheck
EN 2-5:
- Suitable for doors up to 1250mm wide and 100kg
- Includes backcheck and delayed action
Boss Electromagnetic Hold Open Door Closer for Busy Fire Doors
Electromagnetic door closers with hold open are suited to fire doors in high traffic areas such as corridors, hospital wards, and public buildings. The hold open function allows doors to remain open during normal use to support access and movement throughout the building.
This Boss electromagnetic door closer releases automatically on fire alarm activation or power failure, allowing the door to close in a controlled manner. This ensures the door performs its fire safety function when required, helping to protect escape routes and maintain effective compartmentation.
The unit is tested to EN 1154 and EN 1155, CE marked, and Certifire approved. It is suitable for timber fire doors up to 120 minutes and steel fire doors up to 60 minutes. Always check the fire test evidence for your door to confirm fire door hardware compatibility.
For applications that require electromagnetic swing free operation, the Boss TS7.004 emag door closer provides a suitable alternative.
Cam Action Door Closer for Improved Accessibility
The cam action mechanism reduces the force required to open the door, supporting compliance with BS 8300 and improving ease of operation. This is particularly important in environments where doors must remain accessible while still providing controlled closing.
Backcheck is included on all Boss TS6.SA-EMF door closers to help prevent the door from opening too quickly and causing damage. The EN 2-5 models also include delayed action, allowing a short pause before the door begins to close. This provides additional time for users to pass through and supports more accessible use in busy environments.
If hold open functionality is not required, the Boss TS6.224 cam action mechanical door closer offers the same controlled closing performance. For concealed installations, the Boss ITS6.224 cam action concealed door closer provides a more discreet solution.
TS6.SA-EMF Boss Door Closers for Access and Compliance
The Boss TS6.SA-EMF electromagnetic hold open door closer provides a clear solution for projects that require both accessibility and fire door compliance. With certified performance and suitability for a wide range of fire door applications, it is a dependable choice for specification in commercial and public buildings where safety and usability must work together.
