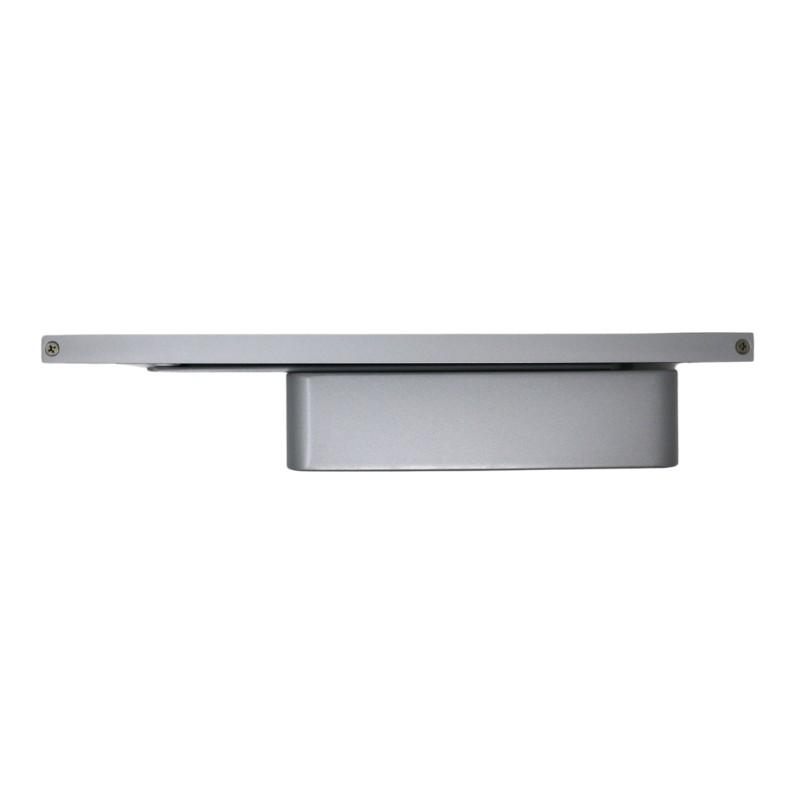

Boss TS6.224 Door Closer | Cam Action | EN2-4

Slimline Cam Action Closer for Easy, Compliant Access

The Boss TS6.224 door closer delivers smooth, controlled door closing in high-traffic environments where safety, accessibility, and visual appeal are critical. This cam action closer provides reliable performance for timber fire doors and meets the requirements of BS8300 and Approved Document M. Designed with precision and efficiency in mind, it’s a dependable choice for projects demanding both compliance and user-friendly operation.

Key Product Features:

• Cam action door closer
• Adjustable power size EN 2-4
• Factory preset to EN 3
• Universal unit installation*

              Fig. 1/61 – Pull side mounting/transom mounting
              Fig. 66 – Push side mounting

• Suitable for single action doors up to 1100mm wide
• Maximum door weight: 80kg
• Opening angle up to 105°
• Tested to BS EN 1154
• Fire tested to BS EN 1634*

              Timber fire doors up to 120 minutes

• CE marked
• UKCA marked
• Certifire approved CF6141
•  Helps meet the requirements of BS8300 and Approved Document M

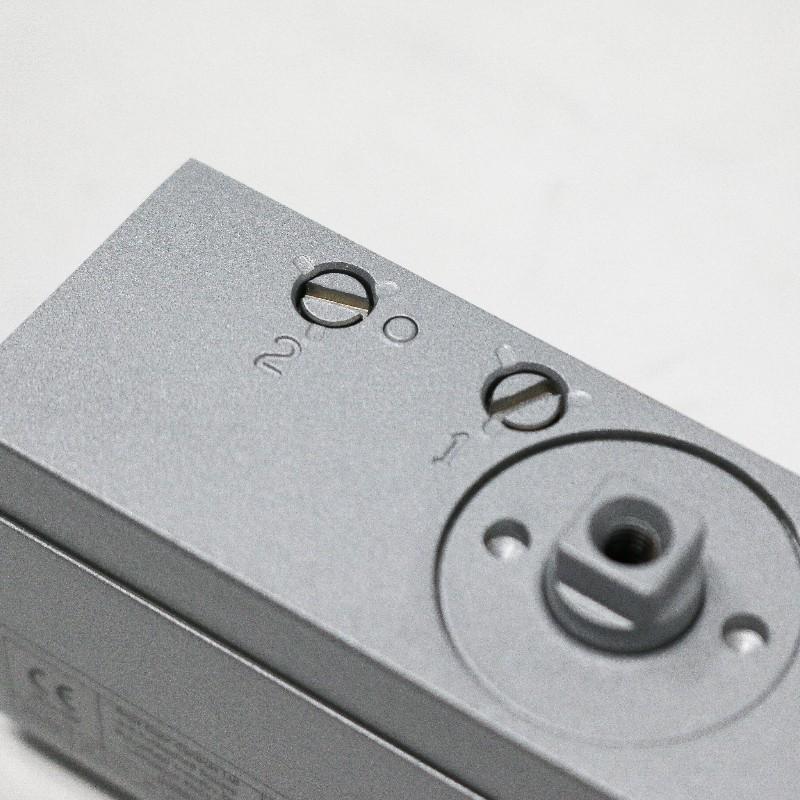

• Adjustable closing speed and latch action
• Corrosion resistance
• Non-handed
• Silver or satin stainless steel finishes

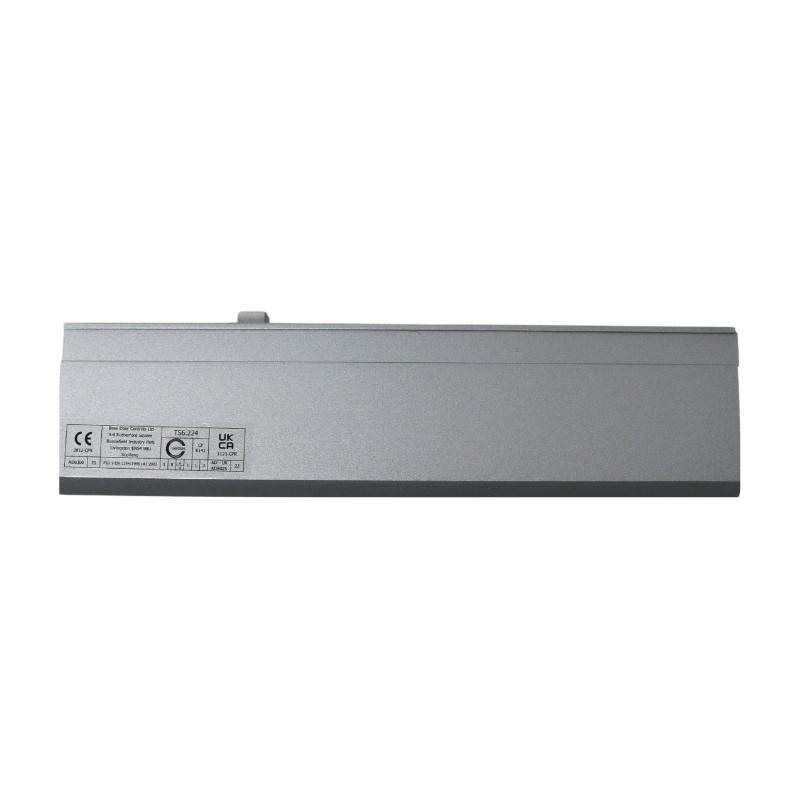

• Mechanism dimensions: 210mm x 53mm x 36mm

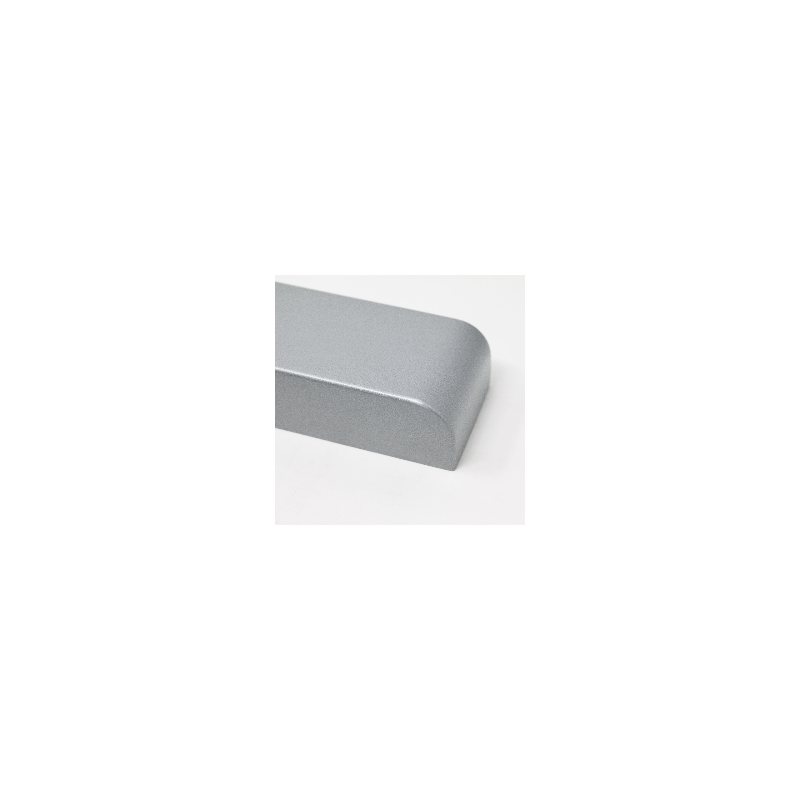

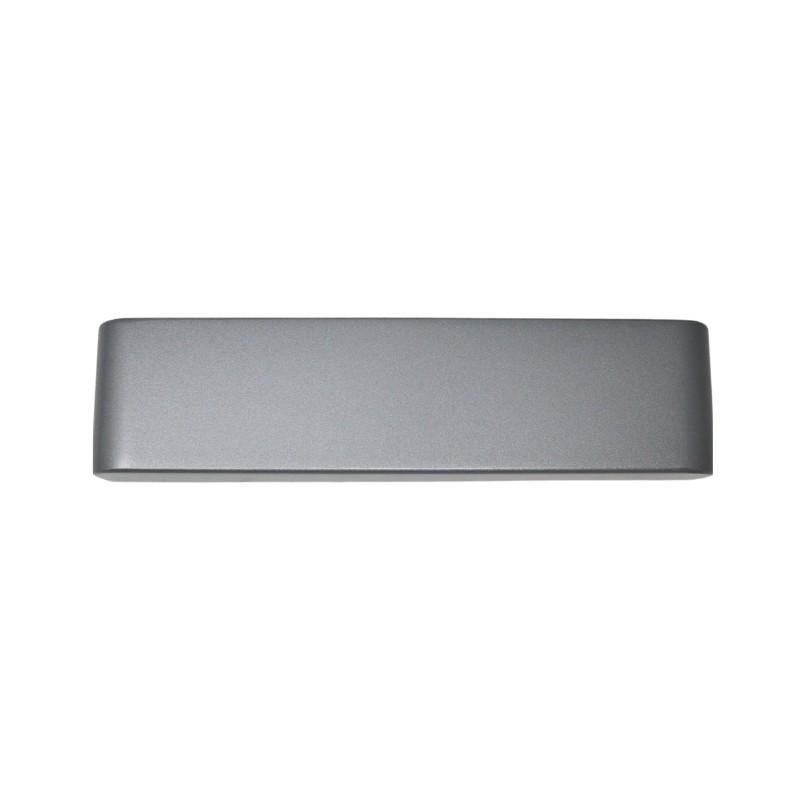

• Semi-radius cover dimensions: 253mm x 60mm x 39mm

*Fig. 61 & Fig. 66 are not Certifire approved or covered by the CE marking.

High Efficiency with Low Opening Force

This Boss cam action door closer delivers high mechanical efficiency and reduced resistance when opening, making it ideal for inclusive access environments. It meets the low opening force requirements of BS8300 and Approved Document M, ensuring ease of use for all building users, including those with reduced mobility. With a force of less than 30N from 0–30° and under 22.5N between 30°–60°, it supports compliance while maintaining reliable closing power.

Boss TS6.224 Fire Door Closer

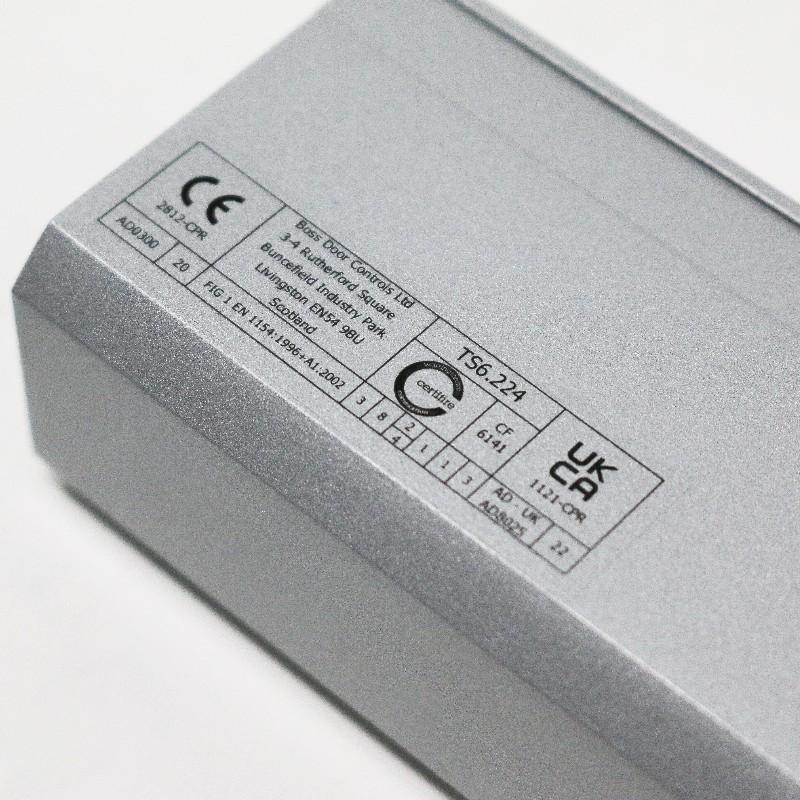

The Boss TS6.224 cam action door closer is independently tested. It is Certifire Approved under certificate CF6141, and is both CE and UKCA marked in accordance with BS EN 1154. This third-party certification confirms its suitability for use in fire safety applications.

Suitable for timber fire doors with up to 120 minutes resistance, the TS6.224 is ideal for use across apartment entrances, corridors, and communal areas in residential, educational, healthcare, and commercial buildings.

Only Fig.1 pull side mounting is covered by the CE and Certifire certifications. For Fig.61 or Fig.66 fire door installations, explore our fire door closer solutions or contact our team for tailored advice.

Coordinated Finish Options for Improved Door Appearance

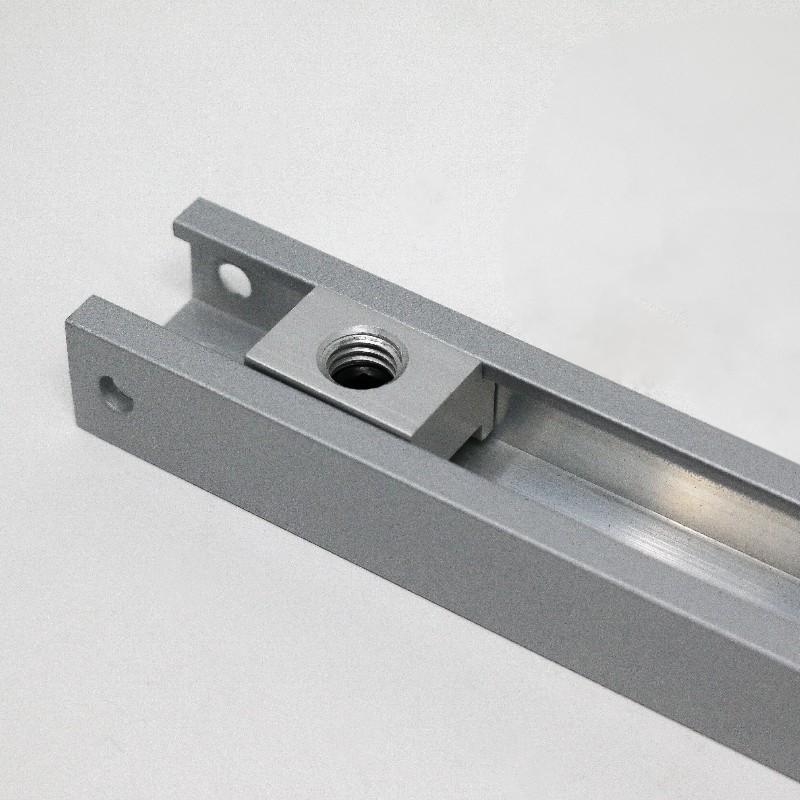

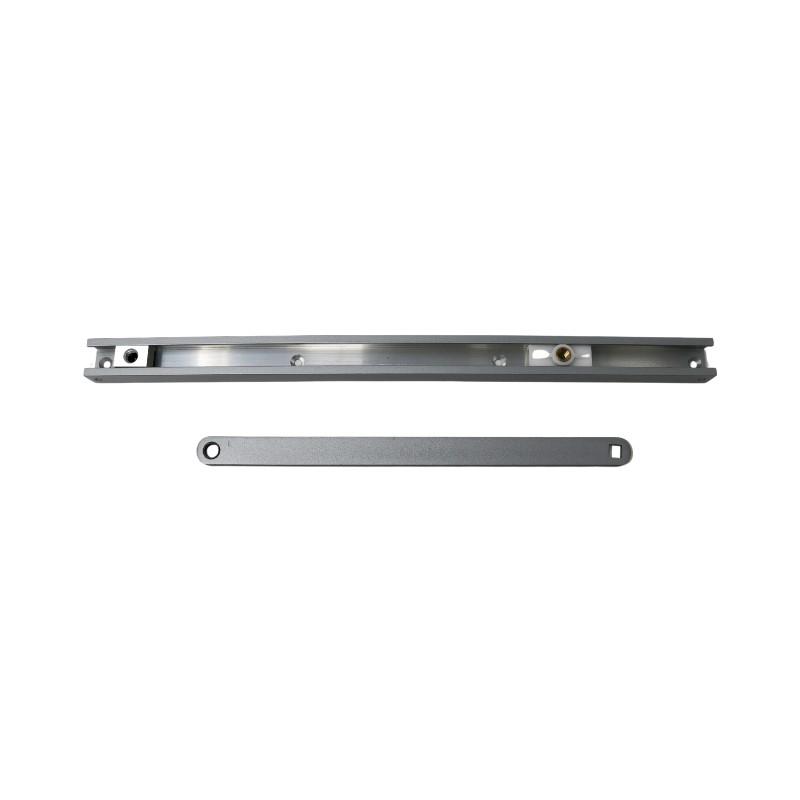

Aesthetics matter when door closers are installed in visible areas. The Boss TS6.224 features a slimline semi-radius cover and guide rail arm for a clean, modern look. Stocked in silver and satin stainless steel, this closer is also available to special order in a wide range of finishes including black, satin brass, and antique brass.

Selecting the right finish helps ensure consistency across your door hardware. Contact us to discuss the available finishes with our team or discover our full collection of door closers to find the perfect match for your project.

A Trusted Choice for Compliance and Control

The Boss TS6.224 cam action door closer offers more than compliance. It delivers consistent performance, low opening forces for inclusive access, and reliable day-to-day operation. Its slimline profile and wide choice of finishes ensure it suits both functional and aesthetic requirements across a range of applications.

For other door types, Boss Door Controls provide a range of options. These include the ITS6.224 concealed cam action closer for minimal visual impact, and the TS7.004 electromagnetic hold open closer. Whatever the door requirement, there's a dependable Boss door closer solution available.
