GEZE Powerchain Chain Drive features 600mm stroke, 600N tensile force, and EN 12101-2 approval for smoke ventilation systems. Ideal for large or heavy windows.
Brackets sold separately.
Read more

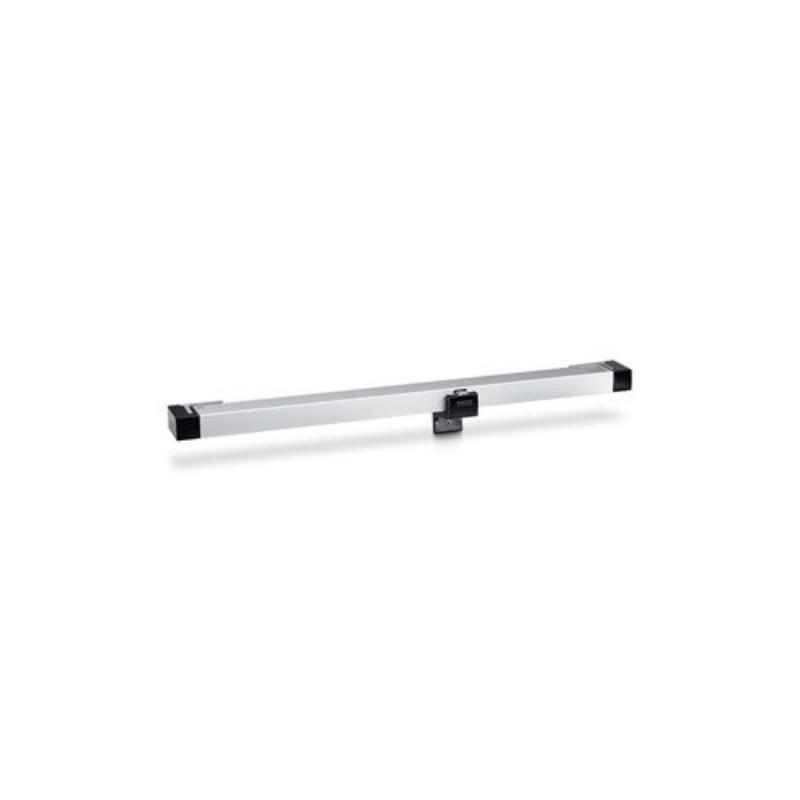

The GEZE Powerchain is a powerful window operator designed for large and heavy façade or roof windows. Engineered for natural ventilation and certified smoke and heat extraction (SHEV) systems, it ensures rapid response and reliable operation in demanding environments. The GEZE Powerchain offers precision control with high tensile force and adjustable stroke.
Bracket sets are available for inward or outward opening windows.
Inward/outward opening
Top hung, side hung, and bottom hung*
Centre and vertically centre pivoted window leafs
Roof windows
*GEZE safety scissors (not included) are required for all bottom hung window installations using GEZE drives. Contact our team to enquire.
The GEZE Powerchain supports window leafs weighing up to 200kg. This makes it an ideal solution for automating large, heavy windows in modern buildings. It delivers a powerful tensile and pressure force of up to 600N, ensuring reliable operation even under demanding environmental conditions.
Certified to EN 12101-2, the GEZE Powerchain provides assured performance in smoke and heat exhaust ventilation systems. In an emergency, the chain drive achieves a rapid RWA opening speed of 15mm per second, delivering the full 600mm stroke within 60 seconds.
The SHEV system is activated externally via a signal from the building’s fire alarm system. Activation is typically achieved using a volt-free normally open/common (NO/C) contact from a dedicated fire alarm interface or the auxiliary output of the fire panel. When the fire alarm is triggered, this contact closes to initiate the SHEV sequence.
Its intelligent IQ windowdrive technology ensures precise control, enabling reliable daily ventilation without compromising emergency readiness. This electric actuator unit is tested and approved as part of a SHEV system, making it suitable for projects where life safety compliance is critical.
The Powerchain window opener supports synchronised operation of up to four units without requiring an external control unit. DIP switches allow for easy configuration of solo, master, and slave modes for grouped openings, ideal for façade systems with multiple window leaves.
Available special versions include custom cable lengths, colour finishes, and stroke lengths, allowing flexibility for use in both refurbishment and new build applications. Contact our team to discuss these options.
The GEZE Powerchain chain drive is built for performance where it matters most. From everyday natural ventilation to emergency smoke extraction, it delivers high speed operation and intelligent control.
With compatibility across a range of window types, construction materials, and building systems, the Powerchain window actuator supports safe, efficient building design across a range of sectors. Whether for compliance, comfort, or convenience, it’s a reliable solution to automate windows with confidence.
Need help specifying the right electric window drive and accessories? Browse our full automatic window opening range or contact us for expert advice.
