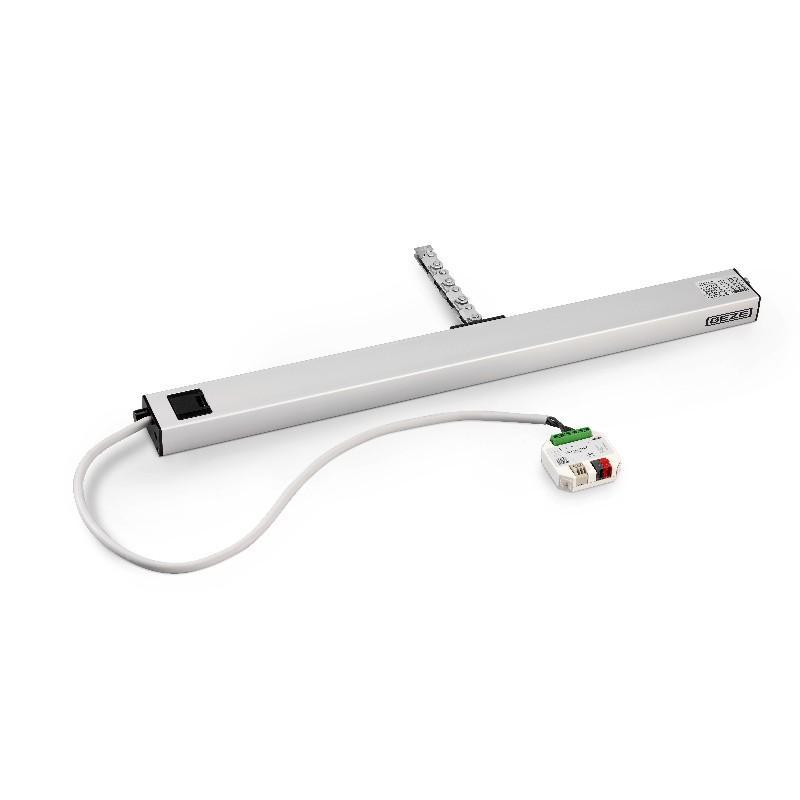

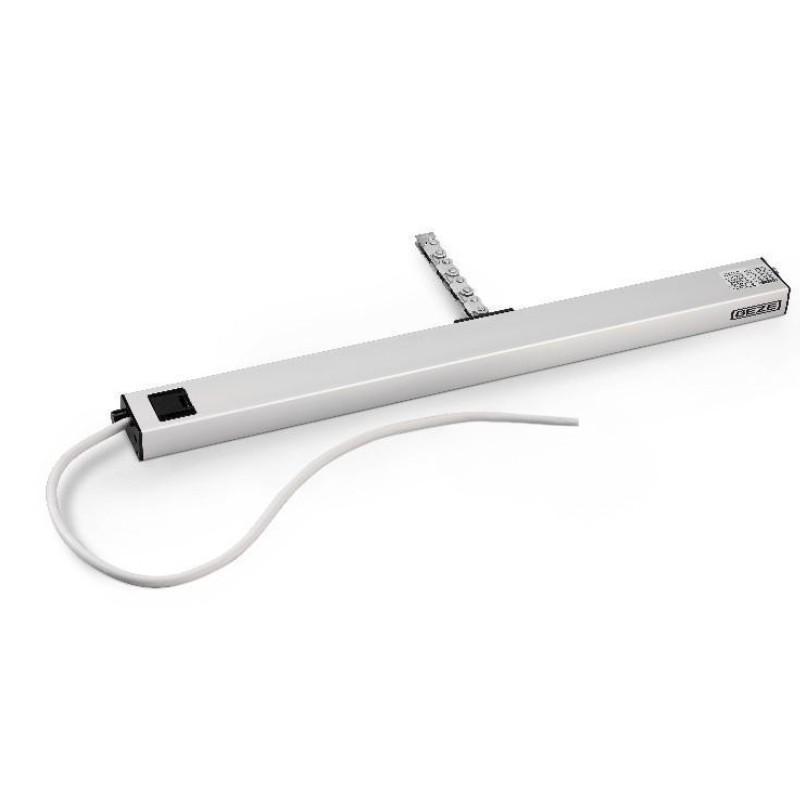

GEZE Slimchain window opener for natural ventilation and smoke extraction systems. It operates on 24V DC and is DIN handed with a choice of 300mm or 500mm stroke length.
Brackets sold separately.
Read more
The GEZE Slimchain chain drive is a compact and adaptable window actuator, designed for natural ventilation and certified smoke and heat extraction (SHEV) systems. The Slimchain delivers reliable operation for both daily ventilation and critical life safety applications.
The GEZE Slimchain 24V is available with a 300mm or 500mm stroke length and is DIN handed as left or right, based on the chain side view.
Brackets are not included and must be ordered separately.
Inward/outward opening
Top hung, side hung, and bottom hung*
Parallel opening and projected top hung designs
300mm stroke: 25mm × 560mm × 44mm
500mm stroke: 25mm × 660mm × 44mm
*In accordance with manufacturer guidelines, the use of GEZE safety scissors (not included) is mandatory on all bottom hung window installations where GEZE drives are fitted.
The GEZE Slimchain is part of the IQ windowdrive range, combining mechanical strength with intelligent electronic control. It supports both ventilation and smoke extraction operations, with individual speed profiles tailored for each function.
The built-in DIP switch system allows installers to easily configure the unit for solo or synchronised operation. This makes it particularly suited for multi-window configurations in schools, offices, residential blocks, and healthcare settings.
For smoke ventilation compliance, the Slimchain window opener is tested to EN 12101-2, ensuring performance in emergency evacuation scenarios. The SHEV system is activated externally via a signal from the building’s fire alarm system. Activation is typically achieved using a volt-free normally open/common (NO/C) contact from a dedicated fire alarm interface or the auxiliary output of the fire panel. When the fire alarm is triggered, this contact closes to initiate the SHEV sequence.
The GEZE Slimchain features a compact, discreet profile making it ideal for applications where minimal visual impact is essential, such as curtain walls, atriums, and public facing façades. Supplied in silver as standard it complements both modern designs.
The GEZE Slimchain can be specially ordered in a RAL colour finish to match your building’s aesthetic. Contact our team to discuss your requirements.
Stroke length refers to how far the chain extends to open the window. The GEZE Slimchain is available in 300mm and 500mm stroke lengths as standard. Stroke length determines the maximum opening angle, which is essential for both natural ventilation performance and compliance with smoke ventilation regulations.
Choosing the correct stroke length depends on the window size, type, and intended use. If you’re unsure which model is right for your application, our team is on hand to help. An 800mm version is also available as a special order. Please contact us to enquire.
Full installation instructions are supplied with the product and can also be downloaded from the Product Documents section on this page.
Check the minimum space clearances for your installation type to ensure there is sufficient room for mounting the unit and for safe, unobstructed chain movement.
The GEZE Slimchain electric window opener is DIN handed, based on the view from the chain side:
Selecting the correct handing is essential for proper alignment and cable routing. Always check the window orientation and installation layout before specifying.
Brackets are not supplied with the Slimchain drive and must be ordered separately.
Discover our complete range of window actuators and accessories, including electric window power supply units, control modules and vent switches. The GEZE Slimchain is also available as part of a window actuator kit for ease. Alternative actuators include the GEZE Powerchain, designed for larger or heavier windows, and the GEZE ECchain, a compact solution ideal for domestic applications.
Our team can help you find the best solution. If you’re looking for something not listed as standard, such as alternative voltages or stroke lengths, get in touch to enquire about the different options.
