GEZE E 250 NT Spindle Drive | 24V DC Window Actuator

GEZE E250 NT Window Linear Actuation for Smoke Control and Ventilation

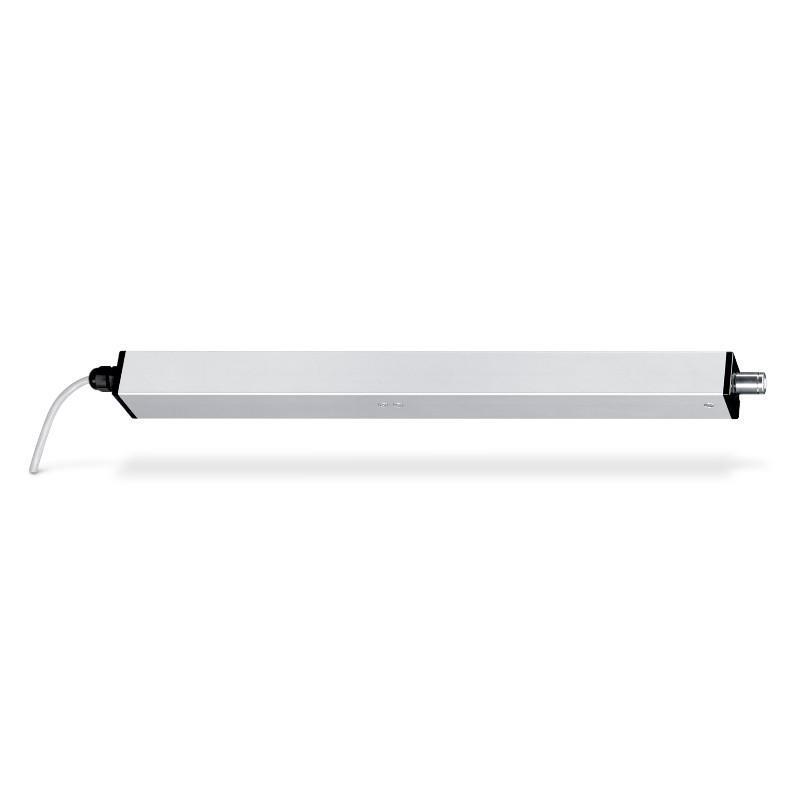

The GEZE E 250 NT is a compact and high performance 24V DC linear actuator window opener with a 300mm stroke length. It is ideal for smoke and heat extraction systems and everyday ventilation and provides dependable, powerful operation in commercial and public buildings.

The standard bracket for roof windows is sold separately.

Key Product Features:

• Stroke length: 300mm
• MPN: 146661
• Suitable for use in smoke and heat extraction systems and natural ventilation
• Continuously adjustable drive strokes
• Individual speeds for ventilation and smoke and heat extraction
• IQ windowdrive
• Opening speed (ventilation): 5mm/s
• Opening speed (RWA): 5.7 mm
• Maximum force of pressure: 750N
• Maximum locking force: 2000N
• Compressive force: 750N
• Tensile force: 750N
• Operating voltage: 24V DC
• Voltage at operation: 24V ±25%
• Ventilation current consumption: 0.9 Amp @ 24V
• RAW current consumption: 1.0 Amp @ 18V
• Maximum power consumption: 20 W
• IP65 rated
• Syncro function (up to four drives)
• Adjustable ventilation opening speed
• Overload cut-off for added protection
• Complete opening in 60 seconds
• NSHEV tested
• Tested to EN 12101-2
• Integrated 2m connector cable
• Window compatibility:

          Inward/outward opening
          Top hung, side hung, and bottom hung*
          Outward opening roof windows

• Installation methods: window or frame
• Suitable for installation on timber, PVC and metal windows
• Compact design
• Dimensions: 47mm x 584mm x 40mm

*GEZE safety scissors (sold separately) are required for all bottom hung window installations using GEZE drives. Please contact our team for further information.

Reliable Operation For Daily And Emergency Use

The GEZE E250 NT functions as a 24V linear actuator for everyday natural ventilation while delivering rapid, controlled opening in an emergency. Its intelligent drive technology and compact design make it ideal for schools, offices, healthcare facilities, and commercial buildings.

This GEZE electric linear actuator includes overload cut-off protection to safeguard both the drive and window components. It also offers a Syncro function, allowing up to four actuators to operate in perfect coordination without an external control unit.

Flexible Installation Across Multiple Window Types

The GEZE E 250 NT suits a wide range of window configurations. It can be fitted to inward or outward opening windows, including bottom hung, side hung, top hung, and outward opening roof windows. Installation is possible on either the window or the frame, depending on available space and the window design.

When using the E250NT in vertical applications, it’s important to carry out a risk assessment of the actuator’s position, as it may pose a hazard to users when projecting from the leaf. This model is recommended for use with high level windows only.

For detailed setup information, refer to the installation documents in the Product Documents section.

Certified For Smoke And Heat Ventilation Systems

Tested and certified to EN 12101-2, the GEZE E250NT operates as a natural smoke and heat exhaust ventilation device (NSHEV). This certification guarantees compliance and safety in critical applications where reliability is essential.

The SHEV system is activated externally via a signal from the building’s fire alarm system. Activation is typically achieved using a volt-free normally open/common (NO/C) contact from a dedicated fire alarm interface or the auxiliary output of the fire panel. When the fire alarm is triggered, this contact closes to initiate the SHEV sequence.

Choosing the Right Electric Window Drives and Controls for Your Project

Whether you're working with smaller windows, larger openings, air inlet doors, or integrating into wider systems, GEZE offers a wide range of compatible solutions to meet your building’s needs.

• GEZE ECchain: cost effective electric window opener designed for natural ventilation in domestic and small commercial settings
• GEZE Powerchain: high performance actuator for large or heavy windows, ideal for façade or roof openings in demanding environments
• Control panels: including options such as the THZ Comfort N4 for reliable RWA and ventilation system management
• Vent switches: including models like the LTA-24-ZA for manual open and close control where local input is needed
• 24V power supply units: available in various capacities to suit single or multiple actuator installations

Need help selecting the right electric window drive or accessories? Browse our full window actuator range or contact us for expert advice tailored to your project.
