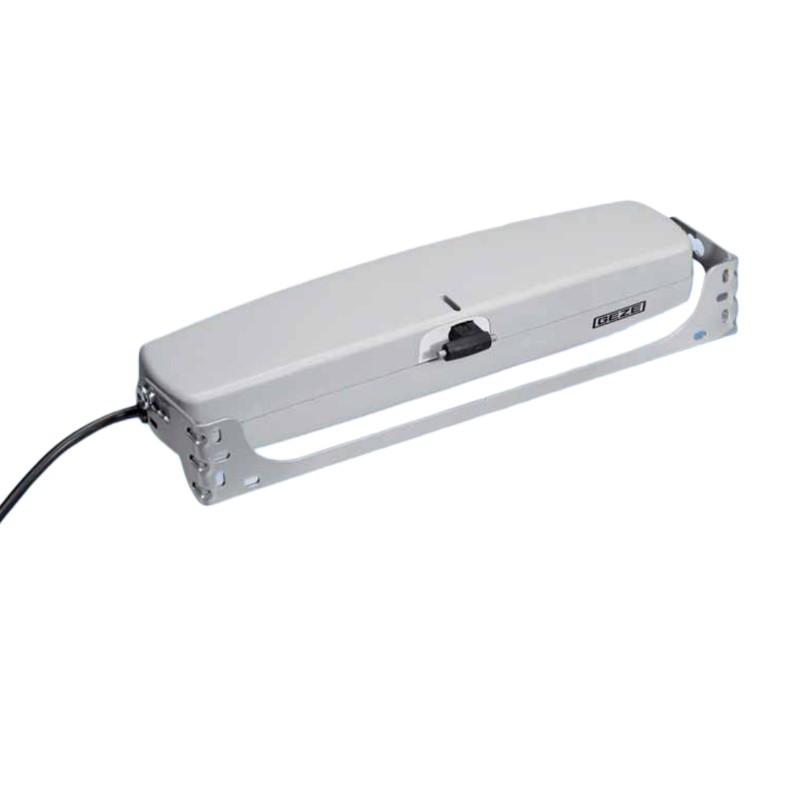

GEZE EOL N Chain Drive | 24V DC Electric Actuator

Low Voltage Window Opener for Natural Ventilation Systems

This 24V window chain drive is designed for opening hard to reach windows in buildings where low voltage protection is preferred, such as schools, healthcare settings, and public buildings. It’s suitable for a wide range of window types and works effectively in natural ventilation systems to support energy efficient temperature control and helping to improve airflow and indoor air quality.

The EOL N actuator features an adjustable stroke length, which can be set during installation to either 200mm or 380mm, depending on your window size and ventilation requirements.

Key Product Features:

• Window chain actuator
• Suitable for natural ventilation systems
• High resistance double link chain ideal for top loads
• Fast hooking and unhooking
• Operating voltage: 24V DC
• Adjustable stroke length: 200mm or 380mm
• Max force (push/pull): 300N
• Stroke speed: 17mm/s
• Idle time: 22 seconds
• Power: 35W
• Current draw: 1.3A
• Rating: IP30
• Unit weight: 1.1kg
• Size: 335mm x 49mm x 80mm
• Colour options: Grey (128031), White (128033), Black (128032)

Versatile Window Actuator to Suit Different Window Types

This electric window actuator is compatible with:

• Top hung outward opening windows
• Bottom hung inward opening windows
• Skylights and light domes

It works with timber, aluminium, and PVC window, making it a flexible solution for a variety of windows. Some installations may require additional brackets that are not included, contact our team to discuss your needs.

Adjustable Stroke Length for Different Window Sizes

Set the stroke length of this window drive to either 200mm or 380mm during installation via an internal switch.

This helps tailor the opening range to your window’s size:

Casement width:

• 350mm – 1200mm

Casement height:

• 250mm min (with 200mm stroke)
• 400mm min (with 380mm stroke)
• 1500mm max

Overlap compensation is also built in:

• 0–22mm for bottom hung
• 0–30mm for top hung

Additional Parts You May Need for This Window Actuator

This electric chain drive requires additional components to complete your window control setup. You may need accessories such as:

• A suitable 24V DC power supply
• Power supply housing (sold separately)
• A manual vent switch like the LTA-24-AZ

Manual vent switches give building users a simple, safe way to open or close difficult to reach windows.

The EOL N is also available in a 230V AC version, making it a practical choice for residential buildings or installations where a separate 24V DC power supply isn’t feasible.

Choosing the Right Actuator for Your Window

The EOL N is designed for natural ventilation systems. It’s ideal for improving air circulation and temperature control, but is not suitable for smoke and heat extraction systems.

If you need a solution for natural ventilation and smoke control, explore our selection of actuators, including the GEZE E 250 NT which is well suited for roof window or the Powerchain ideal for large windows.
