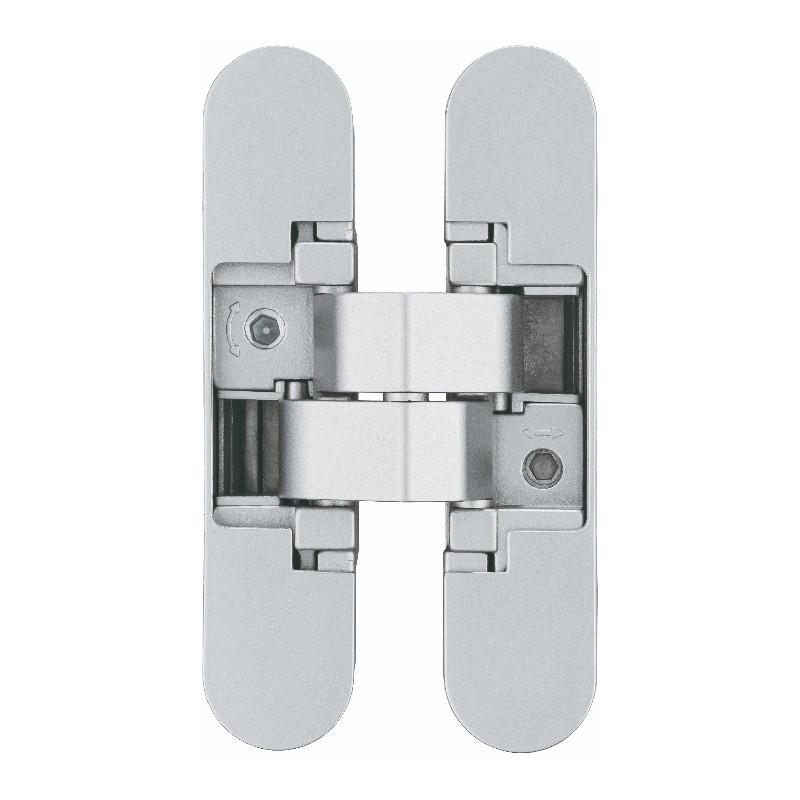

The Simonswerk ANSELMI AN 170 3D hinges are available in a range of finishes. These concealed door hinges have 3D adjustment and suit medium duty doors up to 60kg.
Hinges are sold as single units, complete with fixings.
Read moreSimonswerk AN 170 3D ANSELMI Concealed Hinges
The Simonswerk AN 170 3D ANSELMI concealed hinges provide an innovative, high-performance solution for modern residential doors where clean lines and reliable function are the goal. Crafted with precision, these concealed door hinges offer a sophisticated look and versatility, making them an ideal choice for housing and residential projects.
Key Product Features:
- Matt black or satin chrome finishes
- 3D adjustable concealed hinge
- Maximum door weight: 60 kg (with 2 hinges)
- Medium duty use
- Maximum opening angle: 180°
- Suitable for unrebated timber doors
- Suitable for timber and aluminium frames
- UL certification
- Material: zamak
- 21mm reduced hinge frame part

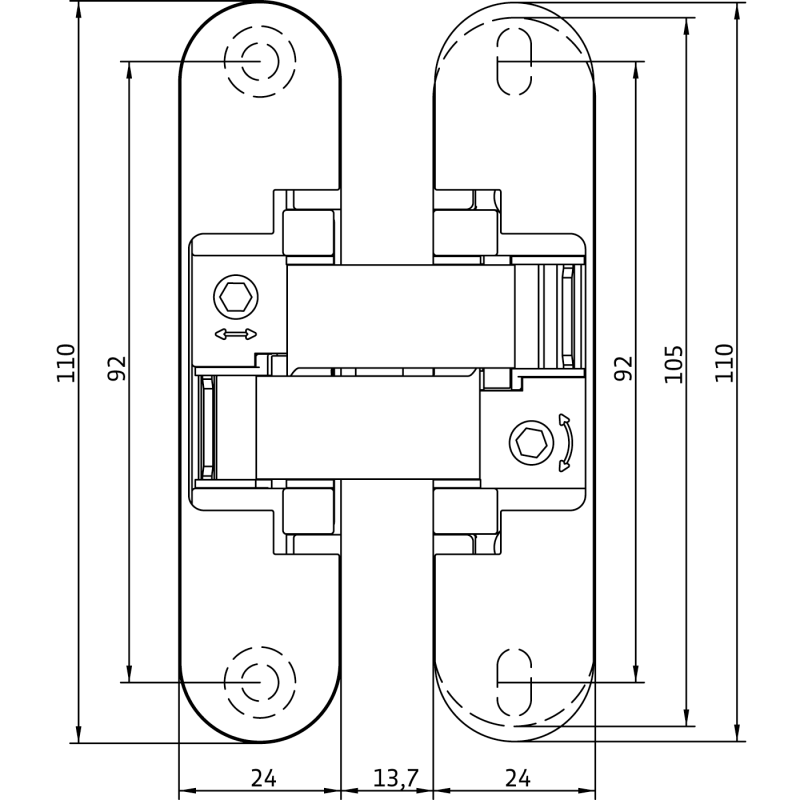

- Overall dimensions: 110mm x 61.7mm
Visual Appeal for Your Project
When installed, the AN 170 3D ANSELMI hinges are invisible when the door is closed. This will allow your doors to achieve a sleek, uninterrupted aesthetic that's highly valued in contemporary spaces. When open, the end plates and hinge mechanism are visible, so these hinges are available in 12+ finishes, including black (AN 018) and satin chrome (AN 014). This allows you to match your hinges to existing items of ironmongery, like door handles and coat hooks.
By removing visible door hinges, these concealed units enable designers and architects to highlight door materials and finishes, creating more visually impactful interiors and exteriors.
Optimal Adjustability and Alignment
The 3D adjustable design ensures precise height, side, and depth alignment, even after the hinges are fitted. This high level of adjustability streamlines installation, reduces the need for future maintenance, and ensures consistently smooth door operation.
The hinges' adaptable design is beneficial for precision fitting, particularly in high-end installations where accuracy is paramount. Three separate adjustment screws allow for +/- 1.0mm compression, +/- 1.5mm side, and +/- 2.5mm height adjustment. The noted collar ring diameter is 27mm, with a required cutter diameter of 16mm.
Durabile and Reliabile Invisible Hinges
Constructed from robust, high-quality materials, Simonswerk AN 170 3D hinges are built for medium-duty usage. Supporting door weights of up to 60kg per pair, these hinges reliably handle side-hung, single-action residential doors.
Make sure to include door hinges as part of your regular door maintenance routine. Clean the surface according to the manufacturer’s instructions and make any necessary adjustments, as doors can shift over time with use and seasonal shifts in environmental conditions.
Versatile Application and Installation
Ideal for use across door frame materials such as timber and aluminium, the ANSELMI hinge system offers on-site versatility. Their straightforward fitting instructions simplify the installation process, making them suitable for various projects, including hotels, flats, and residential developments.
Installers will appreciate the practical design and ease of achieving excellent results quickly and reliably. For standard 2100mm x 900mm doors, it is recommended to install these hinges 1700mm apart. They allow for a maximum adjusted door weight of 60kg. For heavier doors, consider the Tectus range of hinges. The TE 340 3D has a load capacity of 80kg, and models like the TE 640 3D of up to 200kg. For wider doors, install a third hinge 250mm down from the top hinge.
Simonswerk for Quality and Performance
Choose Simonswerk AN 170 3D ANSELMI concealed hinges for residential projects requiring high standards of aesthetics, reliability, and performance. Perfectly suited for both new build and refurbishment work, these hinges offer practical benefits that deliver on door functionality and appearance.
