Simonswerk TECTUS TE 640 3D Concealed Hinges

Simonswerk TECTUS TE 640 3D Hinges

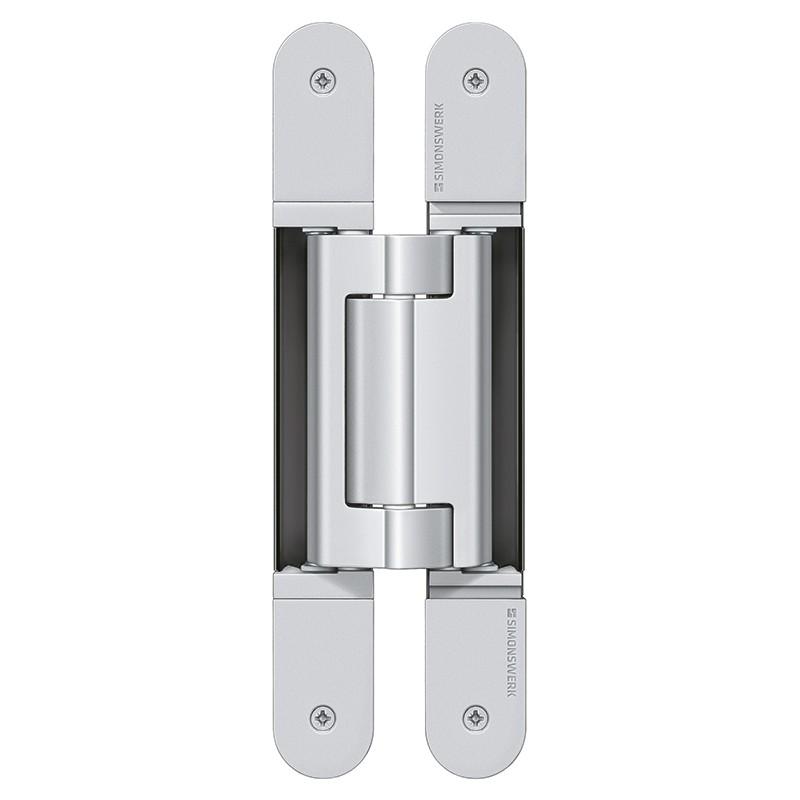

The Simonswerk Tectus TE 640 3D hinge is a heavy-duty solution for unrebated timber and steel doors. Engineered for performance and aesthetics, it combines high load capacity with precision 3D adjustment, making it ideal for commercial, residential, and public building applications.

Key Product Features:

• Choice of 6 finishes
• 3D adjustment
• Maximum load capacity: 200kg
• Fully concealed hinge system
• Smoke and burglar resistance
• Soundproof
• Suitable for timber and steel doors
• Suitable for timber, steel, and aluminium frames
• Non-handed
• Maintenance-free slide bearings
• Suitable for unrebated doors
• Maximum opening angle: 180°
• Heavy-duty use
• CE, UL, IFT,  and UKCA quality marked
• Warrington Fire certification

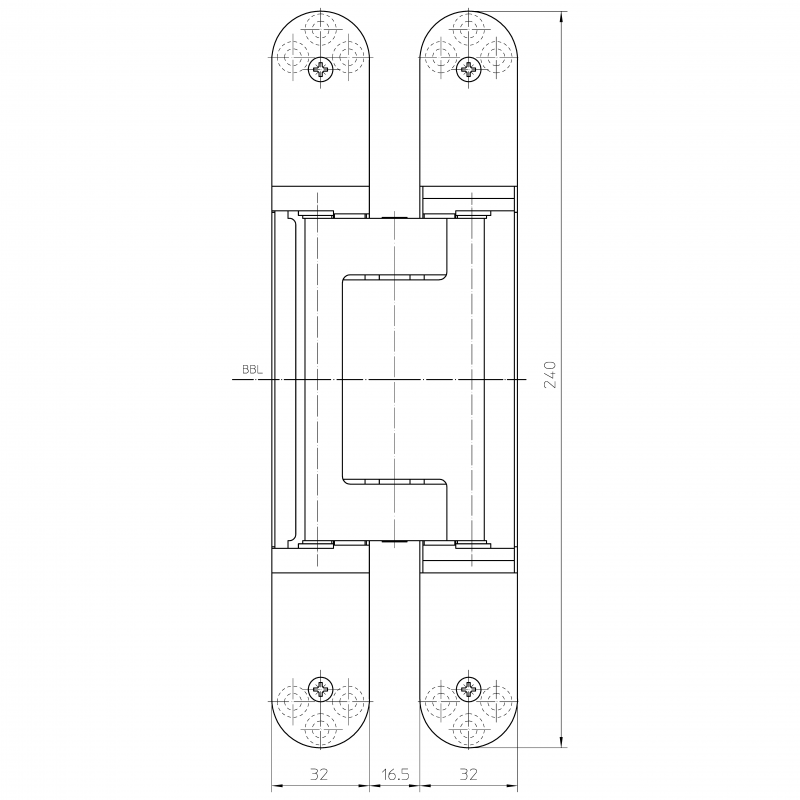

• Overall dimensions: 240mm x 80.5mm

Built for Demanding Door Applications

The Simonswerk TE 640 3D adjustable hinge supports door weights up to 200kg, delivering outstanding load-bearing performance for heavy-duty door leaf applications. Designed with full 3D adjustability, it allows fine-tuned precision. This makes it ideal for demanding, high-traffic environments where long-term reliability, structural strength, and aesthetics are a priority.

These TECTUS concealed hinges are hidden from view when the door is closed. With no external knuckles or protrusions, there's nothing to catch, wear down, or compromise the clean lines of a flush-fitting door. That makes it especially suitable for premium commercial interiors, public buildings, and modern residential projects where durability must meet design.

The Simonswerk offers a full suite of concealed hinge solutions. The TE 640 3D FR includes an integrated intumescent kit, making it suitable for fire rated timber doors without additional components. Meanwhile, the TE 640 3D Energy offers permanent energy transfer for powering access control systems or electric locks within the door.

Both the FR and Energy models offer the same load-bearing performance as the standard TE 640 3D. Other options in the TECTUS hinge system range vary to meet specific performance requirements, such as the TE 540 3D with a load capacity of 120kg.

Need help choosing the right hinge? Our technical team can provide tailored advice for your specific door and frame requirements.

Choice of Finishes for Design Flexibility

The Simonswerk TE 640 3D hinge is available in a selection of six high-quality finishes: matt black, bronze, satin brass, satin chrome, satin nickel, and satin stainless steel. These options complement a wide variety of door hardware. Whether you're specifying a bold black door set for a modern commercial interior or opting for brushed metallic tones in a high-end residential or hospitality project.

The wider Simonswerk TECTUS hinge system is also available in additional finishes on special order. If you require a non-standard finish to suit a particular specification, get in touch with our team to discuss your project requirements.

For a coordinated and refined finish across the door, pair the Simonswerk TE 640 3D hinge with hardware in complementary finishes. Consider a concealed door closer to further enhance the appearance and functionality of the door, an ideal solution for projects that prioritise both performance and aesthetics.

Complete Your Specification with Confidence

The Simonswerk TE 640 3D delivers performance you can depend on with a maximum load capacity of 200kg and 3D adjustability. Available in six finishes, and with additional options on request, it meets the technical and aesthetic demands of modern construction. The TE 640 3D hinge ensures long-term reliability with minimal visual impact.
