UPVC 24V DC Access Control Kit | Fail Safe Electric Strike
This kit contains a 24V DC fail safe electric strike and FUHR lockcase. It is suitable for low security UPVC doors.
Read more24V DC UPVC Access Control Kit for Low Security Doors
This kit includes the key components needed for a low security, standalone access control setup. It provides a practical starting point for adding a 24V DC fail safe electric strike to a single UPVC door.
These items have been selected to work together, helping reduce compatibility issues during installation. It is a reliable base to build your system around.

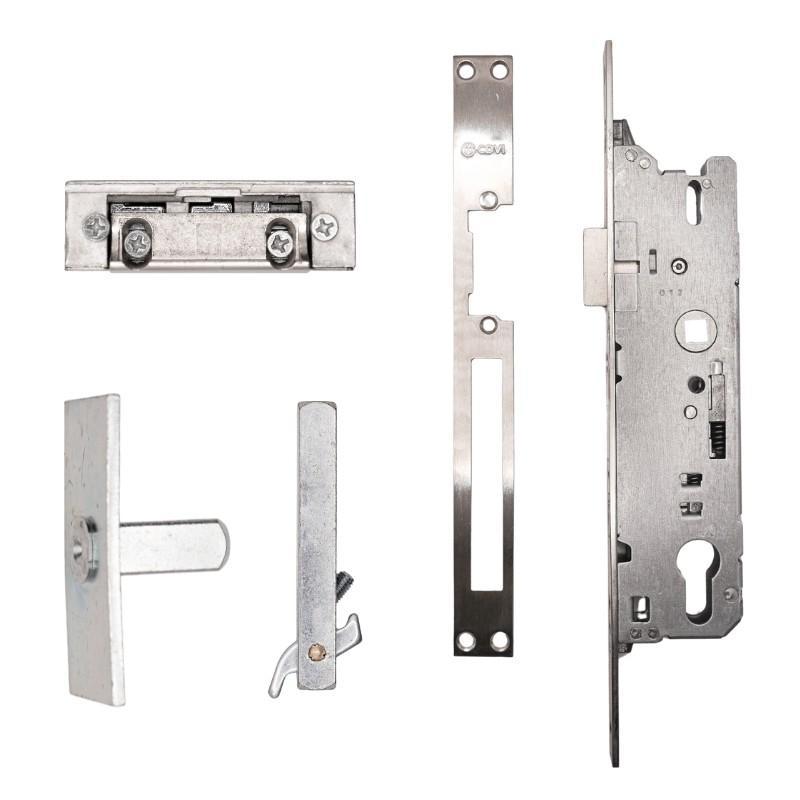

This UPVC electric strike access control kit includes:
- CDVI SIR-24 electric strike
- FUHR lockcase
- Half spindle
- Lever fixing plate
- T290 faceplate
Key Product Features:
Electric Strike
- SIR-24 CDVI electric release
- Part of the S range
- Symmetrical electric strike
- Fail safe
- Operating voltage: 24V DC
- Current consumption: 100mA
- 280kg holding force
- Mortice mounting
- Radial jaw
- 4mm adjustable jaw
- Built-in MOV (metal oxide varistor) to protect from electric spikes that can damage devices
- Small and narrow
- IK10 rated
- UKCA marked
- CE marked
- Tested to 300,000 cycles
- Non-handed
- Stainless steel
- Dimensions: 67mm x 21mm x 28mm
Lockcase
- Lever operated latch and deadbolt
- One full turn of the key to lock
- One full turn of the key, then push down on the lever to unlock
- For internal and external doors
- 20mm deadbolt throw
- Square ends
- Euro profile cut out, cylinder not included
- Backset: 35mm
- Centres: 92mm
- Dimensions: 200mm x 50mm x 16mm
Half Spindle
- For one sided installations
- Square
- Diameter: 8mm
- Length: 60mm
- To suit 40-50mm thick doors
- Steel
Lever Fixing Plate
- Convert a movable lever or pad door furniture into fixed furniture
- Diameter: 8mm
- Pin length: 22mm
- Plate height: 45mm
- Plate width: 23mm
T290 Faceplate
- Faceplate with deadbolt cut-out
- For use with CDVI electric strikes
- Reversible for easier installation
- Flush mounted
- Stainless steel
- Dimensions: 250mm x 25mm x 3mm
24V DC Fail Safe Electric Strike for UPVC Doors
The included CDVI SIR-24 is narrow and compact, making it ideal for UPVC door profiles or narrower frames where space is limited. Its adjustable jaw allows for on-site tolerance, while the non-handed design keeps installation simple.
This is a fail safe electric strike, making it suitable for doors where free egress is required in the event of a power failure. If your project requires a different setup, consider a kit with a 12V DC electric strike or a fail secure option that keeps the door locked if power is lost.
Complete Your UPVC Door Access Control System
Our access control kits provide the foundation for your system. You can complete the setup with the components that suit your application.
You may require:
- 24V DC power supply unit
- Cabling
- Keypad or proximity reader
- Exit button
- Emergency break glass unit
- Lever furniture
- Euro profile cylinder
The final setup depends on your door, how it is used, and the level of control required. Contact our team if you need guidance selecting the right components for your door.
