UPVC 12/24V Access Control Kit | Fail Secure Electric Strike

Fail Secure UPVC Access Control Kit for Low Security Doors

This kit is a simple way to introduce controlled access to a single door using a fail secure electric strike for situations where the door must remain locked if power is lost or removed.

It brings together the main mechanical and electrical components needed to create a reliable access point. It suits low security applications where maintaining a locked condition during power outages is essential, such as areas that require continuous security.

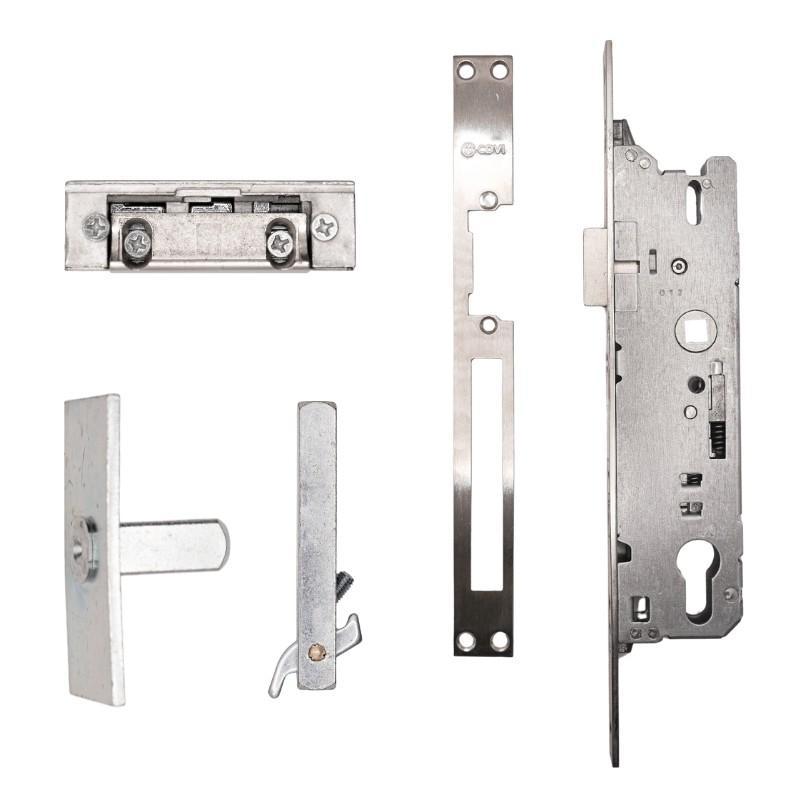

This UPVC electric strike access control kit includes:

• CDVI SR1024 electric strike
• FUHR lockcase
• Half spindle
• Lever fixing plate
• T290 faceplate

Key Product Features:

Electric Strike

• SR1024 CDVI electric release
• Part of the S range
• Symmetrical electric strike
• Fail secure
• Operating voltage: 12/24V AC/DC
• Current consumption:

          235mA @ 12V DC

          200mA @ 12V AC

          470mA @ 24V DC

          400mA @ 24V AC

• 280kg holding force
• Mortice mounting
• Radial jaw
• 4mm adjustable jaw
• Built-in MOV (metal oxide varistor) to protect from electric spikes that can damage devices
• Built-in bi-directional diode
• Small and narrow
• IK10 rated
• UKCA marked
• CE marked
• Tested to 300,000 cycles
• Non-handed
• Stainless steel
• Dimensions: 67mm x 21mm x 28mm

Lockcase

• Lever operated latch and deadbolt
• One full turn of the key to lock
• One full turn of the key, then push down on the lever to unlock
• For internal and external doors
• 20mm deadbolt throw
• Square ends
• Euro profile cut out, cylinder not included
• Backset: 35mm
• Centres: 92mm
• Dimensions: 200mm x 50mm x 16mm

Half Spindle

• For one sided installations
• Square
• Diameter: 8mm
• Length: 60mm
• To suit 40-50mm thick doors
• Steel

Lever Fixing Plate

• Convert a movable lever or pad door furniture into fixed furniture
• Diameter: 8mm
• Pin length: 22mm
• Plate height: 45mm
• Plate width: 23mm

T290 Faceplate

• Faceplate with deadbolt cut-out
• For use with CDVI electric strikes
• Reversible for easier installation
• Flush mounted
• Stainless steel
• Dimensions: 250mm x 25mm x 3mm

Fail Secure Electric Strike for UPVC Doors

The CDVI SR1024 electric strike is well suited to UPVC doors, with a compact body that fits neatly into narrower frames. The adjustable jaw also allows for accurate alignment on site.

The SR1024 supports both 12V and 24V, in AC or DC, giving you flexibility when working with different power supplies or integrating into existing systems.

Fail secure operation means the strike remains locked when there is no power. This makes it the preferred choice for doors where security must be maintained at all times. Alternative kits with fail safe electric strikes are also available in 12V DC and 24V DC options to suit doors that require free egress in the event of a power failure.

Build Your UPVC Door Access Control System

This kit provides the core lock and strike components, allowing you to complete the system based on your specific requirements.

You may require:

• Power supply unit
• Cabling
• Keypad or proximity reader
• Exit button
• Lever furniture
• Euro profile cylinder

If you are unsure which components to pair with this kit, contact our team for guidance on tailoring this kit to suit your door.
