UPVC 12V DC Access Control Kit | Fail Safe Electric Strike

12V DC UPVC Access Control Kit for Low Security Doors

This kit gives you a practical starting point for adding controlled access to a single UPVC door. It contains the core components needed for a low security, standalone setup using a 12V DC fail safe electric strike from CDVI.

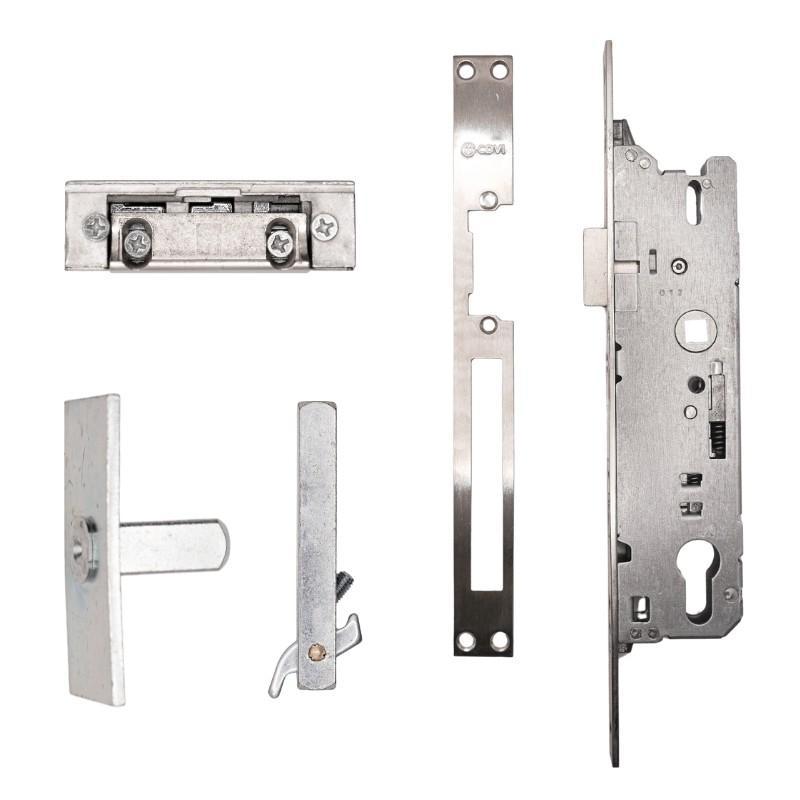

This UPVC electric strike access control kit includes:

• CDVI SIR-12 electric strike
• FUHR lockcase
• Half spindle
• Lever fixing plate
• T290 faceplate

Key Product Features:

Electric Strike

• SIR-12 CDVI electric release
• Part of the S range
• Symmetrical electric strike
• Fail safe
• Operating voltage: 12V DC
• Current consumption: 200mA
• 280kg holding force
• Mortice mounting
• Radial jaw
• 4mm adjustable jaw
• Built-in MOV (metal oxide varistor) to protect from electric spikes that can damage devices
• Small and narrow
• IK10 rated
• UKCA marked
• CE marked
• Tested to 300,000 cycles
• Non-handed
• Stainless steel
• Dimensions: 67mm x 21mm x 28mm

Lockcase

• Lever operated latch and deadbolt
• One full turn of the key to lock
• One full turn of the key, then push down on the lever to unlock
• For internal and external doors
• 20mm deadbolt throw
• Square ends
• Euro profile cut out, cylinder not included
• Backset: 35mm
• Centres: 92mm
• Dimensions: 200mm x 50mm x 16mm

Half Spindle

• For one sided installations
• Square
• Diameter: 8mm
• Length: 60mm
• To suit 40-50mm thick doors
• Steel

Lever Fixing Plate

• Convert a movable lever or pad door furniture into fixed furniture
• Diameter: 8mm
• Pin length: 22mm
• Plate height: 45mm
• Plate width: 23mm

T290 Faceplate

• Faceplate with deadbolt cut-out
• For use with CDVI electric strikes
• Reversible for easier installation
• Flush mounted
• Stainless steel
• Dimensions: 250mm x 25mm x 3mm

Access Control for UPVC Doors with a CDVI Electric Strike

This kit includes a CDVI SIR-12 designed for UPVC door profiles. Its compact size suits narrower frames, while the adjustable jaw allows for on-site tolerance. The non-handed design also supports a more straightforward installation.

It is a fail safe electric strike, so it releases when power is lost. This makes it suitable for sites where free egress is required in the event of a power failure.

If your project requires a different setup, consider a kit with an alternative CDVI S range electric strike, such as the SIR-24 for 24V operation, or the SR1024 fail secure option, where the door remains locked during power outages.

UPVC Door Access Control Kit to Help Build Your System

This access control kit provides a straightforward starting point for adding an electric release to a UPVC door. It combines a compatible lockcase, electric strike, and key hardware.

The essentials are included while allowing you to select the controls and accessories that suit your door. You can build the rest of the system around it using new or existing components, depending on site requirements.

You may require:

• Power supply unit
• Battery backup
• Cabling
• Keypad or proximity reader
• Exit button
• Emergency break glass unit
• Lever furniture
• Euro profile cylinder

Every installation is different. The final setup depends on your door and how it is used. If you need support, contact our team for guidance on selecting the right components for your system.
