12V DC 3A Single Door Monitored Maglock Access Control Kit

Fire Rated Access Control Door Kit

This access control kit provides the essential components to start building a compliant and adaptable door entry system. It includes a monitored slimline maglock with a compatible intumescent kit, a resettable emergency break glass unit, a press to exit button, and a 12V DC 3 Amp power supply unit.

To create a complete, operational access control system, you must add an activation device such as a keypad or proximity reader. Depending on your door type and site requirements, you may also need optional extra components such as maglock mounting brackets or a battery backup, all sold separately.

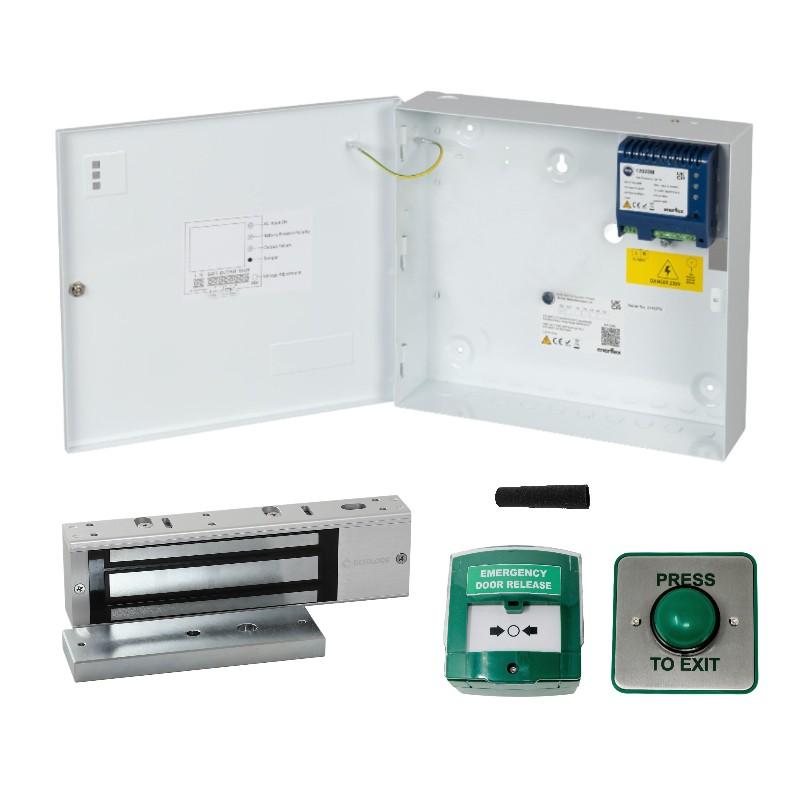

This fire rated access control kit includes:

• 12V DC 3 Amp access control power supply unit with a set of four magnetic stand-offs
• AEM20002 monitored maglock
• Intumescent kit to suit the AEM20002 maglock
• Resettable emergency break glass unit (double pole)
• Press to exit button in satin stainless steel with a green dome

Key Product Features

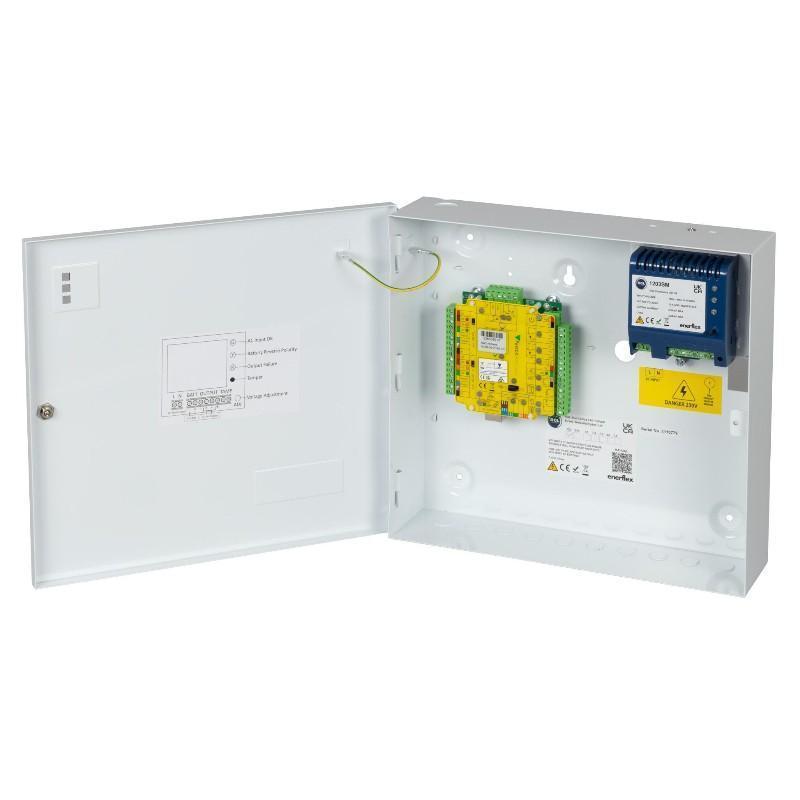

RGL 12V DC Access Power Supply Unit

• DIN rail mounted power module for quick installation and upgrade
• Modular design allows future upgrades without removing the enclosure
• 12–14V DC adjustable output
• Up to 92% efficient
• Space for up to 18Ah backup battery (sold separately)
• Magnetic stand-offs for easy board positioning without tools (boards not included)
• Raised mounting allows for tidy cable routing inside the enclosure
• Short circuit and deep discharge protection
• Robust steel enclosure for longevity
• Dimensions: 310mm x 340mm x 80mm

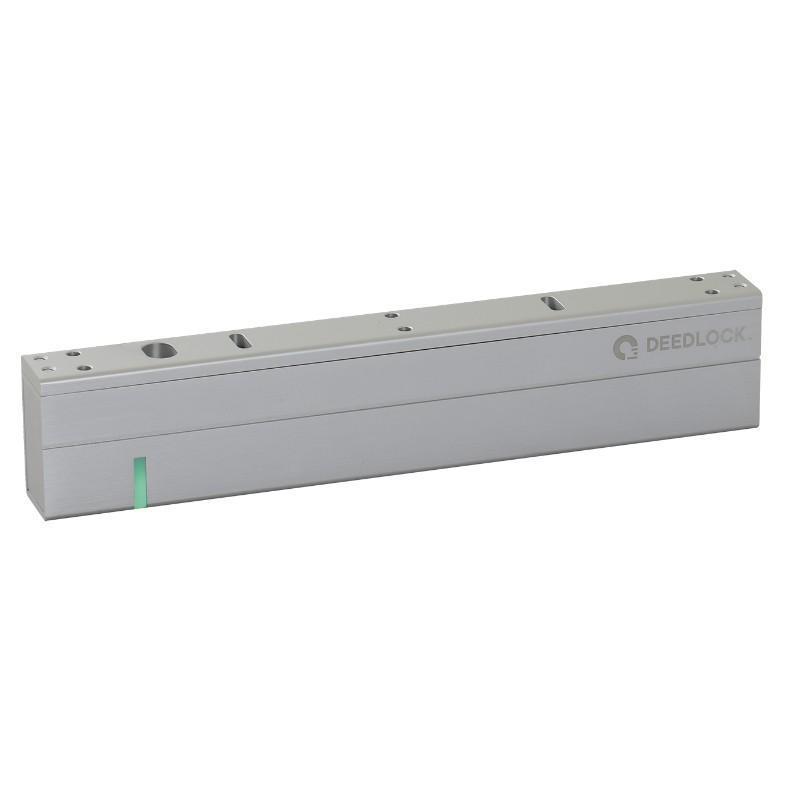

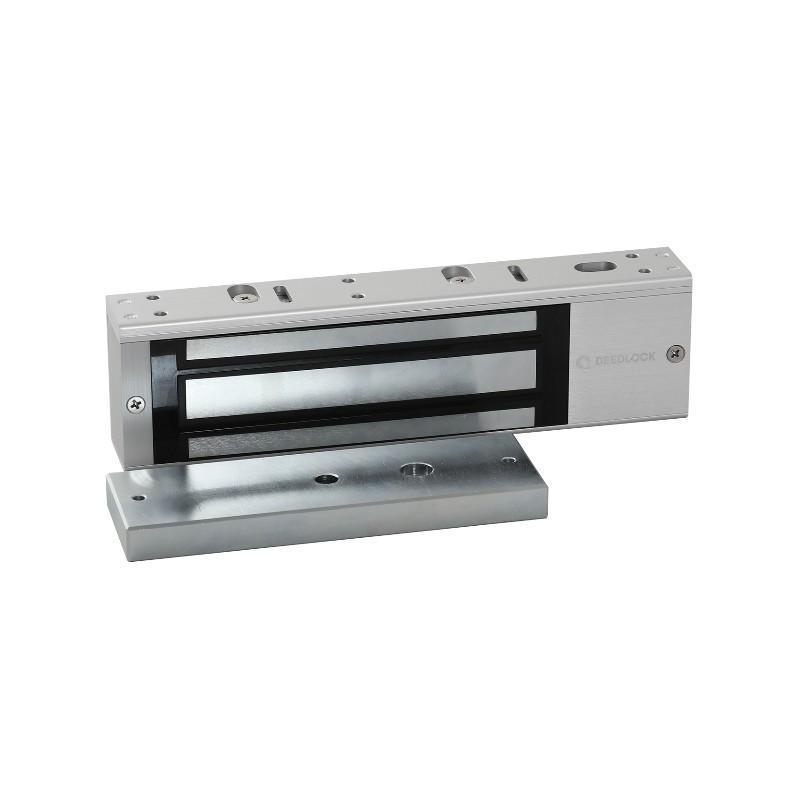

Deedlock AEM20002 Maglock

• 272kg (600lbs) holding force
• Slimline surface mounted design
• Self regulating dual voltage 12V/24V DC
• Current consumption: 500mA at 12V DC
• LED lock status indication visible up to 180°
• Monitoring functionality
• Fail safe operation

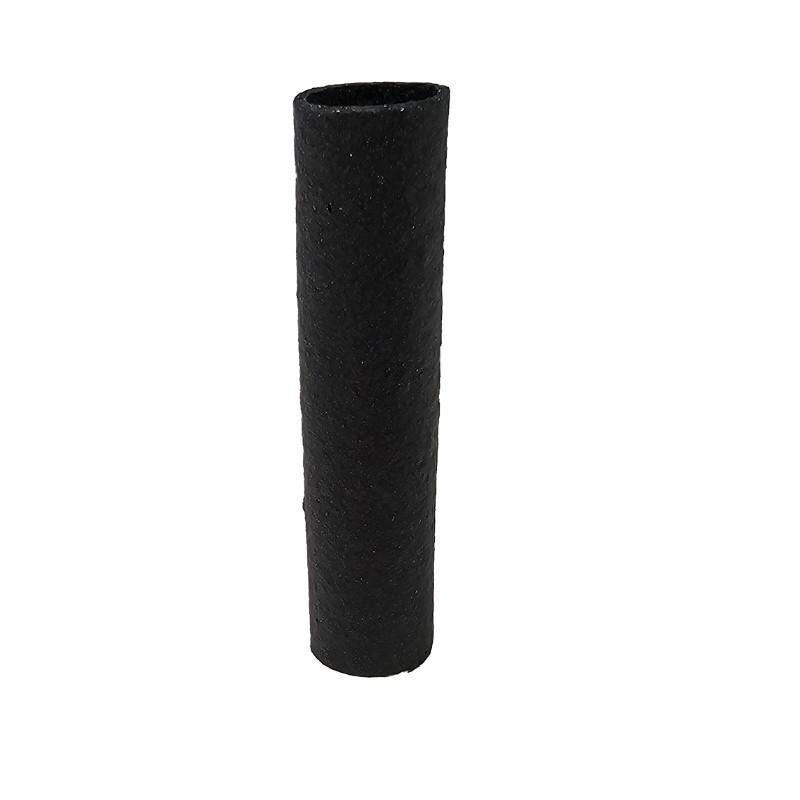

Deedlock SINAEM10 Intumescent Kit

• Graphite based intumescent
• Expands when exposed to high temperatures
• Designed to suit the AEM20002 maglock
• Tested to BS EN 1634-1 for 30 and 60 minute timber fire doors

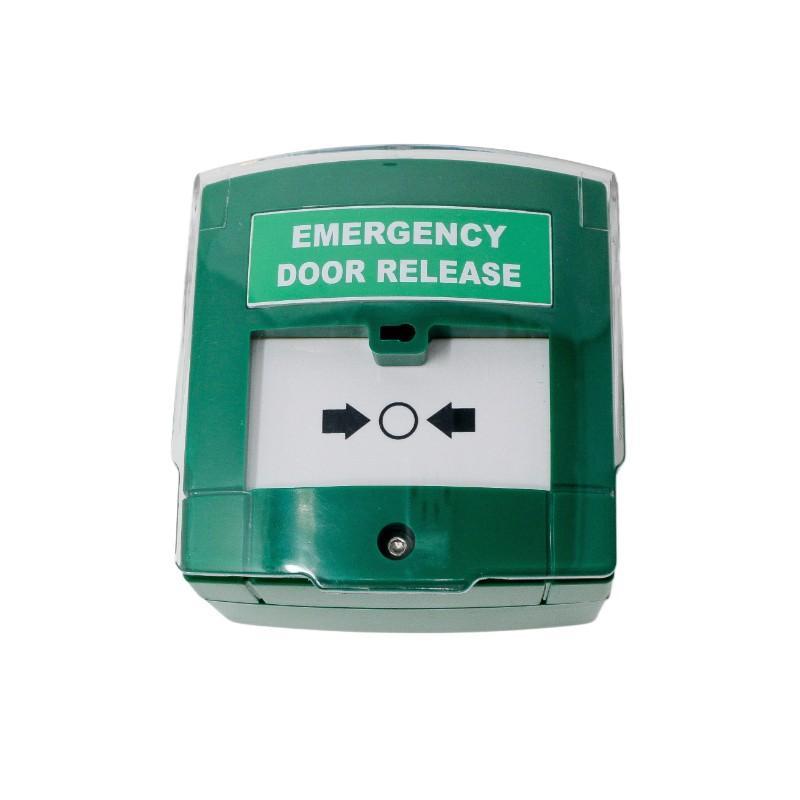

RGL Emergency Break Glass Unit

• Resettable design avoids replacing glass after activation
• Double pole
• Illuminated for improved visibility
• IP24 rated for internal use
• Surface or flush mountable
• Rear and side cable entry points

The reset keys are sold separately.

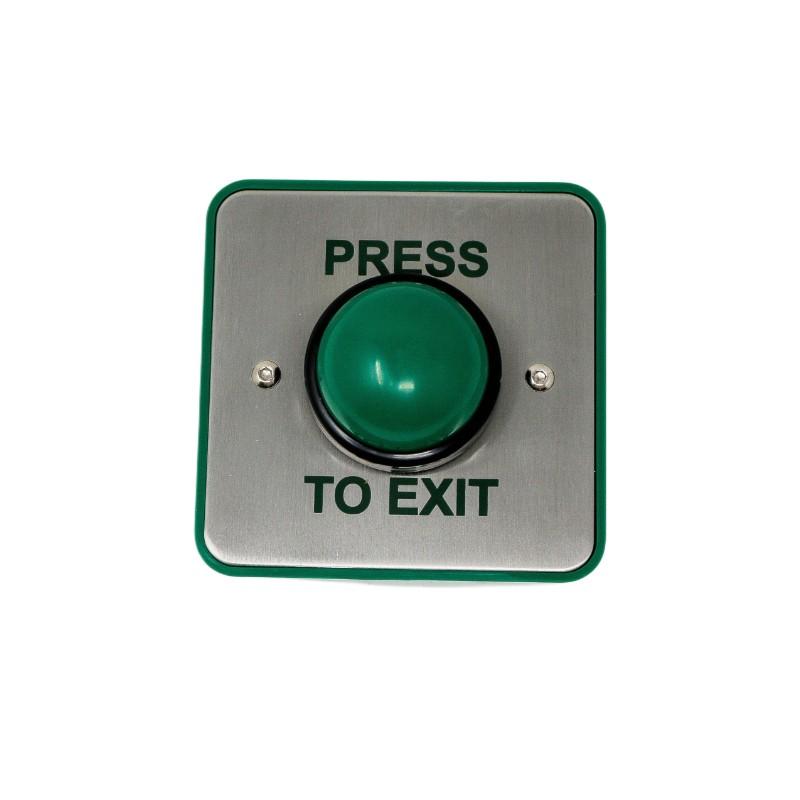

Green Dome Press to Exit Button

• Momentary action for controlled door release
• IP66 rated
• Stainless steel faceplate resists wear and damage
• Green dome actuator for quick identification

Scalable Power Supply for Growing Systems

The included 12V DC 3 Amp access control power supply is built with performance and flexibility in mind. Its modular format allows the power supply to be upgraded for a higher amperage version without removing the enclosure or disturbing other installed components and wiring. This allows your system to adapt to your developing security needs.

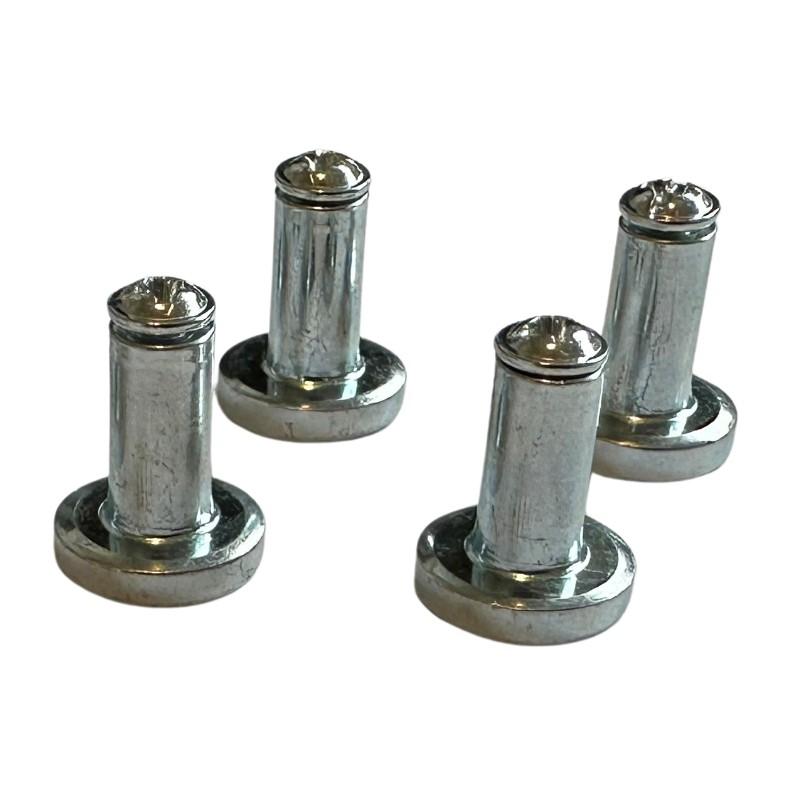

Magnetic stand-offs are supplied in a set of four, enough to mount one controller or board. These stand-offs raise the board above the base of the enclosure, creating space for discreet cable routing and a cleaner, more organised installation. They also allow the board to be repositioned easily without tools, making servicing and configuration changes straightforward. They are compatible with controller boards from many leading access control brands, including Paxton and Salto.

Complete Your Single Door Access Control Kit

This fire rated access control kit gives you a starting point for a compliant and adaptable secure access solution. From here, you can add the activation device and additional components like maglock brackets, accessories, and relays to meet the operational demands and safety requirements of your door. Explore our full access control range.

Maglock Brackets: Selecting the Right Fit

Depending on your door configuration, a maglock mounting bracket may be required, although some outward opening doors can have a maglock fitted without one.

• L Bracket: For outward opening doors
• Z & L Bracket Set: For inward opening doors
• Glass Door Brackets

Keypads and Proximity Readers: Flexible Access Control

Customise your kit by adding an entry device that aligns with your site’s user flow and aesthetic:

• Heavy Duty Vandal Resistant Keypads: For high use or public areas doors
• Slimline Access Control Keypads: Ideal for installations with limited mounting space
• Proximity Readers: Contactless operation with cards or fobs for convenience
• Bluetooth and Wi-Fi Control: For remote management and temporary code issuing

Optional Battery Backup: Maintain Operation in Power Cuts

The included PSU can house a backup battery up to 18Ah (sold separately) to maintain operation during temporary mains failures. When connected to a fire alarm interface, the maglock will release immediately upon alarm activation, even if running on battery power.

Relays and Accessories: Expand System Capability

• Time Delay Relays: Keep doors unlocked for a set period after activation
• Interlock Relays: Control the operation of two doors to prevent simultaneous unlocking
• Magnetic Stand-offs: A set of four magnetic stand-offs is included with this kit, and they are also available to purchase separately.

Our Wider Access Control Kit Range

If this fire rated single door access control maglock kit doesn’t fully meet your project’s requirements, explore our other options:

• Fire Rated Maglock Kit with Power Supply Options: Choose from 1A, 2A, or 3A PSU
• Access Control Kit in Matt Black: Available in both fire rated and non fire rated versions

Discover our full range of access control kits, or contact our team for expert guidance in selecting the right configuration to ensure your system meets all safety, compliance, and operational needs.
