12V DC Single Door Maglock Access Control Kit | Black
This single door access control kit includes a 12V DC PSU, monitored maglock, press to exit button, and emergency break glass unit. The maglock, press to exit button, and armature housing (fire rated only) are in a matt black finish.
Select from fire rated or non fire rated versions of this kit to suit your needs.
Read more
Architectural Maglock Z and L Bracket - Inward Opening Doors
Architectural L Maglock Bracket - Outward Opening Doors

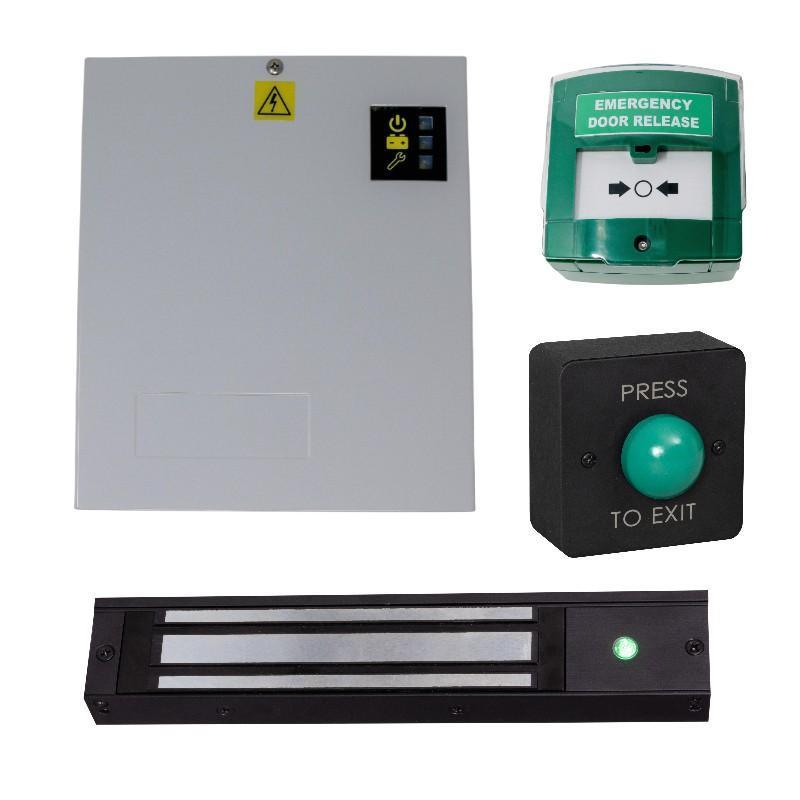

Access Control Kit in Black: Single Door Maglock System
This single door access control kit in black is designed as the foundation for a custom, secure entry solution. It includes the essential components to manage a controlled door but allows you to choose a keypad or proximity reader to suits your project.
This kit includes:
- 12V DC power supply unit - 1 Amp
- ML600M matt black maglock - monitored
- Matt black press to exit button - green dome
- Green emergency break glass unit - single pole
The fire rated version also includes the armature housing to suit the maglock in black.
Key Product Features

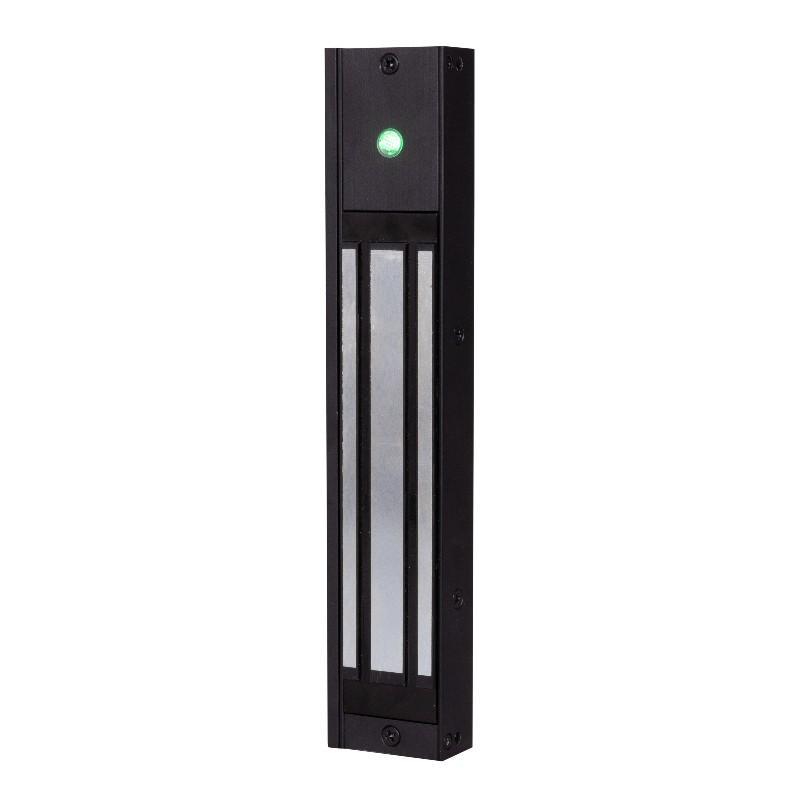

Maglock
- Model: ML600M mini electromagnetic lock
- Finish: Matt black
- Holding Force: 280kg
- Voltage: 12/24V DC selectable @ 480mA/240mA
- Monitoring: Voltage free relay contacts, multiple LED indicators
- Certification: Fire tested to BS EN 1634-1:2014 & BS 476: Part 22 -1987 for FD30–FD120 timber fire doors when installed with the appropriate armature housing (included with the fire-rated kit only)
- Protection: Surge protection, no residual magnetism

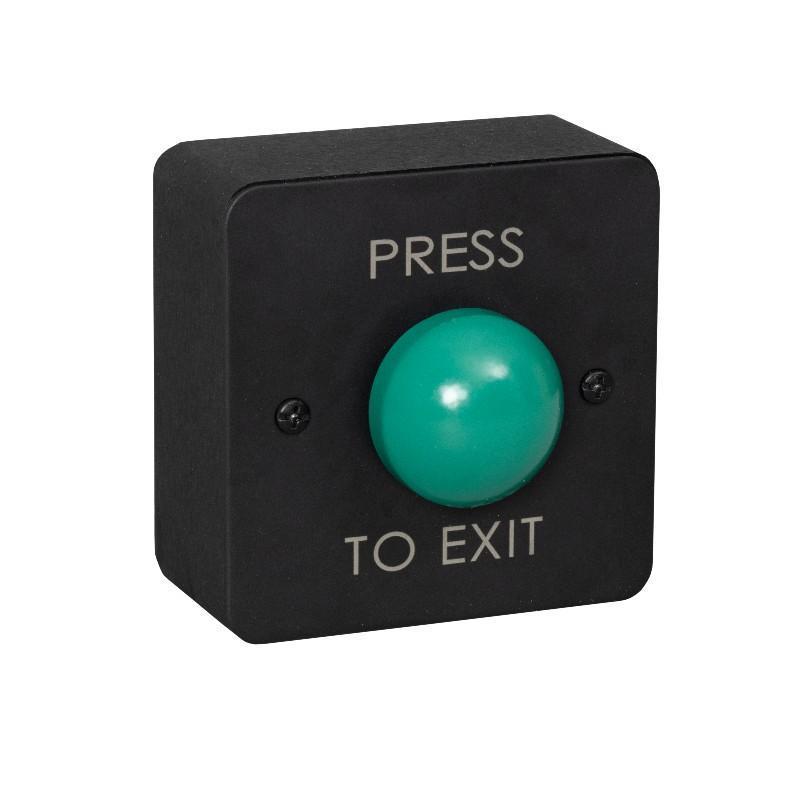

Request to Exit Button – Black with Green Dome
- Type: Matt black press to exit button with green dome
- Contacts: Double pole NO/NC
- Rating: IP66, vandal resistant
- Mounting: Surface
- Action: Momentary press

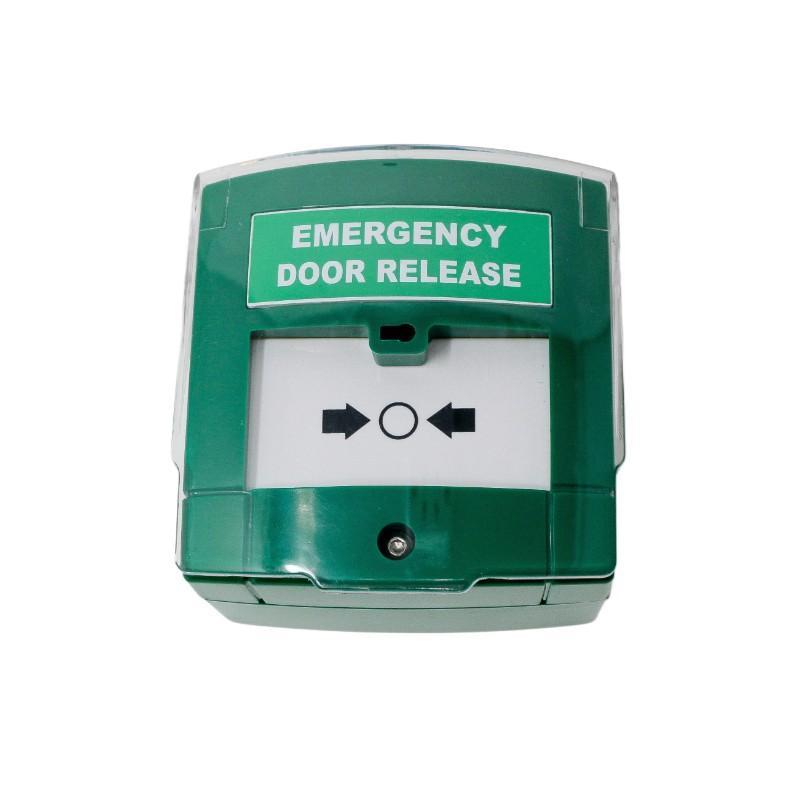

Emergency Door Release Call Point
- Type: Green resettable break glass unit
- Pole: Single pole
- Illumination: Permanently backlit
- Sounder: Audible with silence option
- Mounting: Surface or flush
- Rating: IP24 for internal use
- Cover: Flip up front plastic cover
Please note that the reset key is sold separately.

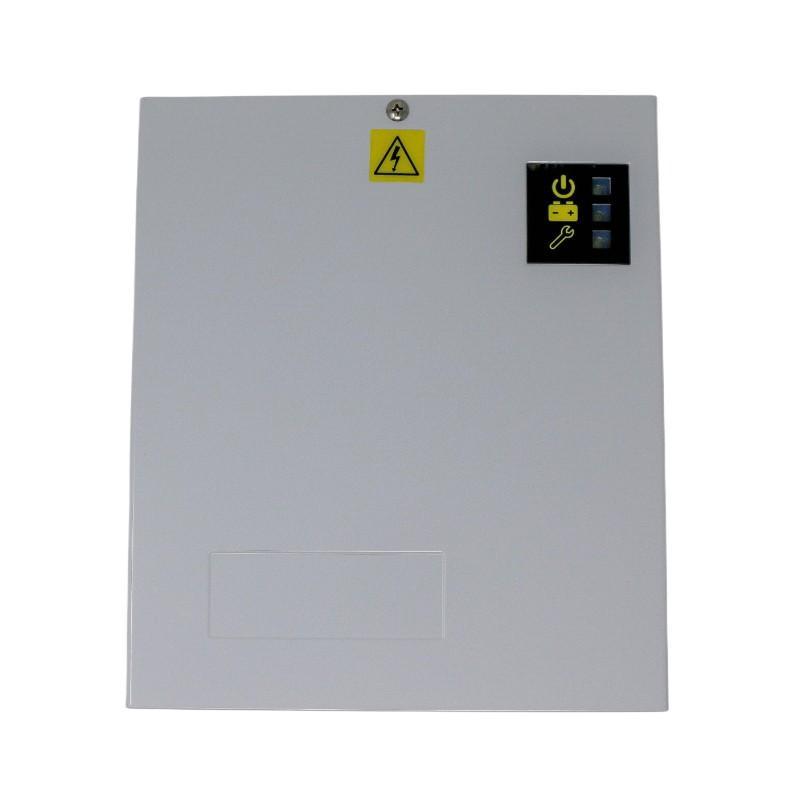

12V DC Power Supply Unit
- Output: 12V DC, 1 Amp, switchmode technology
- Efficiency: Up to 92%
- Enclosure: White steel
- Backup Battery: Compatible (battery not included)
- Dimensions: 225mm x 196mm x 75mm
Fire Rated Kit
- Includes Additional Component: Black armature housing for ML600 maglock
- Fire tested to BS EN 1634-1:2014 & BS 476: Part 22 -1987 for FD30–FD120 timber fire doors
Fire Rated Access Control Maglock Kit in Black
When fire safety compliance is essential, select the fire rated version of this kit. This option includes the armature housing in matching matt black, so the maglock can be fitted to timber fire doors without drilling a hole all the way through the door leaf for the armature plate fixings.
The RGL ML600 maglock range has been tested to BS EN 1634-1:2014 and BS 476: Part 22:1987 for use on FD30 and FD60 timber door sets when combined with the ML600 armature housing.
Always consult the door manufacturer’s fire test evidence for compliance.
Build Your Custom Access Control Door Kit
This black maglock single door access control kit is the ideal foundation for a tailored entry system. Simply add the components that meet your operational and aesthetic needs to create a complete solution for your door.
Maglock Brackets: Choosing the Right Option
To suit different door configurations, you may need maglock mounting brackets:
- L Bracket: For outward opening doors
- Z & L Bracket Set: For inward opening doors
Correct bracket selection ensures secure installation and optimal holding force.
Keypads and Proximity Readers: Flexible Entry Options
Customise your kit with an activation device that matches your site’s requirements.
Popular choices include:
- Matt Black Galeo Keypad: Modern styling with a durable, vandal resistant design and up to 100 user code capacity
- APX 18 Standalone Proximity Reader: Contactless operation with up to 2000 user fobs or cards for a clean, minimalist look
Other options to consider:
- Heavy Duty Keypads: Robust, vandal resistant units for demanding environments
- Narrow Access Control Keypads: Ideal for installations with limited space
- Wi-Fi or Bluetooth Controlled Devices: Manage access remotely, issue temporary codes, and control via mobile app
- Proximity Readers: Quick, contactless access without the need for a keypad
Discover our full range of access control solutions to find the perfect match, or contact our team for expert advice on selecting the right fit for your door.
Optional Battery Backup: Maintain Power During Outages
The power supply unit can house an optional backup battery, sold separately, to provide continued operation during temporary mains failures.
Even with battery backup, the system can connect to a fire alarm interface. When triggered, this will override the battery and release the maglock for free egress.
Relays and Accessories: Advanced Functionality
Add relays and accessories to expand system capability:
- Door Lock Interface Relay: For interlocking two doors
- Timer Relay: For timed unlocking or delayed locking
- Fire Relay: For fire alarm system integration
Our Standalone Access Control Kit Range
If this single door access control system kit doesn’t meet your exact requirements, browse our full range of kits or contact us for personalised guidance.
Available options include:
- Gate Kit for External Use: Designed for outdoor gates, supplied with a weather-resistant external maglock and matching bracket
- Fire Rated Kit with Power Supply Options: Choose from 1 Amp, 2 Amp, or 3 Amp power supplies to meet your system’s current draw and compliance requirements
- Double Door Kit with Keypad: For double door sets, supplied with a double maglock and compatible keypad for secure entry control
Our experts will help you find the right door access control setup for your project.
