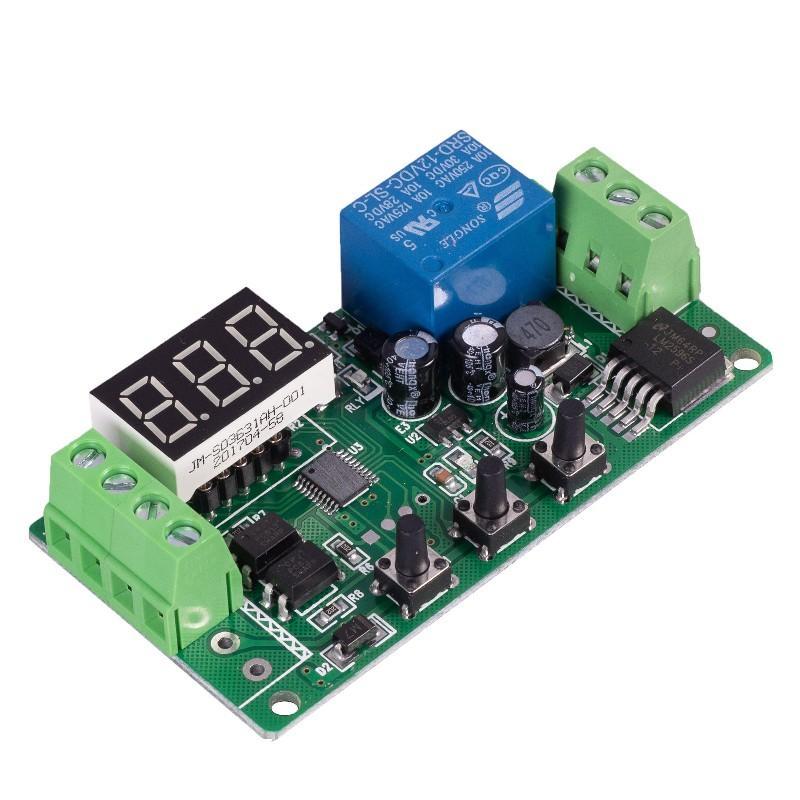

Timer Relay 12/24V DC Input at 45mA
A RGL Timer Relay 12/24V DC Input which can be set for times between 0.1 - 999 seconds.
Read moreAn access control timer relay that can be set for times between 0.1 - 999 seconds.
Technical specifications:
- Timer relay unit
- 12v or 24v DC input at 45mA
- Contact rating 10A @ 125VAC or 10A @30VDC
- NC/COM/NO
- LED Timer Indication
Features:
- Timer 0.1 to 999 seconds
- Or 1 to 999 minutes
- Operates on a positive or negative pulse
- Dimensions: 76mm x 40mm x 17mm
