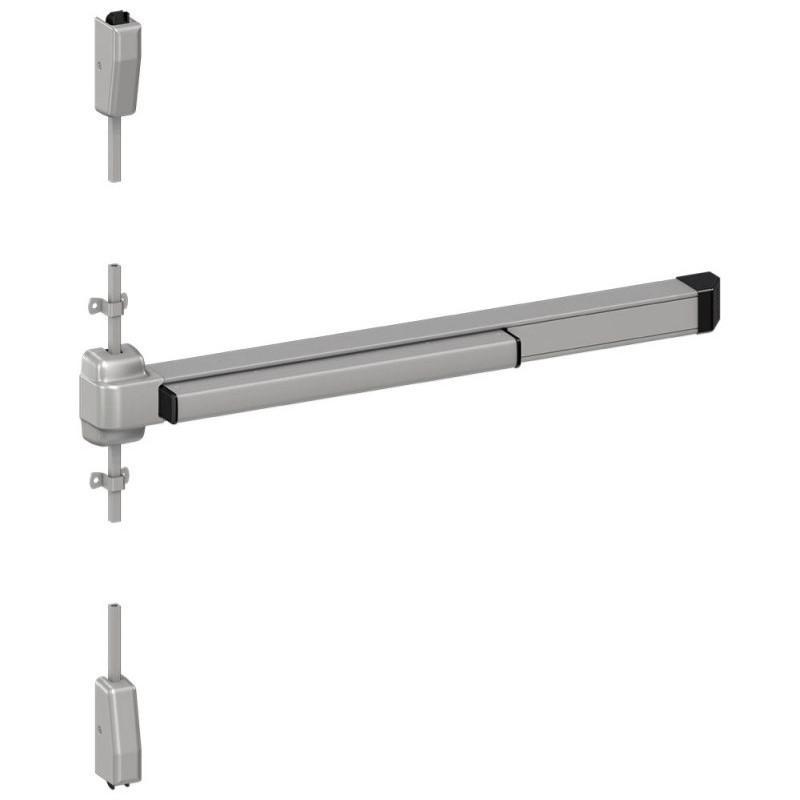

Von Duprin 2227EO Touch Bar Vertical Panic Bolt

Von Duprin 2227 Panic Bar With Vertical Latches

The Von Duprin 2227EO is a heavy duty vertical rod panic bar, built for high traffic public environments. Tested to BS EN 1125, this surface mounted device aids safe, intuitive exit from buildings where users may be unfamiliar with the door, such as schools, hospitals, and public facilities. It features top and bottom deadlocking bolts, offering secure two point latching with a responsive touch bar for emergency egress.

Part of the trusted Von Duprin 22 Series, this non-handed model is suitable for single or double doors and offers durability in demanding commercial settings.

Key Product Features:

• Von Duprin 2227EO.SP28
• Part of the Von Duprin 22 Series
• Heavy duty touch bar with vertical panic bolts
• Top and bottom latches
• Tested to EN 1125
• Suitable for escape doors in public-access areas
• Non-handed
• Hex key dogging
• 2 sizes: For doors up to 915mm or 1220mm wide
• For doors up to 2134mm high*
• Suitable for single or double internal and perimeter doors
• Stile Width Required: Minimum 92mm
• Deadlocking anti-friction top and bottom bolts with 16mm throw
• Projection: 94mm
• Strikes Supplied:

          299 top roller strike
          248L-4 bottom strike (surface mount)
          304L bottom strike (mortice fix)

• Includes fixings for metal and timber doors, 44mm or 57mm thick
• Constructed from heavy gauge steel
• Silver finish with black end caps

Extension rods for taller doors, fire rated models, alternative finishes, and different strike options are available so please contact our team to enquire.

Certified For Public Use And Life Safety Compliance

The 2227EO is tested to BS EN 1125:2008, the European standard for panic exit devices on escape doors in public buildings. It is designed to provide safe and effective egress for building occupants with no prior knowledge of the door hardware.

This makes it ideal for use in high traffic public spaces, including educational buildings, healthcare facilities, offices, shops, and transport hubs. The responsive touch bar and intuitive operation allow a single action exit in an emergency.

Installation must comply with EN 1125 fitting heights: typically 900mm–1100mm from finished floor level, or lower where children are the primary users.

Reliable Egress In Demanding Environments

A touch bar operates with a simple forward push, rather than a hinged action. The mechanism is housed within a casing with no gaps around the bar. You can read more about touch bars and other panic hardware types in our Types of Panic Hardware blog.

With top and bottom vertical rods and a heavy gauge steel body, this Von Duprin panic bar provides strong, consistent performance in areas where abuse and heavy use are expected. The anti-friction bolts help reduce resistance during operation and extend the life of the device and strike components.

Its non-handed design simplifies specification and installation, while the 94mm projection makes it suitable for doors with limited backset.

Complete Your Door Setup With Trims And Safety Accessories

Engineered as part of the trusted Von Duprin 22 Series, the 2227EO panic bar delivers long lasting performance where safety, security, and compliance cannot be compromised. Built for high traffic environments, it provides dependable operation and secure egress, making it a proven choice for public buildings and commercial sites.

Explore the wider Von Duprin panic hardware range:

• Von Duprin Lever Trim: Key and lever operated outside access device
• Von Duprin Night Latch Trim: Key operated outside access device
• Von Duprin 22EO Panic Latch: Touch bar with panic latch

For a complete solution, pair this hardware with an illuminated emergency break glass unit featuring the running person symbol, alongside fire exit signage for full compliance with escape route requirements. Discover our complete panic hardware range.
