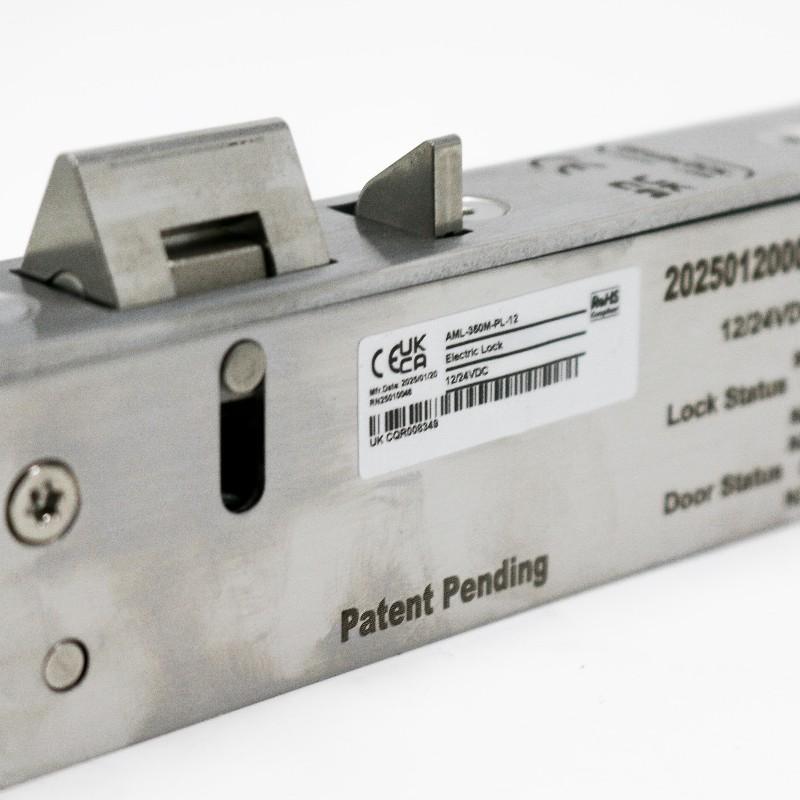

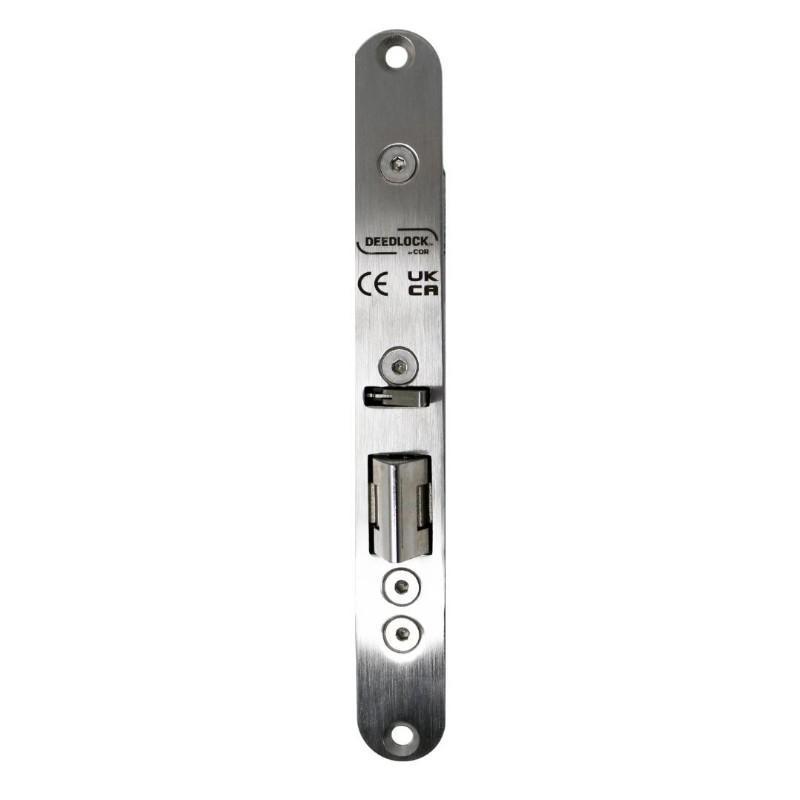

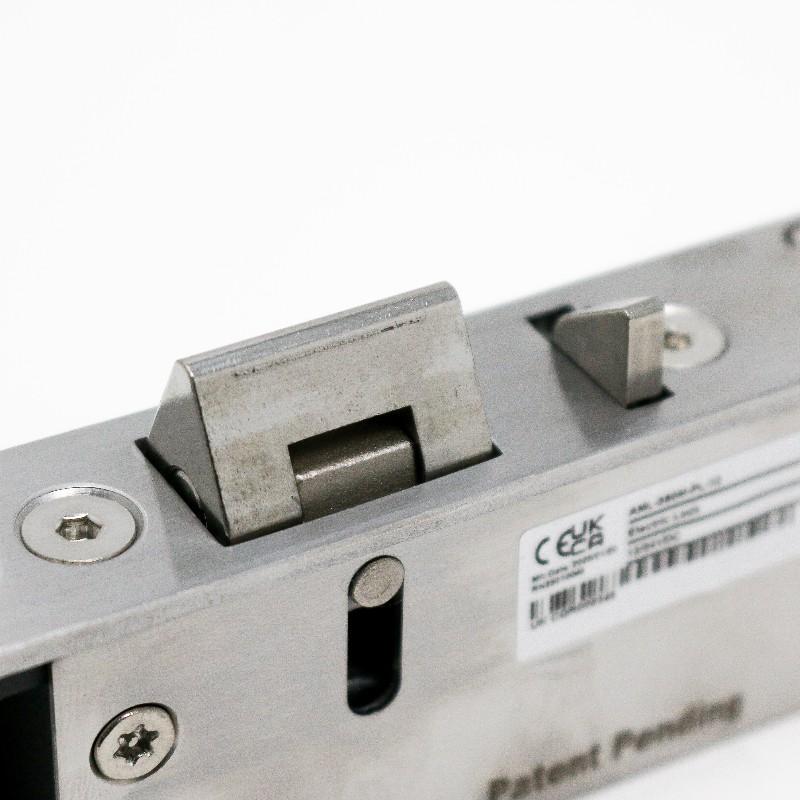

GEM ML350 Electric Lock | 12/24V DC | Fail Safe
The GEM ML350 Electric Lock has a dual 12/24V operating voltage and options for fire rated and non-fire rated doors. Its high preload capacity provides a smooth operation under varying loads on the door.
Read more
GEM ML350 Electric Lock: Reliable Electric Locking for Narrow Doors
The GEM ML 350 electric lock is designed to meet the demands of modern access control and fire doors. With dual monitoring, pre-load capability and slimline design, it delivers dependable performance even for narrow doors.
The ML350 electric lock is tested to EN 1634-1 for single action 30 and 60 minute timber doors. The fire rated option is supplied complete with 1mm Interdens intumescent, which encases the body of the lock and is fitted behind the forend and the keep.
Key Product Features:
- AML-350M-PL-12

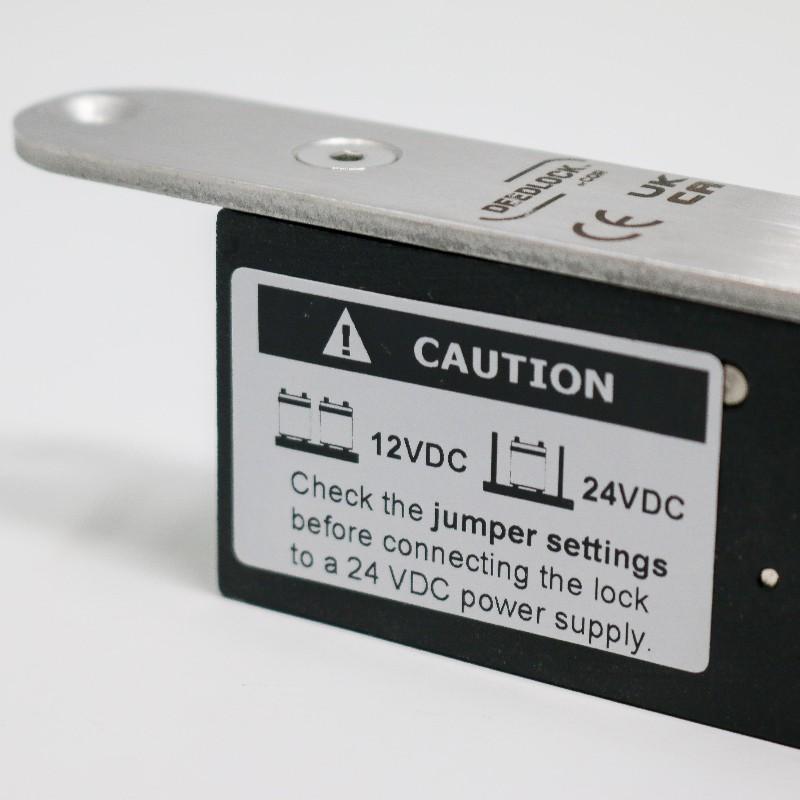

- 12/24V DC dual operating voltage
- Voltage Tolerance: ±10%
- Current consumption:
280mA @ 12V DC
140mA @ 24V DC
- Fail safe (fail unlocked)
- 1500lbs/680kg holding force
- 500lbs/230kg preload

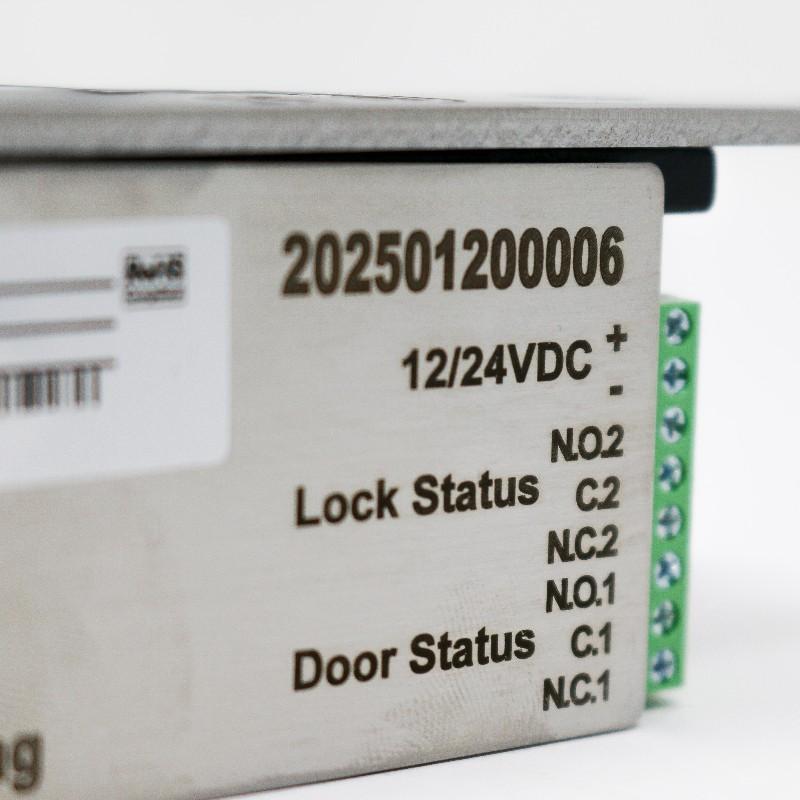

- Lock and door status monitoring
- Solenoid tested to over 250,000 cycles
- Suitable for double and single action doors*
- Suitable for narrow frames
- Vertical and horizontal mounting
- Fire tested to BS EN 1634-1:2014 for 30 and 60 minute single action timber doors
- Fire rated version includes the intumescent kit
- Operating temperature: -10 to 45°C
- Stainless steel

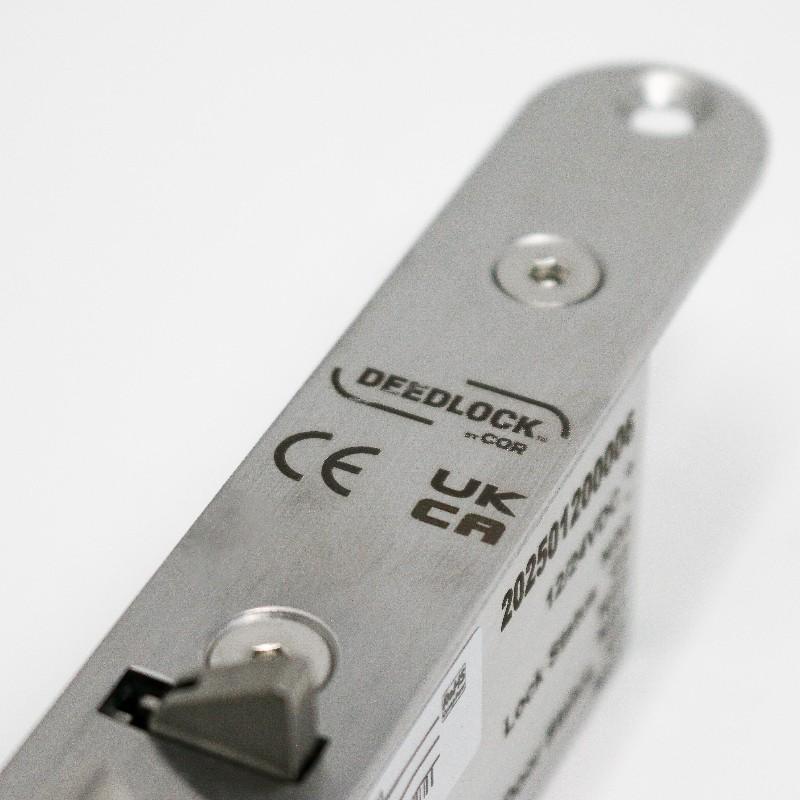

- CE marked
- Dimensions: 200mm x 25mm x 39.5mm
* Fire tested for FD30 and FD60 single action doors only
Electric Locking with Preload and Dual Monitoring
The ML350 GEM electric lock is built for strength and security. It delivers a holding force of 1500lbs, providing reliable locking for high security environments. It can handle preload of up to 500lbs to ensure the lock releases even under pressure, making it ideal for doors fitted with seals, closers or subject to air pressure.

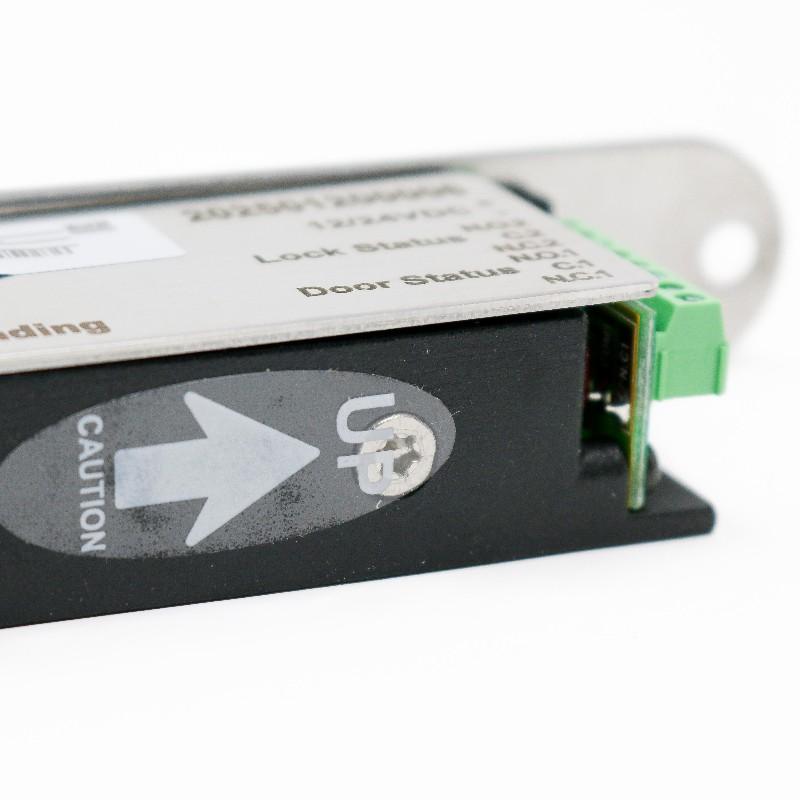

The ML350 features dual monitoring for both lock status and door position, allowing full integration with networked access control systems and enabling real time security reporting.
This lock operates in fail safe mode (also known as fail unlocked or power to lock), meaning it will unlock automatically if power is lost, supporting safe exit. If your project requires a fail secure solution, please contact our team for guidance.
The GEM ML350 electric lock datasheet, installation instructions, and other supporting documents are available to download from the product documents section.
GEM ML350 Electric Lock for Fire Doors
The GEM ML 350 is fire tested to BS EN 1634-1:2014, approved for use on 30 and 60 minute single action timber fire doors. When the fire rated option is selected from the drop down menu, the 1mm Interdens intumescent kit is included. This kit should be applied around the lock body, forend, and strike at installation. The intumescent expands when exposed to high temperatures to help slow the spread of fire.
To ensure a compliant installation, always refer to the fire test evidence for your specific door.
Electric Locking and Access Control Solutions
Electric locking is a critical component of any access control system, and the GEM ML350 offers a dependable fire rated solution. We also supply a comprehensive selection of electric locking devices to suit a wide range of requirements, whether you’re upgrading one door or installing across a whole site.
Within the GEM collection, the GK700 electric strike stands out with its reversible fail safe/fail secure settings and dual monitoring.
Our wider stocked electric locking solutions include:
- Maglocks
- Electric strikes
- Shearlocks
- Motorised and solenoid locks
Explore our access control components or contact our technical team for expert advice on selecting the right products for your project.
