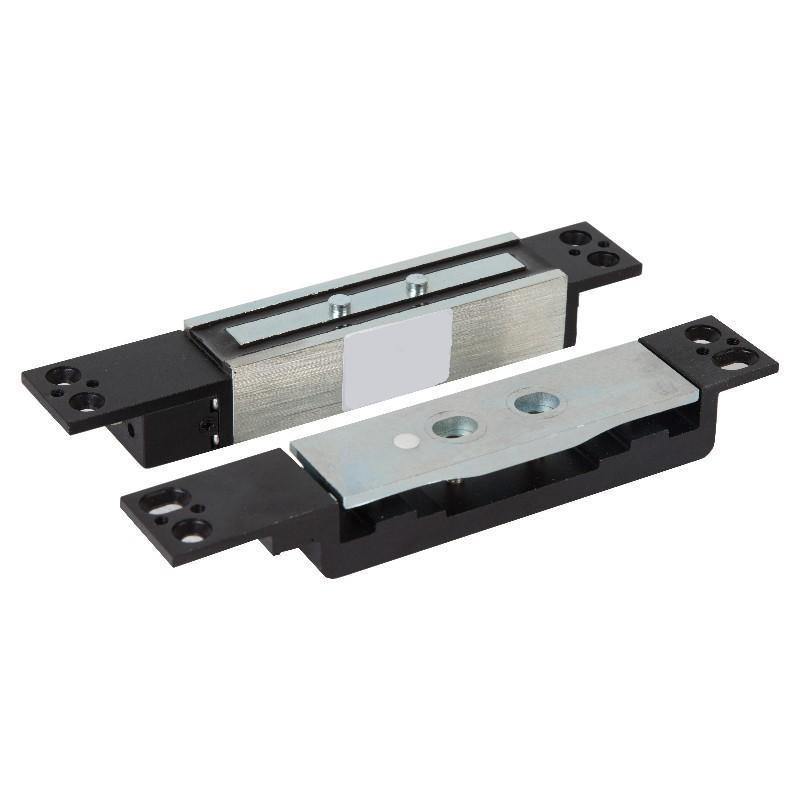

RGL MSL-2600 Shear Lock for Timber and Aluminium Doors
The RGL MSL2600 shear lock is designed to provide secure and consistent door locking, with a maximum shear holding force of 1200kg (2600lbs). It is suitable for use on timber and aluminium doors and is well suited to commercial and industrial environments where reliable access control is required.
Designed for concealed installation, a shear lock offers a more discreet alternative to surface mounted maglocks while supporting a clean, unobtrusive door finish.
Key Product Features:
- Maximum shear force of 1200kg/2600lbs
- Automatic adjusting voltage
- 12V or 24V DC operating voltage
- Operating current: 900mA at 12V or 24V DC
- Holding current: 220mA at 12V DC / 190mA at 24V DC
- Magnetic distance: 3mm @ 12V DC / 5mm @ 24V DC
- Automatic repeated locking (up to 60 times)
- Door position detection outputs
- Horizontal mounting only
- Suitable for timber and aluminium doors
- Fire rated only when fitted with the SH2600 surface housing, sold separately
- Door open delay timer: Adjustable from 0.5 to 25 seconds
- Operating temperature range: 0°C to 90°C
- Monitoring relay: NO and NC contacts (rated 24V/1A)
- Dimensions: 182mm x 25mm x 30mm
RGL Shear Lock with 1200kg Holding Force
The RGL MSL2600 shearlock is designed for doors where a higher level of holding force is required. The 1200kg shear strength helps resist forced opening, while the concealed installation keeps the lock out of sight compared to surface mounted options.
Automatic relocking supports consistent engagement, making it a practical option for commercial buildings, education settings, healthcare environments, and offices.
Shear Lock Operation And Settings
This lock automatically adjusts between 12V and 24V DC so the need to manually select voltage during installation is removed. This simplifies the setup and reduces the risk of errors.
Door position monitoring outputs allow the lock to communicate with the wider access control system, providing status feedback where required. The adjustable door open delay gives control over how long the door remains released after activation, which can help with access flow.
Fire Rated Shear Lock Tested to BS EN 1634-1
The MSL2600 magnetic shear lock has been fire tested to BS EN 1634-1 for use on 30, 60, 90, and 120 minute rated timber and mineral doorsets when installed with the SH2600 surface housing, sold separately.
To comply with fire safety requirements, it must be installed with the SH2600 housing. Always check the fire test evidence for your specific doorset before installation.
RGL Complete Access Control Solutions
RGL offers a wide range of access control components, including power supply units, break glass units, relays, and door traffic lights. These all support the operation and control of electric locking devices such as the MSL2600 shear lock.
Explore the full range to complete your access control setup.
