External Lockable Box for Enerflex Power Supply Units

External IP Rated Enclosure for Enerflex Power Supply Modules

This IP66 external lockable metal enclosure is designed for RGL Enerflex DIN rail power supply units. It provides a secure, weatherproof power supply box for 12V DC or 24V DC switch mode modules and battery backup in exposed access control installations. As the enclosure is lockable, it is equally suitable for internal use such as in communal areas where preventing unauthorised access to your door’s power supply is essential.

Please note that Enerflex power supply modules and batteries are not included.

Key Product Features:

• Two sizes available
• Secured with a key-operated cam lock
• 2 keys
• IP66 rated box with a rubber seal for the lid
• Din rail for fitting RGL Enerflex PSU (not included)
• Tamper switch
• White powder-coated steel enclosure
• Hinged lid
• Mesh back for fixing boards
• 4 cable glands
• Knock out holes

IPBOX-5 Compact IP Rated Power Supply Box

• 1 cam lock
• Fits 1 x 12V 7Ah battery
• Dimensions: 239mm x 264mm x 112mm
• Boxed weight: 2.6kg
• Best suited to small or simpler access control systems, 12V DC power units with battery backup, or 24V DC systems where battery backup is not required.

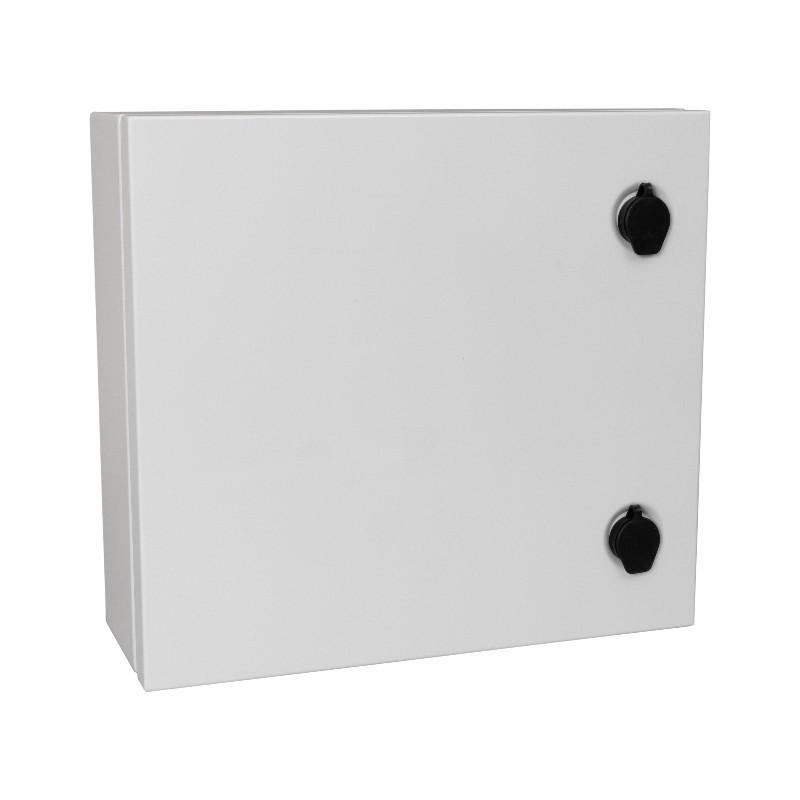

IPBOX-2 Large External IP Rated Access Control Power Supply

• Larger enclosure
• 2 cam locks
• Fits 2 x 12V 7Ah battery
• Dimensions: 338mm x 310mm x 121mm
• Boxed weight: 4kg
• Ideal for 24V DC power modules requiring battery backup, or larger 12V DC systems with multiple boards and relays.

Lockable Power Supply Enclosure

This lockable power supply enclosure offers an IP rated solution for outdoor installations. The IP66 rating keeps Enerflex modules dry for an uninterrupted DC power supply to gates, perimeter doors, and other exposed systems. The lockable design prevents unauthorised interference in exposed outdoor conditions.

As these IP rated metal enclosures are lockable, they are also well suited for internal areas where preventing unauthorised access to your door’s power supply is important. Only authorised users hold the keys, offering additional protection for power supplies installed in communal spaces.

Compatible with RGL Enerflex DC Power Supply Units

These enclosures are designed for RGL Enerflex 12V DC and 24V DC power modules. The DIN rail inside these lockable power supply unit enclosures enables quick installation and secure mounting of RGL DIN rail power supply modules.

Enerflex technology delivers up to 92% efficiency, and modules are available in a range of amp outputs to support different access control loads. The DIN mountable design and choice of voltage and amp make this RGL modular range flexible for future upgrades, allowing your system to expand without replacing the external box enclosure.

RGL also offer the ACCESS-12 range, designed to simplify board management with magnetic stand-offs for easy repositioning and cable management for a neat, organised installation. Visit our complete range of power supply units and batteries to explore the options.

Pair With External Access Control Devices

We offer a wide range of components to complement this lockable access control power supply enclosure, including:

• Vandal resistant keypads, such as the KP50, for secure entry in vulnerable, exposed, or high-traffic areas
• External gate maglocks and brackets, including the EXML600 and EXML1200, provide reliable locking for gates
• Push to Open and Gate Release exit buttons

Pairing these IP rated external metal boxes with vandal resistant and weatherproof devices makes sure your entire access control system remains secure and suitable for outdoor use.

Explore our stocked range of access control solutions or contact our technical team for guidance.
