Briton 2720BD.T.S.SES Door Closer | Cam Action | EN 2-5

The Briton 2720 Door Closer Providing Style, Safety, and Accessibility

The Briton 2700 series door closer is ideal for fire rated doors in public spaces, delivering functionality, accessibility, and style.  Featuring cam action technology, it ensures low resistance operation, making it user friendly for people of all abilities.

Its softline cover and slide channel arm offer a modern aesthetic without compromising performance or durability. The Briton door closer is versatile, offering an adjustable power size range of EN 2-5, when installed Fig. 1 pull side or EN 2-4 if fitted Fig. 61 transom mounted.

Tested to BS EN 1154, UKCA marked, and Certifire Approved, this cam action door closer guarantees compliance for fire rated doors.

Key Product Features:

• Fig. 1 pull side mounting

          Adjustable EN 2-5 power size
          Suitable for doors up to 1250mm wide and 100kg

• Fig. 61 transom mounting on push side

          Adjustable EN 2-4 power size
          Suitable for doors up to 1110mm wide

• Cam action design provides easy operation
• Assist with meeting BS8300 requirements for use on accessibility
• Tested to BS EN 1154
• UKCA marked (1121-CPR-UK-AD7603)
• CE marked (2812-CPR-AD0264)
• Certifire Approved (CF738)
• Fire tested to EN 1634-1
• Suitable for FD120 timber doors
• Suitable for FD60 steel doors when fitted to fire risk face only

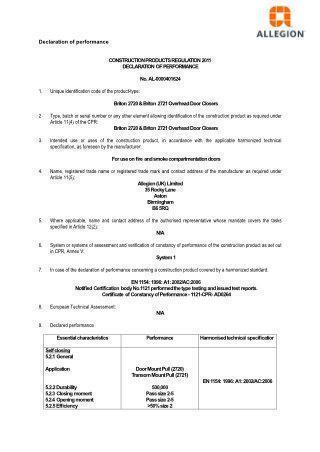

• Environmental Product Declaration in accordance with ISO 14025 and EN 15804
• Adjustable closing speed
• Adjustable backcheck (helps prevent door damage)
• Adjustable delayed action*
• Silver finish**
• Softline cover with push and click design
• No visible fixings
• Body dimensions: 289mm x 70mm x 57mm
• Arm dimensions: 443mm x 20mm

*The delayed action function is not suitable for use when this door closer is installed in the Fig. 61 configuration.

**This door closer is available in other finishes as a special order so please contact our sales team to enquire.

Designed for Modern Spaces

Modern environments require more than just functionality. They demand solutions that integrate into their surroundings while providing exceptional performance. The Briton 2700 door closer features a guide rail arm, a discreet and stylish alternative to traditional and bulkier scissor arms.

The softline cover provides a modern aesthetic by softening the harsh edges typically seen in square covers, making it an excellent choice for enhancing your building’s overall style. Additionally, the design features concealed fixings, creating a cleaner, more polished appearance.

This Briton closer is ideal for contemporary interiors, including offices, hotels, and restaurants, where both practicality and aesthetics are key.

Accessibility Meets Functionality

Beyond its visual appeal, the cam action mechanism of this overhead door closer offers a smoother and more user friendly experience compared to conventional rack and pinion mechanisms. The low resistance opening makes it particularly well suited for environments prioritising accessibility, such as schools, healthcare facilities, and other public buildings. Combining ease of use with elegant design, this Briton cam action door closer is a versatile and reliable choice for modern facilities.

Simplified Installation for Professionals

The installation process for the Briton 2720BD.T.S.SES has been streamlined to save time and minimise errors. Its unique Accufit self-adhesive template ensures precise positioning, while dowel fixings on the mounting plate make installation easy. This thoughtful design reduces the margin for installation errors, making it a preferred choice. Adding to the convenience, the clip-on softline cover conceals all fixings, creating a professional finish.

Prioritising Fire Safety and Compliance

Fire safety is non-negotiable, and the Briton 2720 BD.T.S.SES meets the highest standards to ensure peace of mind. Certified to EN 1634-1 and Certifire Approved, it’s suitable for use on 120 minute rated timber doors and 60 minute rated steel doors. This makes it a reliable choice for fire rated doors, helping to contain fire and smoke in an emergency.

Pair this door closer with our intumescent solutions and fire rated hardware for a comprehensive safety strategy. Browse our complete range of fire door ironmongery for a compliant fire door.

Explore the Versatility of the Briton Range

Briton offers a wide range of door closers to suit every door and facility. Whether it’s the Briton 121, perfect for low traffic doors, the Briton 2130B with an adjustable power size range of EN 2-6, or the Briton 996 series featuring electromagnetic hold open and swing free functionality, there’s a solution for every need.

Discover more about the Briton range or contact our expert team for personalised guidance. Whether it’s for standard applications or specialised requirements, we have the solutions you need.
